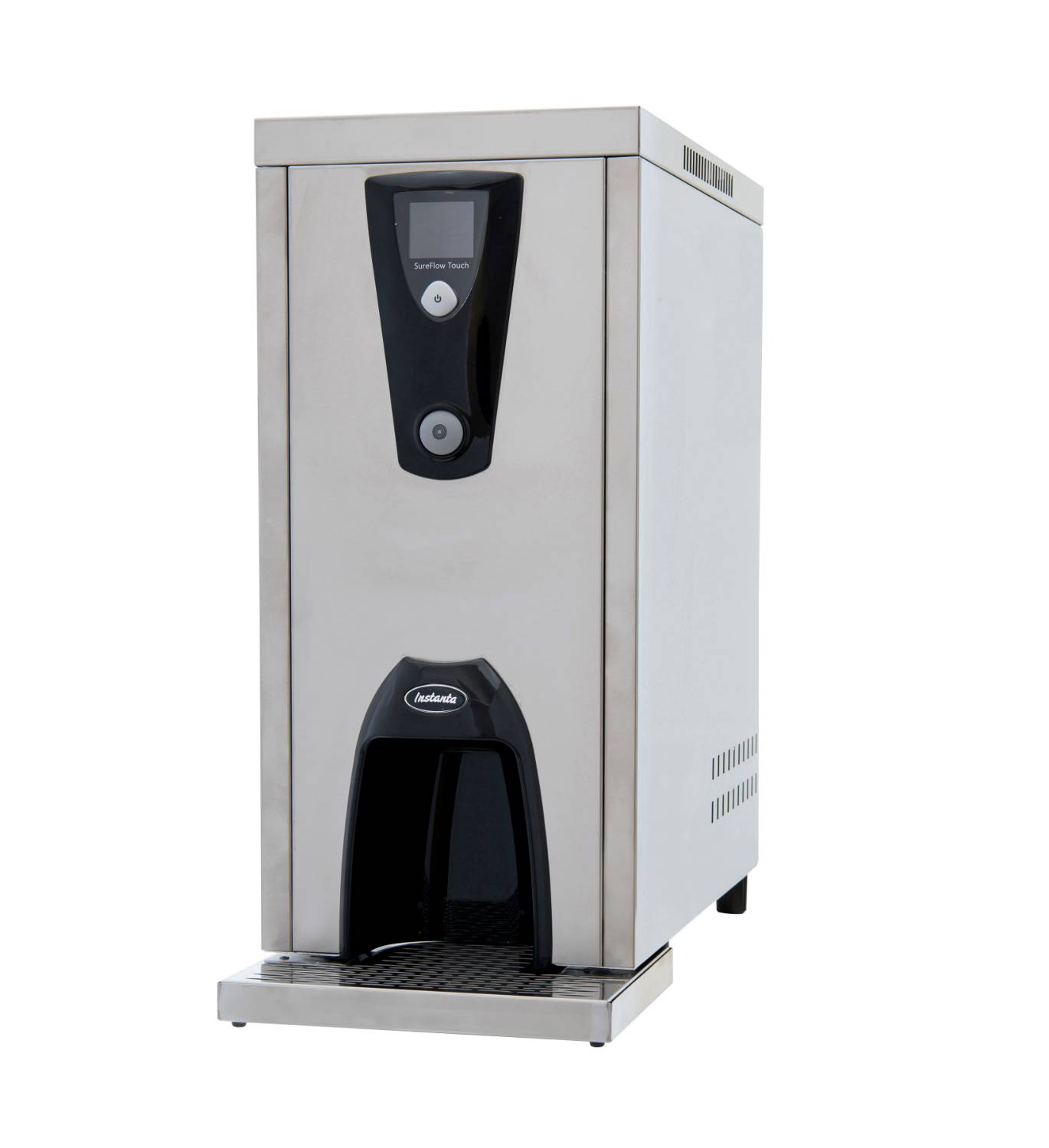

Instanta Sureflow Touch Countertop - Water Dispenser

Verified by manufacturer today

Zip Water Product certifications:
  • NSF International

    NSF International

    Certificate type

Self-service boiling water, 10 L capacity, with push button.

Jump to:
+44 (0)345 6 005 005 Website

Application

Suitable for commercial applications in catering environments.

Description

SureFlow Touch Counter top water boiler with push button.


Features and benefits:

  • Choice of water dispense: either standard push and hold (on demand) or, if preferred, programmable timed dispense.
  • Top-up feature allows the user to top-up the drink following a measured dispense - perfect if filling taller cups.
  • Quick and easy programmable measured water delivery function for the perfect cup every time.
  •  A prominent safety message flashes whenever hot water is dispensed to ensure user safety.
  • Electrical mains cord and water inlet coupling are underneath the boiler to provide a choice of service connections from under counter or counter top.
  • Stainless steel drip tray is included.
  • Dual safety protection against overfilling and boil dry to ensure user safety.
  • Long-life Incoloy® elements to guarantee longevity.
  • Easy access for service and cleaning guarantees convenience.

General information

Color

Grey

Finish

Satin

Brushed

Polished

Material

Steel

Stainless steel

Shape

Rectangle

Length

240 mm

Guidance for specification option:

(Depth.)

Width

522 mm

Height

545 mm

Warranty description

Two year

Guidance for specification option:

Parts and labour.

Uniclass

Pr_40_70_23_42 Instant boiling and cold water tapsPrimary

CAWS

N12/380 Sinks, taps, traps and wastes

N12/380 Sinks, taps, traps and wastes

SKU Code

CTS10PB

Product range

Counter Top Water Boiler and Chiller

Specification data - Instant boiling and cold water taps

Third-party certification

EMC tested and certified (EN 55014 and EN 61000).

Guidance for specification option:

  • Electrical Safety Tested - self-certified to BS standard EN 60335-1 and 2.
  • WRAS approved

Water

Boiling.

Duty

-

Tank capacity

10 L.

Dimensions

240 x 522 x 545 mm.

Guidance for specification option:

  • Packed dimensions: 735 x 570 x 340.
  • Vessel clearance (cup recess): 136 mm.

Manufacturer guidance

(height x width x depth) Unit (depth includes drip-tray):

Electrical connection

-

Power

3 kW.

Guidance for specification option:

Electrical supply: Single-phase, N & E (13 A).

Electrical installation: UK standard 3-pin.

Fitted cable length: 1.6 m.

Voltage

230 V.

Guidance for specification option:

(50-60 Hz.)

Water inlet

3/4" BSP.

Safety features

Over-boil and boil-dry protection.

Guidance for specification option:

Also features early warning lime-scale diagnostics (via LCD).

Components

Tank-baffle plates.

Guidance for specification option:

Unique design aids heat recovery and reduces steam emissions to atmosphere.

Weight

12.3 kg (empty); 26.5 kg (full).

Guidance for specification option:

Packed weight: 15.3 kg.

WaterPressureRange

2–7 bar.

Guidance for specification option:


(28psi – 100psi)

Overflow

Front (via drip-tray).

Rear (1/2" BSP - 15 mm).

Construction

Manufacturer’s standard.

Guidance for specification option:

  • Outer fabrication (body) construction: 304 grade Stainless Steel (super-brush satin polish).
  • Tank construction: 304 and 316 grade stainless steel.
  • Tank wall thickness: 0.9 mm.
  • Drip-tray: 304 grade stainless steel.

Performance:

Manufacturer’s standard.

Guidance for specification option:

  • Water temperature delivered: 96°C (default) – can be adjusted if required.
  • Heat up time to working temperature: 29 minutes (full tank capacity).
  • Output per hour (at default temperature setting): 27 L (higher output/ hour if set at lower temperature).
  • Rapid draw-off: 10 L.
  • Recovery per minute: 0.5 L.
  • Stand-by power loss (idle mode): 0.08 kW/h.


Other features

Standard on-demand or timed dispense.

Guidance for specification option:

Top-up drink feature when in timed dispense mode.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Product certifications

NSF International

NSF International

NSF REG 4

Literature

Instanta Commercial Product Guide January 2024

Instanta Commercial Product Guide January 2024
