Integrated Design Hoods 90 cm and 60 cm

Verified by manufacturer 5 months ago

iQ500, Integrated Design Hood, 90 cm, clear glass black printed LJ97BAM60B

Siemens Home Appliances Variant:

Seamlessly integrated design hoods for maximum use of storage space in kitchen cupboards.

Jump to:
BOS
0344 8929021 Website

Application

  • For domestic applications.
  • Suitable for ducted and re-circulating operation.

Description

Integrated design hoods in 90 or 60 cm, clear glass black printed.


Features and benefits:

  • Intensive setting revert - peak performance when steam escapes, and an automatic revert after a few minutes.
  • Storage space - store up to 10 kg on each side of the hood.
  • touchControl Plus - easy control of the program settings and light functions.
  • LED lights: for optimal visibility and ambience while cooking.
  • Fast-acting extraction for sudden bursts of steam - intensive setting.


Models:

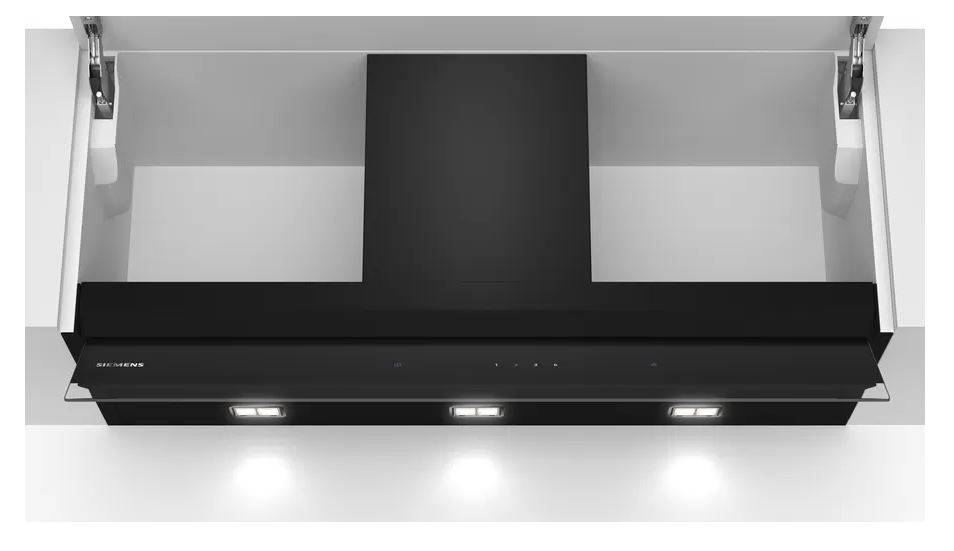

  • LJ97BAM60B/ LJ67BAM60B: 90 or 60 cm, flush integrated design with fold out glass panel, storage champion - 10 kg storage each side of the chimney on the hood, rubber matts for protection and safe storage. LED lighting - automatic on opening glass, three speed + one intensive, touch control, black body and grease filters. Optional Recirculating kit: LZ16IBI14.

General information

Color

Black

Material

Glass

Shape

Rectangle

Length

298 mm

Width

897 mm

597 mm

Height

340 mm

Warranty description

Two year

Uniclass

Pr_60_65_94_46 Kitchen extractor hoodsPrimary

CAWS

N11/360 Appliances

N11/40 Appliances

Specification data - Kitchen extractor hoods

Standards

-

Performance testing

To BS EN IEC 61591.

Operation

Extraction.

Recirculation.

Guidance for specification option:

For recirculated extraction various recirculation kits are

available as optional accessories.

Installation

Integrated into wall unit.

Material and finish

Brushed stainless steel.

Dimensions

-

Width (maximum)

897 mm.

Depth (maximum)

298 mm.

Height

340 mm.

Capacity (minimum)

460 m³/h (air extraction); 451 m³/h (recirculating air).

Guidance for specification option:

  • Maximum output air extraction : 460 m³/h.
  • Boost position output recirculating : 652 m³/h.
  • Maximum output recirculating air : 451 m³/h.
  • Boost position air extraction : 749 m³/h.

Controls

Electronic three-speed.

Guidance for specification option:

Type of control : Electronic.

Number of speed settings : three stages + intensive setting.

Features

Electronic control via touchControl, three power levels plus intensive setting, softLight with dimmer function, three 2 W LED lights, colour temperature: 3500 K, light intensity: 517 lux, automatic intensive revert, automatic intensive revert (6 mins), steel filter cover, two metal grease filter cassettes, easy to clean smooth surfaces and materials.

Rating

0.259 kW.

Electrical supply

220–240 V.

Noise level at 1 m (maximum)

63 dB(A) (air extraction); 67 dB(A) (recirculating air).

Accessories

Not required.

LZ16IBI14: Clean air standard recirculation kit.

LZ16IBB14: Spare part.

LZ11IXC16: Clean air plus recirculation kit external.

LZ11IXB16: Clean air plus odor filter (replacement).

LZ11ITD11: Long life recirculation kit external.

LZ11IBN61: Spare part.

LZ10ITP00: Long life odor filter (replacement).

Frequency

50 Hz.

Cable length

130 cm.

Manufacturer guidance

Length electrical supply cord.

Energy rating

B.

Operating

Convertible.
