Integrated Hood

Name: Integrated Hood
Brand: Siemens Home Appliances
SKU: uRfXKwMFjfYMbwsP36WXau

Verified by manufacturer 1 month ago

Siemens Home Appliances

Fold-out integrated hood with a high extraction rate for powerful performance is hidden in the upper cabinet unit.

Jump to:

BOS

0344 8929021 Website

Application

For domestic applications.
Suitable for ducted and re-circulating operation.

Description

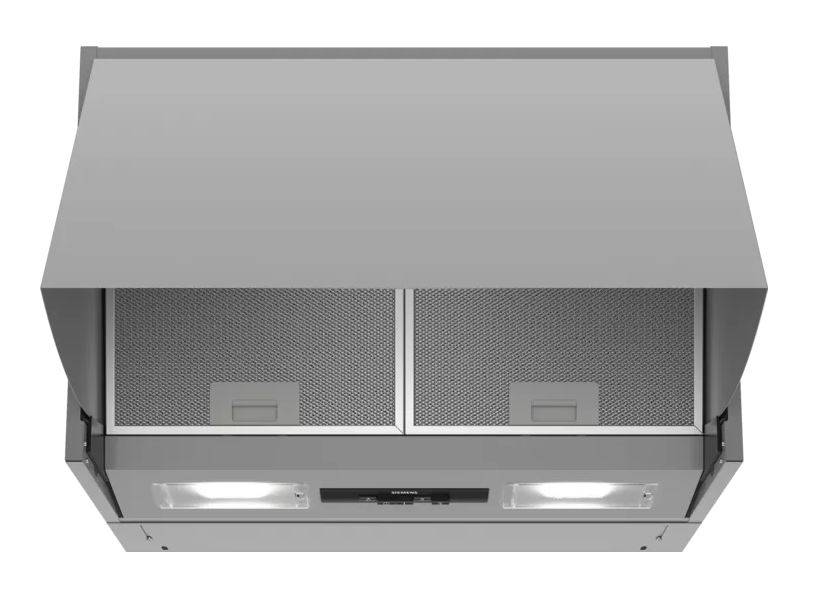

Integrated cooker hood, 60 cm in silver.

Features and benefits:

LED lights: for optimal visibility and ambience while cooking.
High extraction rate for powerful performance.
Push button control for extractor speeds and light.

Models:

LE66MAC00B: 60 cm, three speeds, LED lights, high extraction rate. Optional standard recirculation Filter: LZ10IMA00.

General information

Color	Silver
Material	Metal
Shape	Rectangle
Length	271 mm
Width	599 mm
Height	402 mm
Warranty description	Two year

Uniclass	Pr_60_65_94_46 Kitchen extractor hoodsPrimary
CAWS	N11/360 Appliances N11/40 Appliances

Specification data - Kitchen extractor hoods

Standards	-
Performance testing	To EN 60704-3 and EN 60704-2.
Operation	Extraction. Recirculation. Guidance for specification option: For recirculated extraction various recirculation kits are available as optional accessories.
Installation	Integrated into wall unit.
Material and finish	Silver metallic.
Dimensions	-
Width (maximum)	599 mm.
Depth (maximum)	271 mm.
Height	402 mm.
Capacity (minimum)	625 m³/h (air extraction); 416 m³/h (recirculating air).
Controls	Mechanical three-speed.
Features	Push button control for extractor speeds and light, three power levels, two 3 W LED, two metal grease filter cassettes.
Rating	0.256 kW.
Electrical supply	220–240 V.
Noise level at 1 m (maximum)	70 dB(A) (air extraction); 70 dB(A) (recirculating air).
Accessories	Not required. LZ10IMA00: Standard odor filter.

Frequency	50; 60 Hz.
Fuse rating	10 A.
Cable length	150 cm. Manufacturer guidance Length electrical supply cord.
Energy rating	B.
Operating	Convertible.

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1

Literature

iQ100, Integrated cooker hood, 60 cm, Silver LE66MAC00B
