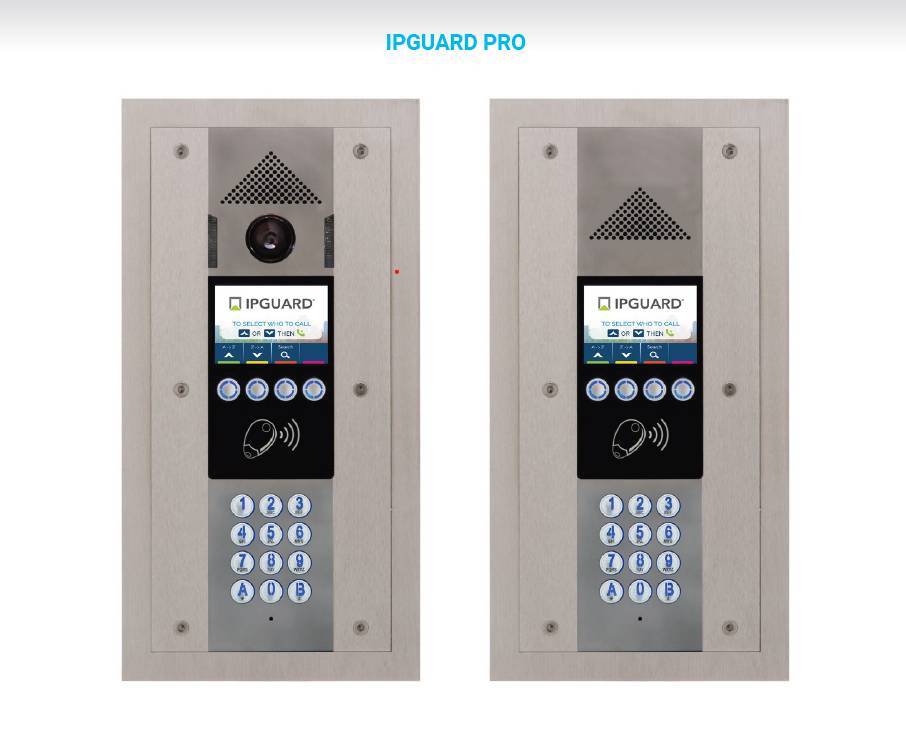

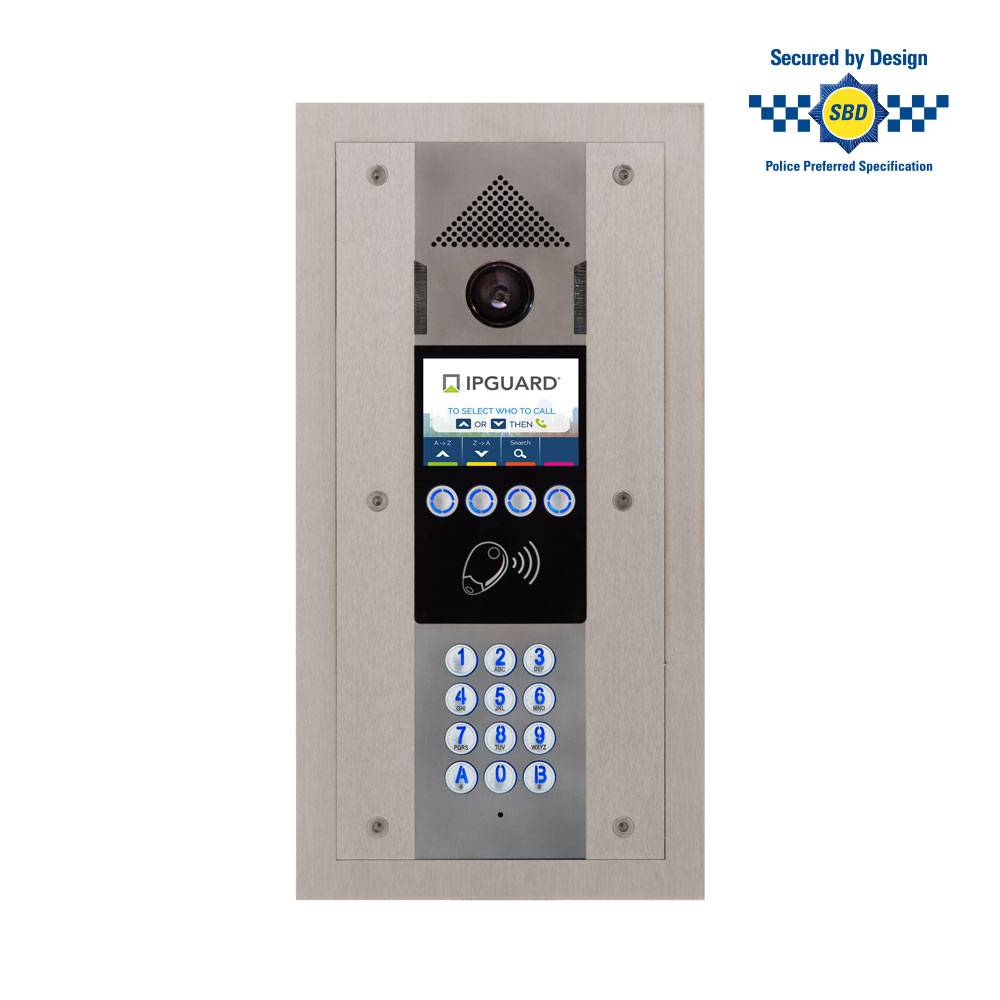

IPGUARD PRO - VIDEO Door Entry & CLOUD Access Control System

Verified by manufacturer 2 months ago

IP Door Entry Ltd Third party certifications:
  • Secured By Design

    Secured By Design

    Certificate type

The IPGUARD PRO 4G/GSM/IP wireless smart visitor VIDEO door entry and CLOUD access control system calls directly through to residents’ smart devices, tablets, or landlines via the GSM/4G networks.

Jump to:
+44 08000 156 496 Website

Application

IPGUARD is smart 4G/IP/GSM technology. It works with every communications platform. It is used in every building development type.

Description

IPGUARD 4G/IP/GSM smart visitor door entry is suitable for any application whether commercial, industrial or residential. Fully DDA compliant, 3000 directory capacity, integral proximity and keypad access control, and remotely programmable via BATICONNECT CLOUD. Live audio and video to any and all smart devices. No cabling required to flats, no proprietary equipment to purchase and maintain.


The IPGUARD incorporates the latest GSM technology, allowing residents to be called from anywhere in the world.


Features and benefits:

  • Create, modify or delete – tenants fobs, master fobs, code access, residents contact details in real time, remotely. No need to visit the site.
  • Manage building access on the free and secure cloud portal from a pc, mac, tablet or any web enabled device.
  • Create custom access profiles to compartmentalise the buildings with the option of access based on week types and time periods.
  • SR2 Rated and Secured by Design (SBD) accredited.
  • Remotely communicate with tenants using BATICONNECT’s SMS Service. Send SMS messages directly to the resident’s devices.
  • Snapshot picture of all visitor calls to the flat is sent to the resident's app for security log purposes.
  • Mobile access, open the door via the app at any time (management can turn this feature on or off or specify who can use it).
  • No cabling required to apartments/flats.
  • No software needed.
  • Anti-clone protection. The system recognises clones and won’t let them in.
  • Free and unlimited updates included.
  • No visible camera or security fixings on the panels.
  • Simple and cost-effective installation.
  • Equality Act 2010 (DDA) compliant.
  • Welcome screen on IPGUARD is customisable, add logo/block name/address on the 2.9” LCD colour screen.
  • Family sharing feature with the possibility of connecting more than six devices.
  • Option to install a tablet dedicated to the system with verification via email (can be fixed to the wall if residents would like, also wireless but cost-effective).
  • Anti-vandal proximity reader, illuminated.


General information

Color

Silver

Gold

Finish

Brushed

Material

Stainless steel

Shape

Rectangle

Width

160 mm

Height

350 mm

Warranty description

Two year

Uniclass

Pr_75_30_30_57 Multiple-technology readersPrimary
Pr_75_30_30_67 Proximity card readers
Ss_75_40_02_05 Audio intercom systems
Pr_75_30_30_03 Access control units
Pr_75_30_30_42 Intercom entrance panels
Ss_75_40_02_11 Card access control systems

CAWS

W90/130 Electronic access control system

W90/130 Electronic access control systems

W90/363 Access control units

W90/365 Intercom entrance panels

W90/365 Intercom entrance panels

Specification data - Multiple-technology readers

Security grading

To BS EN 60839-11-1, Grade 1.

Material and finish

Brushed anodised aluminium.

Colour

Silver.

Champagne.

Matt black.

Impact protection (minimum)

IK09.

Communication interface

RS-485.

GSM.

4G.

CLOUD.

Integral keypad

Large 15.6 mm diameter raised illuminated buttons, braille embossed.

Mounting position

Flush.

Surface.

Visual indication

TFT colour 2.9“ and illuminated LED.

Audio status indication

Audio que.

Ingress protection

IP54.

Third party certifications

Secured By Design

Secured By Design

SBD Member Cert Y1 - IP Door Entry Ltd
