IPVIEW - Door Entry & Access Control System

Verified by manufacturer 22 days ago

IP Door Entry Ltd Third party certifications:
  • Secured By Design

    Secured By Design

    Certificate type

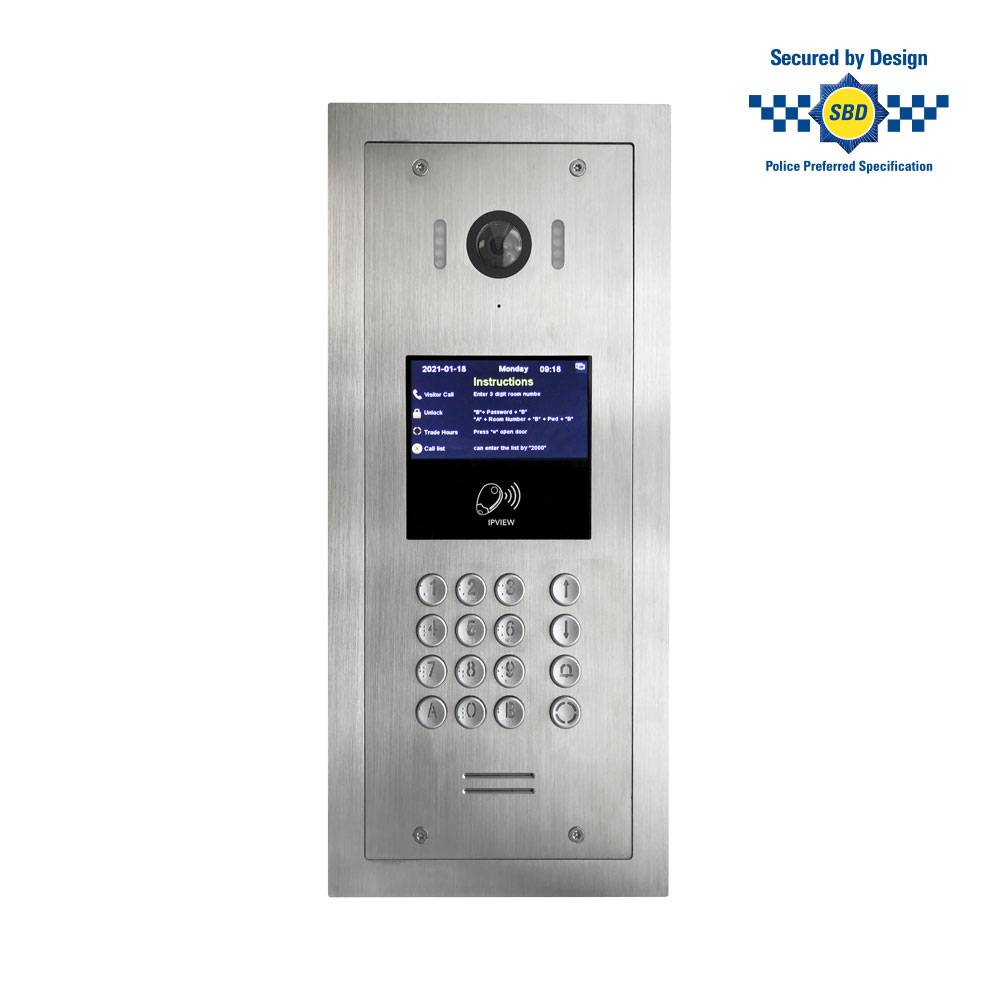

IPVIEW (Stainless Steel) smart visitor video door entry range, hardwired full IP/PoE multi-block system with a range of integration.

Jump to:
+44 08000 156 496 Website

Application

Suitable for residential and commercial use.

Description

IPVIEW smart video door entry and access control system with full Internet Protocol/ Power-over-Ethernet (IP/PoE) panel, cloud proximity reader, display LEDs, 12 large illuminated Braille button keypad, and voice- and visual-prompt messages.

Real-time BATICONNECT CLOUD access control management (www.baticonnect.com).


Features and benefits:

  • High-definition wide angle night vision camera.
  • LCD colour screen.
  • Anti-vandal proximity reader, illuminated.
  • Remotely programmable.
  • Robust stainless-steel facia.
  • Mobile access via smart app.
  • Visitor and resident floor specific lift access control.
  • Concierge functions.
  • Plug and play installation.
  • Security monitoring.
  • Integration with CCTV.
  • Multi-block functionality.
  • Equality Act 2010 (DDA) compliant.
  • Eight inputs for integration to monitors (Smart Homes).
  • Wi-Fi enabled handsets so that residents can connect their mobile devices to the system and receive visitor calls from anywhere.
  • Two-way communication between visitors and residents, resident to resident and resident to the concierge.
  • Full event and audit trial.
  • Integration with CLOUD access control.
  • Facial recognition and QR codes.
  • Up to eight extensions per flat.
  • Multi-language options.
  • Door status monitoring.
  • No IP controllers required.
  • SR2 and SBD accredited.
  • Multi-block integration.
  • Optional lift integration module.
  • Touchscreen version also available (specified separately).

General information

Color

Silver

Finish

Brushed

Material

Steel

Stainless steel

Shape

Rectangle

Length

369 mm

Width

143 mm

Height

45 mm

Warranty description

Two year

Uniclass

Pr_75_30_30_57 Multiple-technology readersPrimary
Ss_75_40_02_05 Audio intercom systems
Pr_75_30_30_03 Access control units
Pr_75_30_30_42 Intercom entrance panels
Pr_75_30_30_43 Intercom remote handsets
Ss_75_40_02_11 Card access control systems
Pr_75_30_30_67 Proximity card readers

CAWS

W90/130 Electronic access control system

W90/130 Electronic access control systems

W90/363 Access control units

W90/365 Intercom entrance panels

W90/365 Intercom entrance panels

Specification data - Multiple-technology readers

Security grading

To BS EN 60839-11-1, Grade 1.

Material and finish

Brushed stainless steel.

Colour

Silver.

Impact protection (minimum)

IK09.

Communication interface

PoE/IP.

Guidance for specification option:

Power-over-Ethernet/ Internet Protocol.

Integral keypad

12 large, illuminated, Braille button keypad.

Mounting position

Recessed.

Surface.

Visual indication

TFT colour screen and illuminated LED.

Guidance for specification option:

Dimensions (100mm x 55mm).

Audio status indication

Audio que.

Ingress protection

IP67.

Flammability

UL94V0.

Third party certifications

Secured By Design

Secured By Design

SBD Member Cert Y1 - IP Door Entry Ltd

Literature

IPDE BATICONNECT CLOUD Remote Management

IPDE BATICONNECT CLOUD Remote Management

IPVIEW IP/PoE Specification

IPVIEW IP/PoE Specification

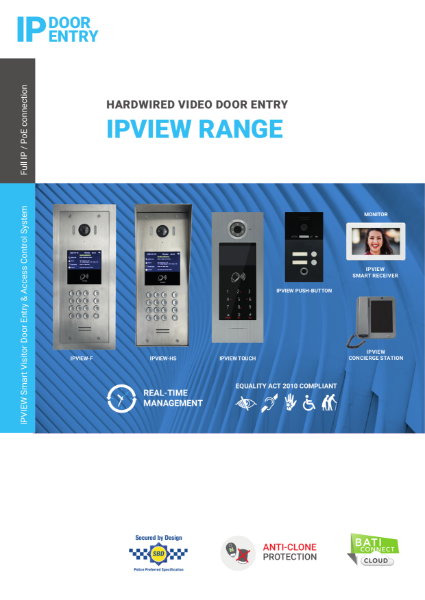

IPVIEW Hardwired IP/PoE Video Door Entry & Access Control

IPVIEW Hardwired IP/PoE Video Door Entry & Access Control

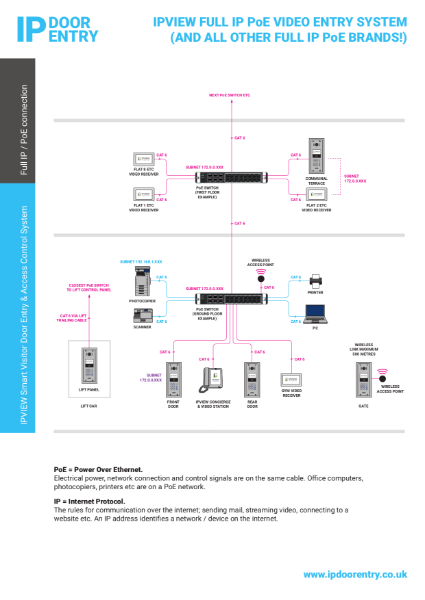

IPDE IPVIEW Full IP PoE Video Entry System visualization

IPDE IPVIEW Full IP PoE Video Entry System visualization

Case studies

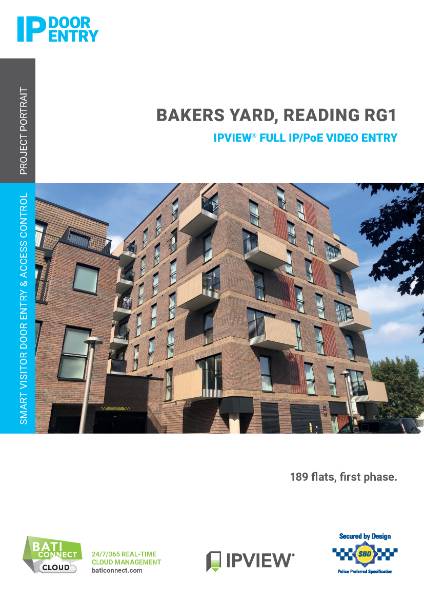

IPVIEW Bakers Yard, Reading Case Study

IPVIEW Bakers Yard, Reading Case Study

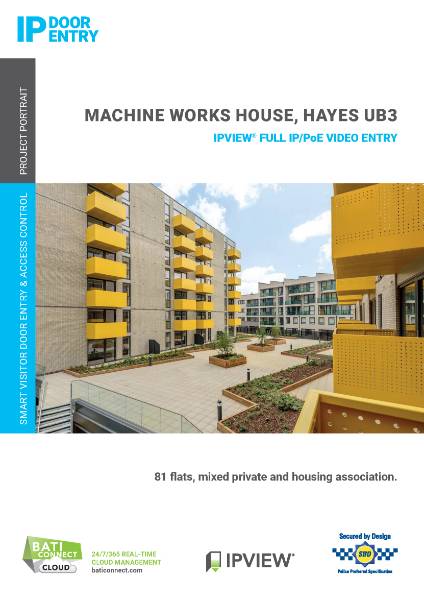

IPVIEW Machine Works House

IPVIEW Machine Works House
