Application

Suited for the sealing of both internal and external window and door elements in metal, window and facade constructions.

Description

A humidity variable special foil for the inner and outer sealing of windows and façade connecting joints. The foil reacts to the different seasonal temperature gradients by variably adapting its sd-value, achieving a high drying effect in the joint all year round. It complies with the requirements of EnEV (energy saving regulations) concerning the airtightness of the building envelope and the recommendations of the RAL quality assurance association for windows and doors in the 'Installation guide'.


Features and benefits:

  • One product for internal and external sealing (avoids application mistakes, makes purchasing and storage easier).
  • High drying effect in the joint thanks to humidity regulating functional mechanism (variable sd-value).
  • Resistant to driving rain up to more than 1050 Pa.
  • High tear resistance.
  • Up to one-year UV light stability in any weather conditions.
  • Special fleece surface, easy to plaster and glue over.
  • Self-adhesive strips for efficient application.
  • Complies with EnEV requirements and the recommendations of the RAL 'Installation guide'.
  • Ten-year function warranty.

General information

Color

Black

Material

Foil

Guidance for specification option:

Polymer fleece foil.

Warranty description

Ten year

Uniclass

Pr_35_90_87_10 Butyl rubber fleece tapesPrimary

CAWS

L10/75 Sealant joints

L10/810 Sealant joints

L20/80 Sealant joints

L20/820 Sealant joints

Product range

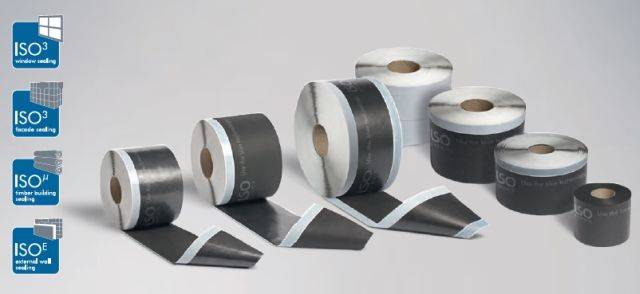

Window and Façade Sealing Films

Specification data - Butyl rubber fleece tapes

Material

Polymer fleece foil.

Colour

Black.

Width

Guidance for specification option:

Insert requirement, available 70–600 mm dependent on finish.

Adhesive

None.

Complete.

Guidance for specification option:

Full surface adhesive finish with a two or three-way split liner.

SK foil.

Guidance for specification option:

Self-adhesive acrylic strip on the smooth foil side.

SK fleece.

Guidance for specification option:

Self-adhesive acrylic strip on the textured fleece side.

BT foil.

Guidance for specification option:

Self-adhesive butyl strip on the smooth foil side.
