Isosonic Screed Plank

Verified by manufacturer 1 month ago

Thermal Economics Ltd

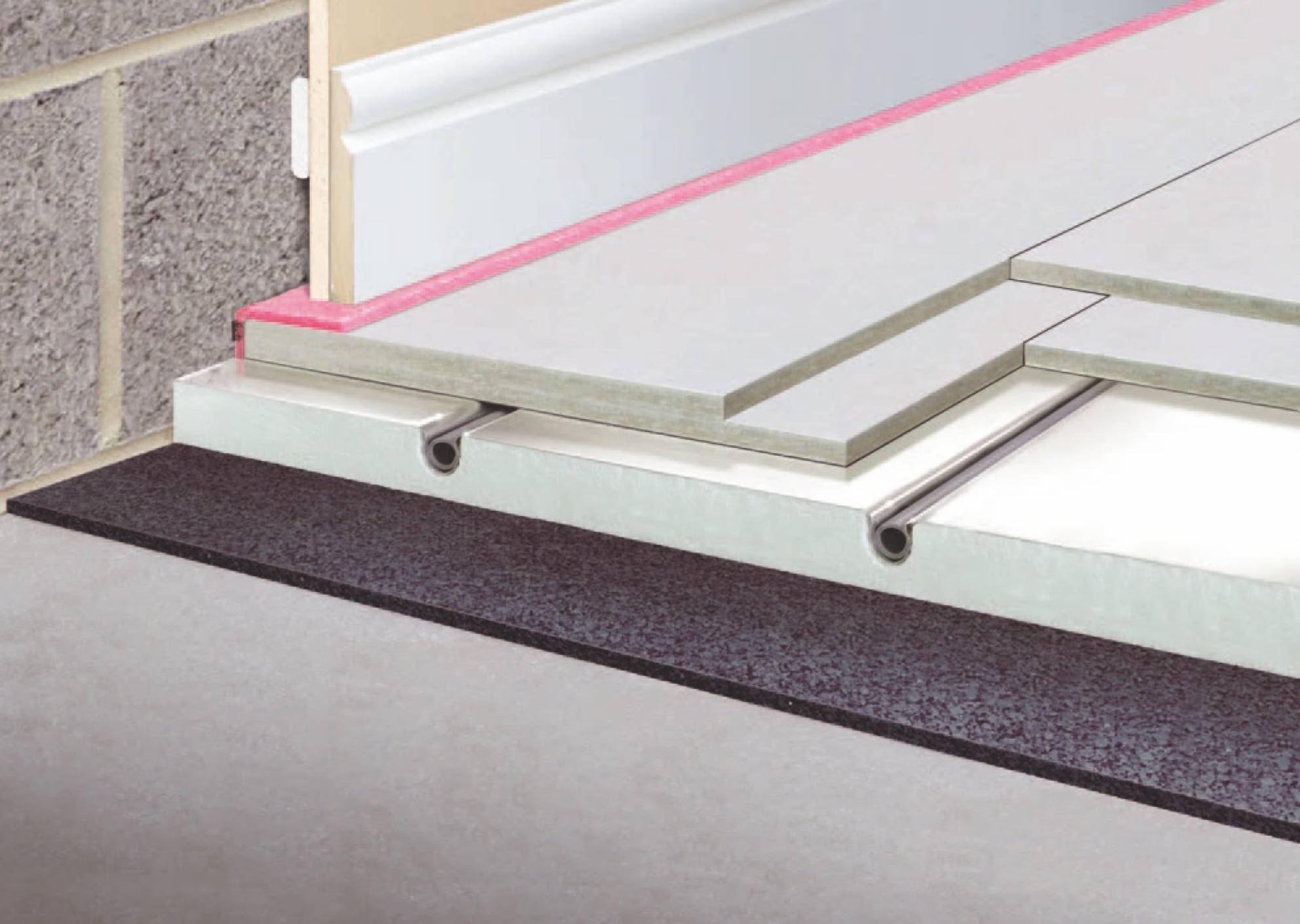

A dry installation screed plank floor system with high acoustic performance and shallow build depth.

Jump to:
+44 (0)1582 450814 Website

Application

  • For use in lightweight floors in new build and refurbishment applications.
  • Suitable for use over structural decks including precast plank, steel composite, beam and block and in situ concrete.
  • Suitable for use over the structural deck in all types of joisted floors including timber and steel joists, timber i-beam, and steel web joists.

Description

Isosonic Screed Plank is a high mass fibreboard with 50 mm step joint edges. It is suitable for increasing the mass of floor structures to help achieve Approved Document Part E compliance.


Features and benefits:

  • Hard and robust cementitious gypsum plank with high density and mass.
  • Suitable for use with underfloor heating - low thermal resistance and even heat distribution.
  • Suitable for use as a floating floor 'dry screed' - saving on construction time and screed pumping.
  • Provides a stable and water-resistant surface.
  • Lip/lap joints for quick and simple installation.

General information

Color

Grey

Material

Gypsum

Shape

Rectangle

Length

1500 mm

Width

500 mm

Height

20 mm

Uniclass

Pr_25_71_35_30 Fibre-reinforced gypsum floor boardsPrimary

CAWS

K11/60 Board

K11/295 Floating floor system

K11/275 Acoustic separating floor system

Specification data - Fibre-reinforced gypsum floor boards

Declaration of conformity

Declaration of Performance (DoP) and UKCA marked.

Thickness

20 mm.

Edges

Step joint.

Density

1200 kg/m³.

Sustainability data

Contains Red List materials

No

Literature

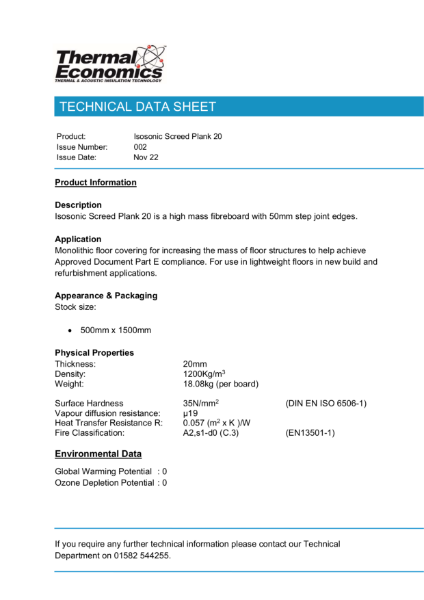

Isosonic Screed Plank 20 Technical Data Sheet

Isosonic Screed Plank 20 Technical Data Sheet

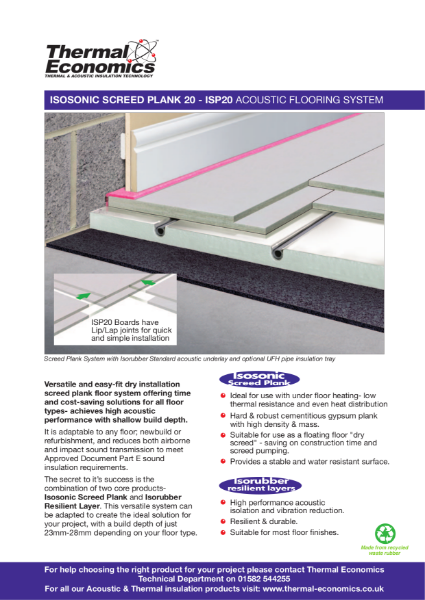

Isosonic Screed Plank Brochure

Isosonic Screed Plank Brochure

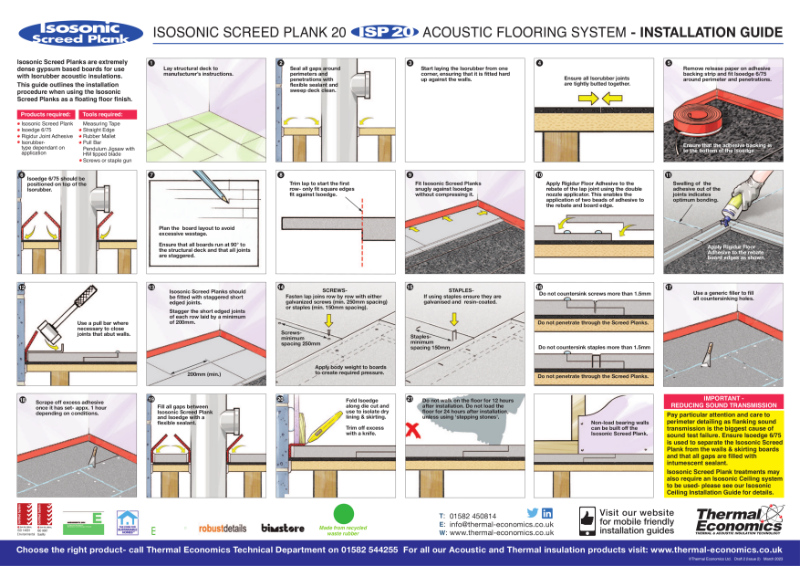

Isosonic Screed Plank Install Guide

Isosonic Screed Plank Install Guide
