J-Drain Gratings For J-Drain, Drain Element - Drain Cover
Verified by manufacturer 5 months ago
6000260 - Stainless Steel 600 mm
6000260 - Stainless Steel 600 mm

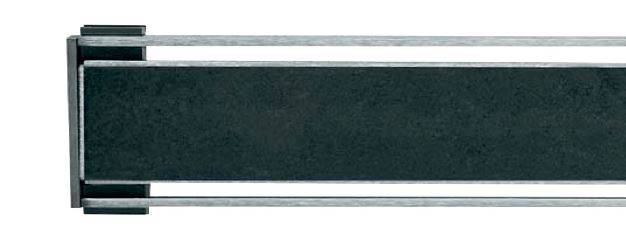

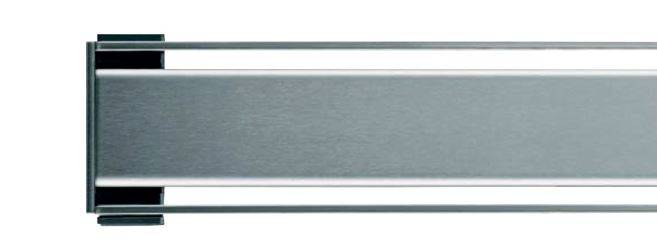

Stainless steel drain cover.
Application
The J-Drain is suitable for all floor substrates.
- The J-Drain shower tray system must be fully supported
- The J-Drain sloping boards are bonded down with a C2 cement based flexible tile adhesive
- Sloping boards can be cut, repaired, and trimmed. Please contact our technical department for more information
- Suitable for wheelchair access when tiled
- To be installed with JACKOBOARD® 2K tray sealing kit
- Not suitable for vinyl floor applications.
Description
The J-Drain shower tray system consists of three elements, the drain, the channel cover and the sloping board. This three-part system makes it a true solution for timber floor linear wet rooms.
Features and benefits:
- Height and depth adjustable.
- Choice of drain finishes.
- Different colours available on request.
- Horizontal waste outlet.
- Easy access to drains for cleaning.
- Stainless steel and reversible tileable drain cover as standard.
- Available in several length options.
General information
Color | Silver Black |
Finish | Brushed Matt |
Material | Stainless steel |
Shape | Rectangle |
Length | 600 mm 700 mm 800 mm 900 mm 1000 mm |
Width | 63 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/377 Wet room showers R11/5 Floor drains N13/40 Shower units R11/315 Floor drains N13/375 Shower units |
Specification data - Shower tray wastes
Form | Rectangular. |
Materials | |
Body | Stainless steel. |
Finish and colour | Brushed stainless steel. |
Size | 600 x 63 mm. |
Sustainability data
Contains Red List materials | No |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature
JACKOBOARD® J Drain Installation Instructions
JACKOBOARD® Product Catalogue
JACKOBOARD® 2K Sealing Kit For All JACKOBOARD® Shower Trays Technical Data Sheet
