JACKOBOARD® Aqua Line Easy Vertical Drain
Verified by manufacturer 6 months ago
Vertical drain system.
Application
For the fast and precision-fit installation of a drain system that is matched to all JACKOBOARD® Aqua Line Easy shower elements.
Description

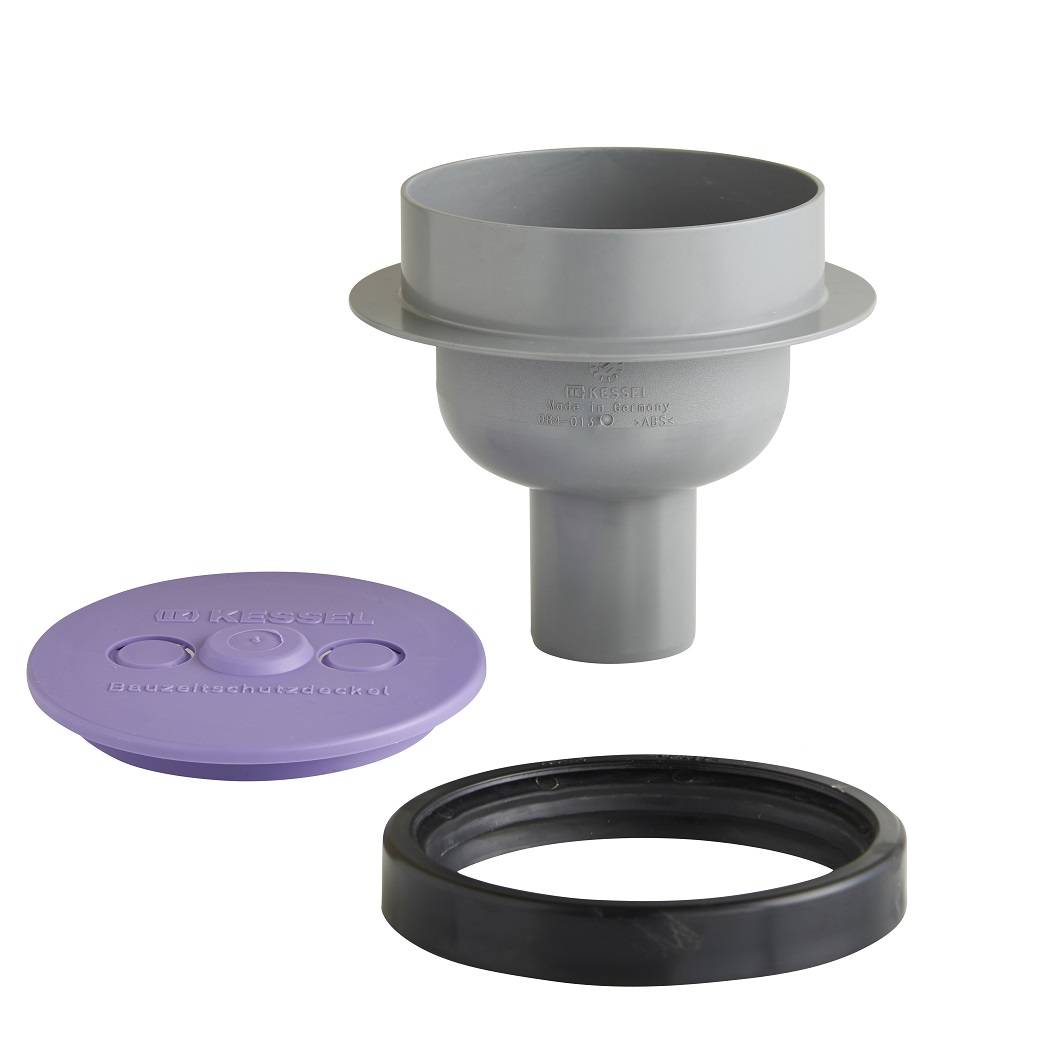

JACKOBOARD® Aqua Line Easy drains are the matching accessory for JACKOBOARD® Aqua Line Easy shower elements.
Features and benefits:
- Flow rate of 0.9 l/s.
- Drain water seal height 50 mm.
- DN 50 drainage connection.
- Drainage connection made of ABS plastic.
General information
Color | White |
Finish | Other |
Material | Stainless steel Acrylonitrile butadiene styrene (ABS) |
Shape | Square |
Length | 140 mm |
Width | 125 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/43 Shower trays N13/40 Shower units N13/375 Shower units |
Specification data - Shower tray wastes
Form | Square. |
Materials | |
Body | Acrylonitrile butadiene styrene (ABS). |
Finish and colour | Grey. |
Size | 125 x 140 mm. |
PipeConnection | DN 40/50 mm. |
Drainage capacity | 0.9 L/s. |
Installation height | Guidance for specification option: Consult manufacturer and insert requirements. |
Water trap | 50 mm. Manufacturer guidanceHeight. |
Integral accessories | JACKOBOARD® Aqua Line Easy Shower Trays. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
JACKOBOARD® Product Catalogue

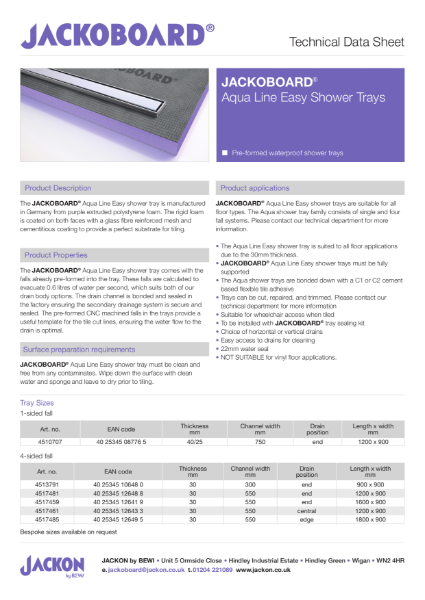

JACKOBOARD® Aqua Line Easy Shower Trays Technical Data Sheet
