JUTA GP® Void Vent 40
Verified by manufacturer 4 months ago
High Density Polyethylene (HDPE) ventilator.
Application

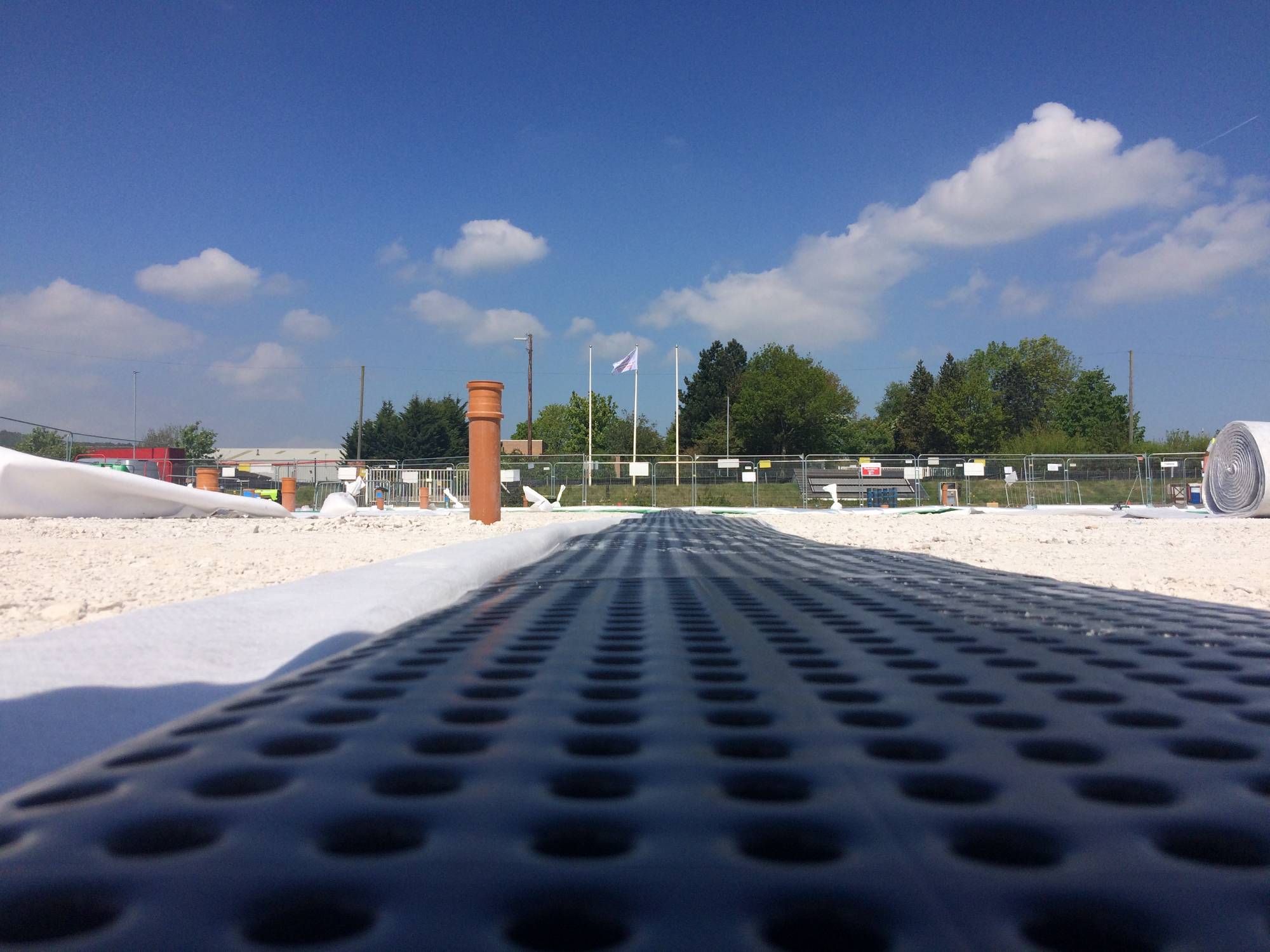

To provide a means of ventilation when used in conjunction with an approved gas protection barrier.
Description
Cuspated HDPE core with a geotextile filter/ separator bonded to a single side.
Features and benefits:
- HDPE does not support bacterial growth.
- HDPE is highly resistant to acids and alkalis.
- Made in accordance with the recommendation contained within NHBC Guidance and BS8485:2015 + A1 2019.
General information
Color | Black White |
Finish | Other |
Material | High density polyethylene (HDPE) |
Shape | Other |
Length | 25000 mm |
Width | 970 mm |
Height | 42 mm |
Warranty description | 60 year |
Uniclass | |
CAWS | D21/360 Geocomposite venting layers |
Specification data - High-density polyethylene (PE-HD) studded sheets
Standard | BS 8485: 2015, A1 2019. |
Filter layer | Geotextile. |
Sheet thickness | 42 mm. |
Weight (minimum) | 60 kg. |
Colour | Black.White. |
Performance characteristics | |
Flow rate | >5 L/m/s. |
Recycled content | 0%. |
Studded layer | High-density polyethylene (HDPE). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Fully Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature
JUTA GP® Void Vent - TDS
JUTA GP® Void Vent - Installation Guidance
