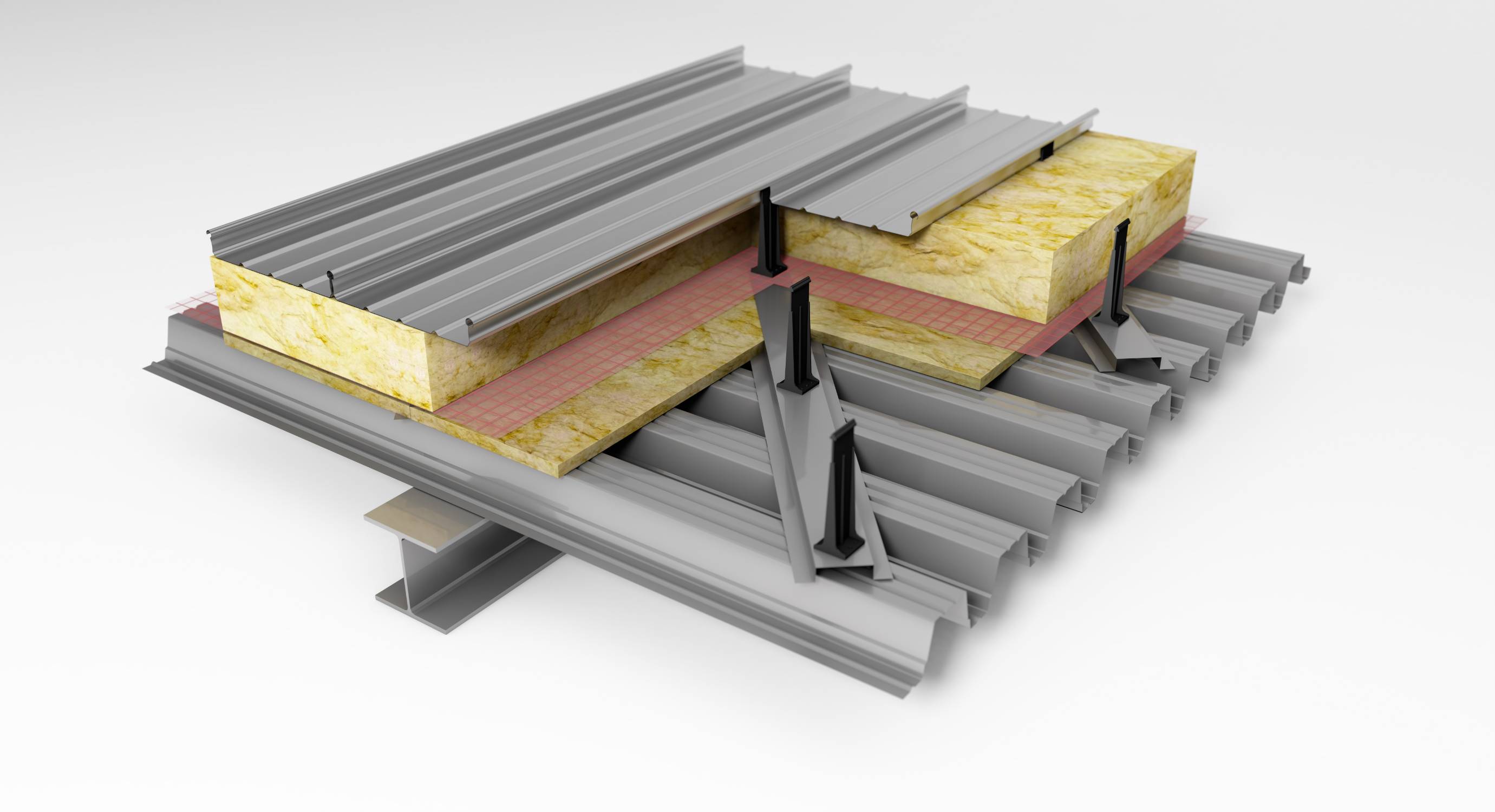

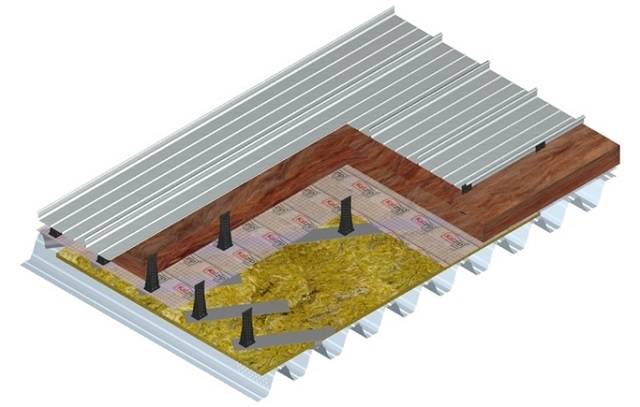

Metal profiled acoustic deck roof system, with a thermal transmittance (U-Value) of 0.18 W/m²K.
For roof and wall applications.
Metal profiled acoustic deck roof system, with a thermal transmittance (U-Value) of 0.18 W/m²K. NB various U Value options are available refer to Kalzip for clarification.
All work undertaken should be fully in accordance with Kalzip standard recommendations and by Kalzip approved welding contractors. Site welding must be carried out fully in accordance with Approved Welding Procedure Specification ASW/TIG/001 Rev ‘B’ 1997 as defined in BS EN ISO 9606-2 for material gauges between 0.8–3 mm thickness. Site welding operatives must be certified to BS EN ISO 9606-2 standard for material gauges between 0.8–3 mm thickness. The weld test procedure shall be in accordance with BS EN ISO 15614-2: 2005.
Kalzip sheets to be installed as per cladding manufacturer's instructions.
Features and benefits:
Color | Other Guidance for specification option: Various colour options available; speak to Kalzip or visit the Kalzip website. Beige Black Brown Blue Manufacturer guidanceVarious colour options available refer to product literature. |
Finish | Anti-graffiti Coated Copper PVdF Embossed Manufacturer guidanceVarious finish options available refer to product literature. |
Material | Aluminium Guidance for specification option: Painted aluminum options are available as well; speak to Kalzip or visit the website. Stainless steel Copper Zinc |
Shape | Other Guidance for specification option: Flexible shape and form options. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year 15 year 20 year 25 year 30 year |
Uniclass | |
CAWS | H31/10 Metal H31/120 Metal |
Product range |
Liner sheets | |
Material | Kalzip Structural Decking Sheet KSD100 Web Perforated. |
Primary fasteners | 5.5 mm diameter carbon steel self-drilling fasteners.Guidance for specification option: (SD-8-T15-5.5x25). One fastener(s) to be installed in every valley at each sheet support. |
End and side laps | Standard side lap arrangement. |
Air and vapour control layer | |
Material | Kalzip VCL Clear - Reinforced virgin polyethylene with 530 MNs/g vapour resistivity. |
Sealing | Seal with one row of sealant tape, not less than 50 mm. |
Acoustic insulation | Kalzip Acoustic Rockfibre Slab.Guidance for specification option: (Tissue faced optional). Manufactured with ECOSE™ Technology. |
Thermal insulation | Kalzip Insulation Quilt Type 1.Guidance for specification option: Manufactured with ECOSE™ Technology. |
External sheets | |
Material | Aluminium Standing Seam 65/400. |
Primary fasteners | 6 mm diameter stainless steel torque controlled fasteners (SDK3-S-377-6.0x45). Two fasteners per E-clip, positioned diagonally opposite in the holes of the base of the clip. |
End and side laps | Mechanically seamed over head of support clips with a Kalzip 'zipping' machine. |
System accessories | Not required.Extruded aluminium alloy (EN AW-6061) gable end hooks.Extruded aluminium alloy (EN AW-6063) drip angle 40 x 20 mm.Extruded aluminium alloy (EN AW-6063) flat bar 22 x 6 mm.Extruded aluminium alloy (EN AW-6063) gable end channel.Extruded aluminium alloy (EN AW-6063) tolerance gable clip extrusion.Fabricated aluminium alloy (EN AW-3004) flashings.Guidance for specification option: Material and finish as per cladding sheets or as per project requirements - consult manufacturer for details. Fabricated aluminium alloy (EN AW-3004) ridge closures (KZ 65/400).Fabricated welded soaker units.Guidance for specification option: Material and finish as per cladding sheets or as per project requirements - consult manufacturer for details. Kalzip profile eaves fillers (KZ 65/400).Kalzip profile ridge fillers (KZ 65/400).. |
Thermal transmittance (U-Value) | 0.18 W/m²K. |
Pitch | 1.5° (minimum). |
Finish | Aluminium, AluPlusPatina. Aluminium, natural stucco embossed. Aluminium, with a PVDF paint coating. Aluminium, with an HPC paint coating. AluPlusZinc. |
Sub-purlins | Minimum one fastener(s) at each top-hat/ deck crown connection, alternating each side/ both sides. |
Thermal insulation | Mineral wool insulation, manufactured in accordance with BS EN 13162. |
Profile fillers | Black closed cell cross-linked polyethylene with a minimum density of 30 kg/m³. |
Thickness | 30 mm (minimum). Guidance for specification option: Consult manufacturer and insert requirements. |
Third-party certification | British Board of Agrément Certification No. 98/3481 and Institute fur Bautechnic Zulassungbescheid N R 14.1-181. |
Dimensions | Manufacturer guidanceTo suit project requirements. |
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 9.61 kg CO₂ eq/m² Manufacturer guidanceRefer to EPD certificate. |
Recyclability | Excellent |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % Guidance for specification option: Recycled aluminium top sheet. |
