Katherm QK Nano
Verified by manufacturer 1 month ago
24 V electromechanical model - 900 mm
24 V electromechanical model - 900 mm
UK Conformity Assessed (UKCA)
Certificate type

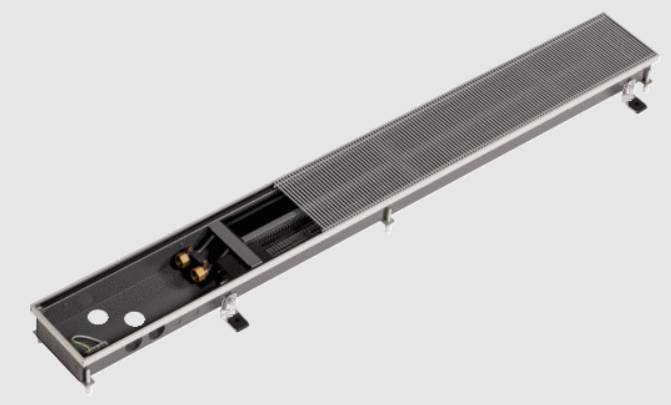

Fan-assisted trench heating with small dimensions.
Application
Suitable for large office complexes.
Description
The Katherm QK nano is suitable when space is at a premium. Its compact trench dimensions enable maximum interior space to be utilized.
Features and benefits:
- 24 V electromechanical model available.
- 230 V electromechanical including power unit and terminal block model available.
- KaControl incl. power unit, PCB and connection box model available.
- Space saving.
- Creates pleasant indoor environment.
- Unit height: 70mm.
- Unit Width: 165 mm.
- Unit Lengths for 24V electromechanical: 900, 1400, 1800, 2100, 2600 mm.
- Unit Lengths for 230V or KaControl: 1100, 1600, 2000, 2300, 2700 mm.
General information
Color | Grey Guidance for specification option: RAL 9006. |
Material | Steel |
Shape | Rectangle |
Length | Bespoke 900 mm 1400 mm 1800 mm 2100 mm |
Width | 165 mm |
Height | 70 mm |
Uniclass | |
CAWS | T90/477 Trench convectors T90/477 Trench convectors |
Specification data - Trench convectors
Standards | |
Heating | To BS EN 16430. |
Cooling | To BS EN 16430. |
Arrangement | Fan assisted. |
Mounting | Fully recessed. |
Output | 772 W.663 W.539 W.407 W.248 W.Manufacturer guidanceHeat output. |
Outlet grilles | Orthogonal grille. |
Model | 24 V electromechanical model. |
Width | 165 mm. |
Height | 70 mm. |
Length | 900 mm. |
Grille finish | Steel coated, RAL 9006. |
Sustainability data
Country of product manufacture | Germany |
Third party certifications
UK Conformity Assessed (UKCA)

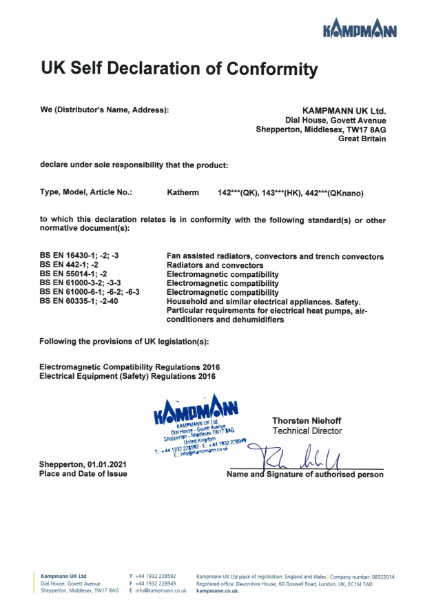

UK Self Declaration of Conformity
Literature
Katherm QK Nano Installation Manual
Trench Heating BS EN 16430
