Keyblok Pencil Edge - Concrete Block Paving
Verified by manufacturer 3 months ago
200 x 100 x 80 mm
200 x 100 x 80 mm
Concrete block paving.
Application
Retail, commercial and residential. Suitable for use in light traffic applications such as outside retail outlets subject to traffic from small wheeled trolleys.
Description

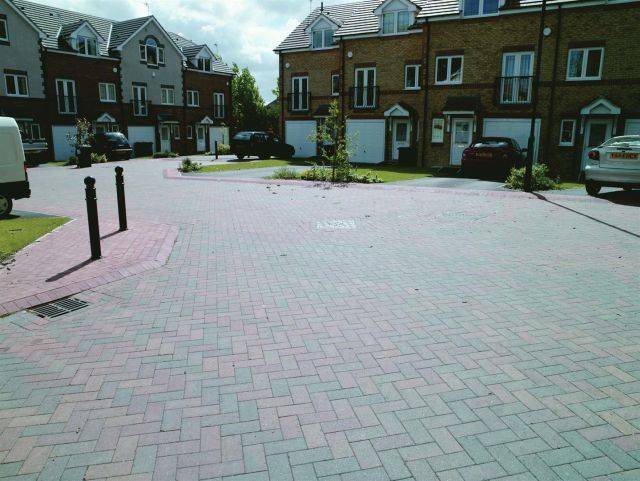

Rectangular concrete block paving with a top surface edge profile that creates a smoother running surface. Suitable for use in light traffic applications such as outside retail outlets subject to traffic from small wheeled trolleys.
Features and benefits:
- 60 and 80 mm block thicknesses.
- Eight colour options.
- Typical applications: Retail, commercial and residential.
General information
Color | Black Manufacturer guidanceBracken, Brindle, Buff, Burnt ochre, Charcoal, Marigold, Natural, Red, White. |
Finish | Smooth |
Material | Concrete |
Shape | Rectangle |
Length | 200 mm |
Width | 100 mm |
Height | 60 mm 80 mm |
Uniclass | |
CAWS | Q24/113 Conventional concrete block paving overlay Q24/112 Conventional concrete block paving with bound base Q24/10 Conventional concrete block paving |
Specification data - Concrete paving blocks
Standard | To BS EN 1338. |
Physical properties | |
Colour | Bracken.Brindle.Buff.Burnt ochre.Charcoal.Marigold.Natural.Red.White. |
Finish | Smooth. |
Profile | |
Paver type | Herringbone.Stretcher bond.Basketweave. |
Dimensions and associated tolerances | |
Nominal sizes | 200 x 100 x 80 mm. |
Weathering resistance | ≤1.0 kg/m² as a mean with no individual value > 1.5 kg/m² (freeze thaw durability).Guidance for specification option: It should be appreciated that with all products weathering and site conditions can cause shade variation to appear across the surface of individual units. This does not in any way affect the performance of the units and any such variation will diminish over a period of time as the product matures |
Abrasion resistance | ≤23 mm (wide wheel abrasion test). |
Slip resistance | > 45.Guidance for specification option: Mean polished skid resistance value (PSRV): > 45, Mean unpolished skid resistance value (USRV): > 45 |
Skid resistance | > 45.Guidance for specification option: Mean polished skid resistance value (PSRV): > 45, Mean unpolished skid resistance value (USRV): > 45 |
Sustainability data
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 20 kg CO₂ eq/unit Self declared |
