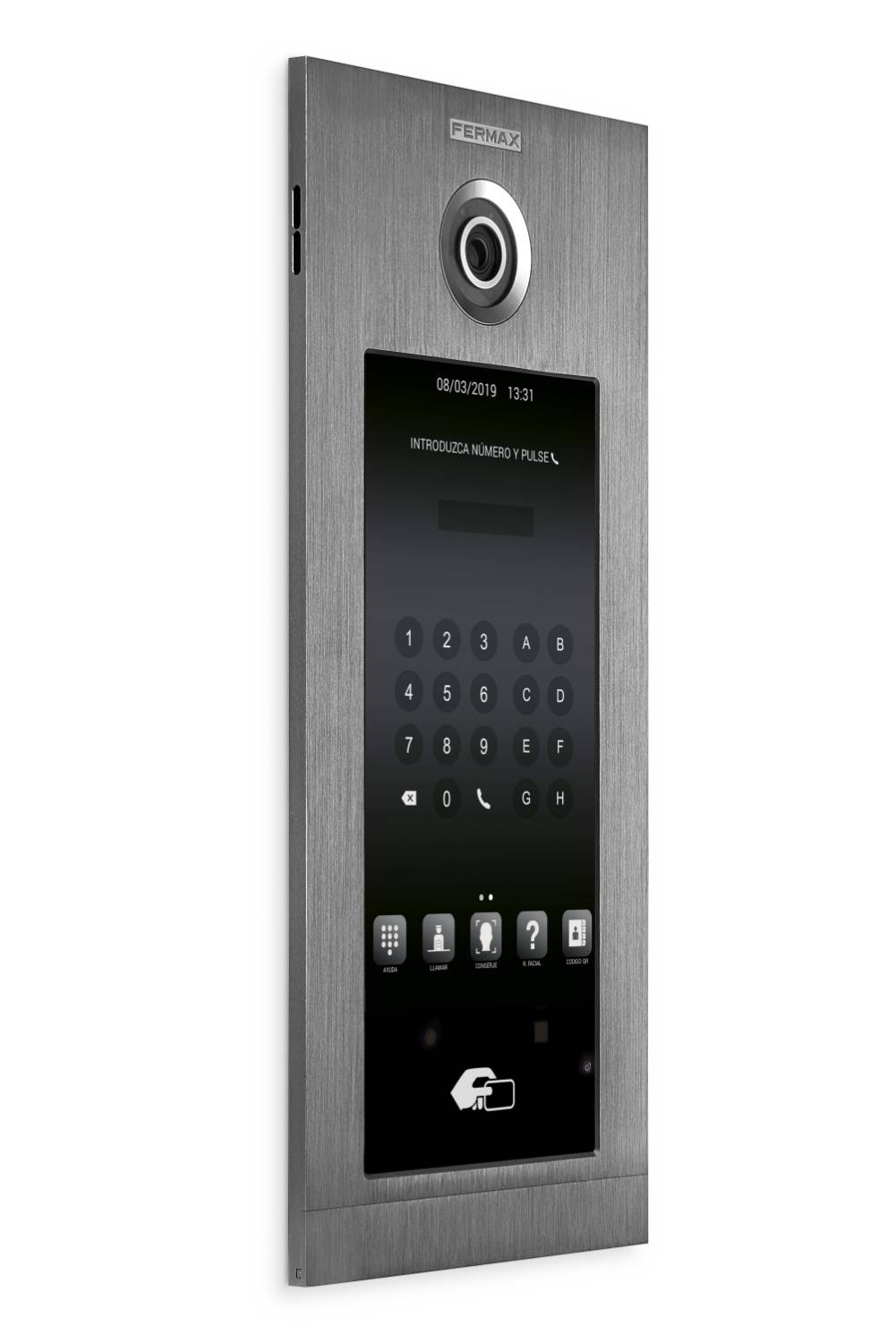

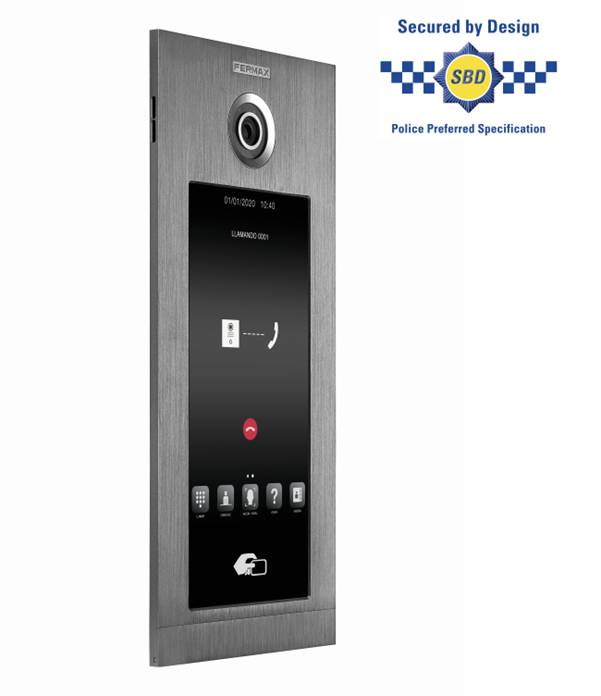

KIN - IP Touch Screen video door entry panel
Verified by manufacturer 27 days ago
A video door entry panel.
Application
Suitable for residential and commercial use.
Description
Video door entry panel.
Features and benefits:
- MEET IP panel PoE panel with 10'' capacitive touch screen SIP protocol with an 1.2 Mpx HD camera with electronic directory, alphanumeric calling, proximity reader, entry code and facial recognition.
- The directory has a capacity of 10 000 users (name and apartment number).
- Multiple block calling.
- Call to Concierge(s).
- Tamper switch.
- Additional relays to activate multiple doors and gates.
General information
Color | Grey |
Finish | Brushed |
Material | Aluminium |
Shape | Rectangle |
Length | 50 mm |
Width | 185 mm |
Height | 405 mm |
Warranty description | Two year |
Uniclass | |
CAWS | W90/130 Electronic access control system W90/365 Intercom entrance panels W90/130 Electronic access control systems W90/363 Access control units W90/365 Intercom entrance panels |
Specification data - Intercom entrance panels
Material and finish | Brushed. |
Colour | Grey. |
Type of operation | Networked.Stand-alone. |
Communication interface | Ethernet RJ-45, RS-485, Wiegand 26. |
Entrance panel call buttons | Digital coded access keypad. |
Integral keypad | |
Key type | Touch sensitive. |
Integral credential reader | Smart (Mifare). |
LCD display | 10.1” Colour TFT. |
Microphone | Integral. |
Speaker | Integral. |
Camera | Integral colour. |
Mounting position | Recessed.Surface. |
Ingress protection | IP54. |
Sustainability data
Country of material origin | Spain |
Country of product manufacture | Spain |
Material | Aluminium |
Literature
KIN - IP Touch Screen Door Entry Panel Data Sheet
