MARINE - Duox 2 Wire - Vandal Resistant Digital Video door entry panel
Verified by manufacturer 27 days ago
Secured By Design
Certificate type

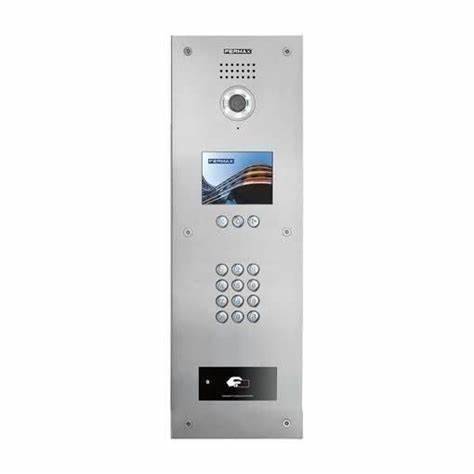

A vandal-resistant video door entry panel.
Application
- Suitable for residential use.
- For installation in locations with extreme weather conditions or in dangerous, humid or corrosive environments.
Description
Fermax's Marine panel is a vandal-proof IP54 IK09 panel made of 2.5-mm thick AISI 316L stainless steel. It is particularly suitable for extreme weather conditions and dangerous environments. The panel does not include a flush or surface box, which must be ordered separately. It is possible to combine two or more panels with a joining bolts set. The panel features a dialling keypad and a proximity reader.
Features and benefits:
- ST4 size.
- 3.5" colour graphic display and backlit keypad for calling. DUOX PLUS system (two non-polarised wires).
- Wide angle camera (Angles: 100º(H)/80º(V)).
- EM proximity reader.
- Flush box not included.
General information
Color | Silver |
Finish | Brushed |
Material | Stainless steel |
Shape | Rectangle |
Length | 55 mm |
Width | 150 mm |
Height | 360 mm |
Warranty description | Two year |
Uniclass | |
CAWS | W90/130 Electronic access control systems W90/363 Access control units W90/365 Intercom entrance panels W90/130 Electronic access control system W90/365 Intercom entrance panels |
Specification data - Intercom entrance panels
Material and finish | Stainless steel, brushed. |
Colour | Silver. |
Impact protection (minimum) | IK09. |
Type of operation | Networked.Stand-alone. |
Entrance panel call buttons | Digital coded access keypad. |
Integral keypad | |
Key type | Momentary push to make. |
Features | Backlight. |
Integral credential reader | None.Guidance for specification option: Without proximity cut out. Smart (Mifare).Guidance for specification option: With proximity cut out. None - Seperate Fermax AC Max Proximity reader. |
LCD display | 3.5” Colour. |
Microphone | Integral. |
Speaker | Integral. |
Camera | Wide angle colour. |
Mounting position | Recessed.Surface. |
Ingress protection | IP54. |
Sustainability data
Country of material origin | Spain |
Country of product manufacture | Spain |
Material | Stainless steel |
Third party certifications
Secured By Design
SBD
Literature
Marine Panels Brochure
MARINE - Duox 2 Wire - Vandal Resitant Digital Video door entry panel Data Sheet
