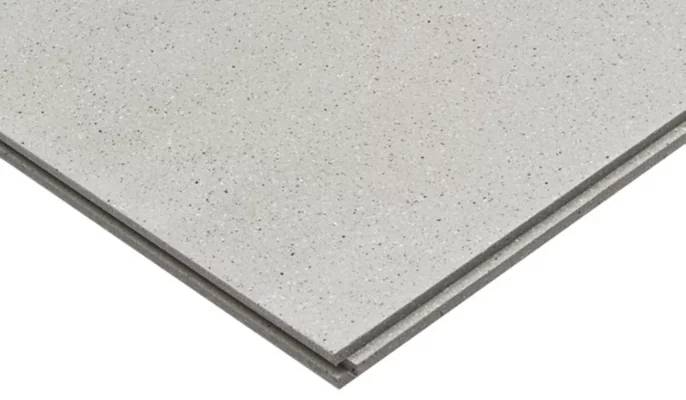

Knauf GIFA FHB - Dry Screed Gypsum Fibre Flooring Panel
Verified by manufacturer 10 days ago
1200 x 600 mm panel, 18 mm thick
1200 x 600 mm panel, 18 mm thick
High density structural dry screed panel made from gypsum fibre; range of thicknesses; T&G edges to be bonded to form a monolithic layer, floating, fully supported or spanning pedestal/joist grids.
Application
- Suitable as a raised hollow floor over pedestals (in commercial buildings) or over joists.
- Can be used as single and double layer systems, suitable for porcelain and stone tiles bonded directly without the need for an additional decoupling layer.
- Can be installed over timber joists and cradles and battens (in residential) or metal/ timber joists (in the modular off-site sector), as well as laid over existing solid substrate levelled.
Description
Knauf GIFA FHB is a high density (>1500 kg/m³) structural dry screed panel made from gypsum fibre, available in a range of thicknesses, with T&G edges to be bonded to form a monolithic layer, floating, fully supported or spanning grid of pedestals and joists.
Features and benefits:
- Tough, impact resistant, high surface hardness and compressive strength.
- Thermal conductivity rating of 0.35 W/m·K, suitable for underfloor heating.
- Interlocking tongue and groove edge, bonded with joint adhesive, no screws required.
- Fast system install compared to traditional methods, ready for foot traffic in 12 hours, ready for covering in 24 hours (depending on the use of levelling compound).
- No water or cement required in installation.
- Optimal solution for high void height build-ups, levelling uneven substrates, cost effective and high performing.
General information
Color | Grey |
Finish | Textured |
Material | Gypsum Fibre-reinforced |
Shape | Rectangle Square |
Length | 1200 mm 600 mm |
Width | 600 mm |
Height | 18 mm 25 mm 28 mm 32 mm 38 mm Manufacturer guidanceThickness. |
Uniclass | |
CAWS | K11/295 Floating floor system K11/60 Board K11/27 Acoustic separating floor system K11/275 Acoustic separating floor system |
SKU Code | 00453665 |
GTIN/EAN | 4003982406941 |
Specification data - Fibre-reinforced gypsum floorboards
Classification data | |
Supplied by | Knauf UK. |
Thickness | 18 mm. |
Edges | Tongued and grooved. |
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum) | Manufacturer's standard. |
Environmental information | |
Volatile organic compounds (VOC) emissions level (maximum) | Manufacturer's standard. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Weight | 29.2 kg/m². |
Panel size | 1200 x 600 mm. Manufacturer guidanceLength x width. |
Reaction to fire | A1. |
Thermal conductivity | 0.35 W/m·K. |
Accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Gypsum Fibre-reinforced |
Recyclability | Can be fully recycled, make sure it has no or minimal contamination from non-gypsum based materials as this will affect its recyclability. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 10 % Guidance for specification option: 2023 average by mass, recycled paper. |
Literature

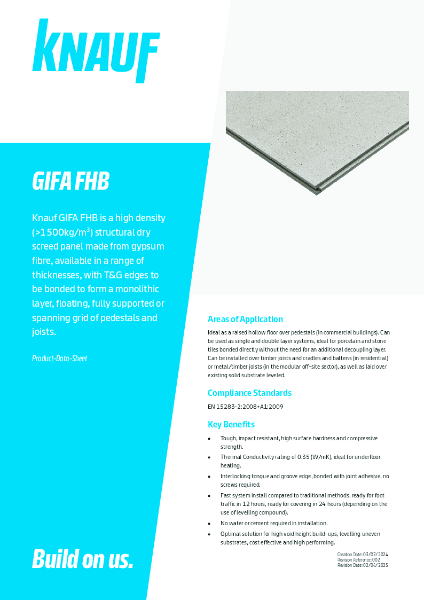

Product Data Sheet - GIFA FHB
