Knurled Pull Handle (HUKP-0101-52) - Door handle

Verified by manufacturer 6 days ago

Hafele UK Ltd

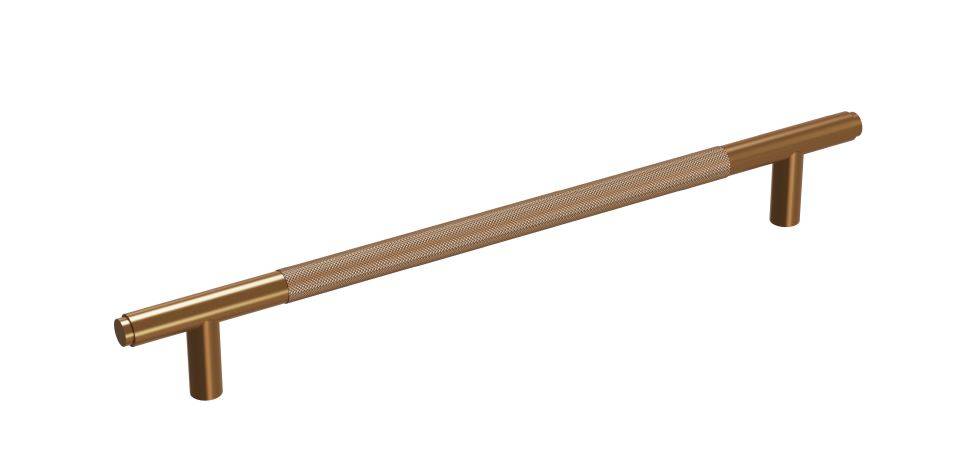

Stainless steel knurled pull handle

Jump to:
BOS
+44 (0)800 171 2907 Website

Application

To suit doors up to 60 mm thick and glass doors 8-12 mm.


Description

Stainless steel knurled pull handle.


Features and benefits:

  • Pull handle knurled design on pillars.
  • Overall lengths standard: 300, 425, 650, 900 and 1000 mm.
  • Fixing types: Bolt through, back to back or secret fixing.
  • To suit doors up to 60 mm thick and glass doors 8-12 mm.

General information

Color

Black

Bronze

Gold

Silver

Manufacturer guidance

Any RAL colour available to special order.

Finish

Satin

Guidance for specification option:

Brass or stainless steel.

Polished

Guidance for specification option:

Brass or stainless steel.

Matt

Guidance for specification option:

Black.

Material

Stainless steel

Steel

Length

300 mm

425 mm

650 mm

900 mm

1000 mm

Manufacturer guidance

Maximum length 2400 mm, additional pillars required over 1500 mm.

Warranty description

25 year

Uniclass

Pr_30_36_59_64 Pull handlesPrimary

CAWS

P21/641 Pull handles

P21/42 Pull handles

Product range

Digital BIM Assets
Pull Handles

Specification data - Pull handles

Classification grades (minimum)

-

Fire resistance

0.

Corrosion resistance

4.

Form

Straight bar with stand-off spacers.

Diameter

19 mm.

Distance between centres

300 mm.

425 mm.

650 mm.

900 mm.

1000 mm.

Material and finish

Stainless steel, grade 1.4404 (316L).

Colour

Satin stainless steel.

Polished stainless steel.

Matt black.

Light bronze.

Dark bronze.

Guidance for specification option:

Special order.

Hafele black.

Polished brass.

Satin brass.

RAL colour.

Guidance for specification option:

Special order.

Mounting

Bolt through.

Back to back.

Secret fixing.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
