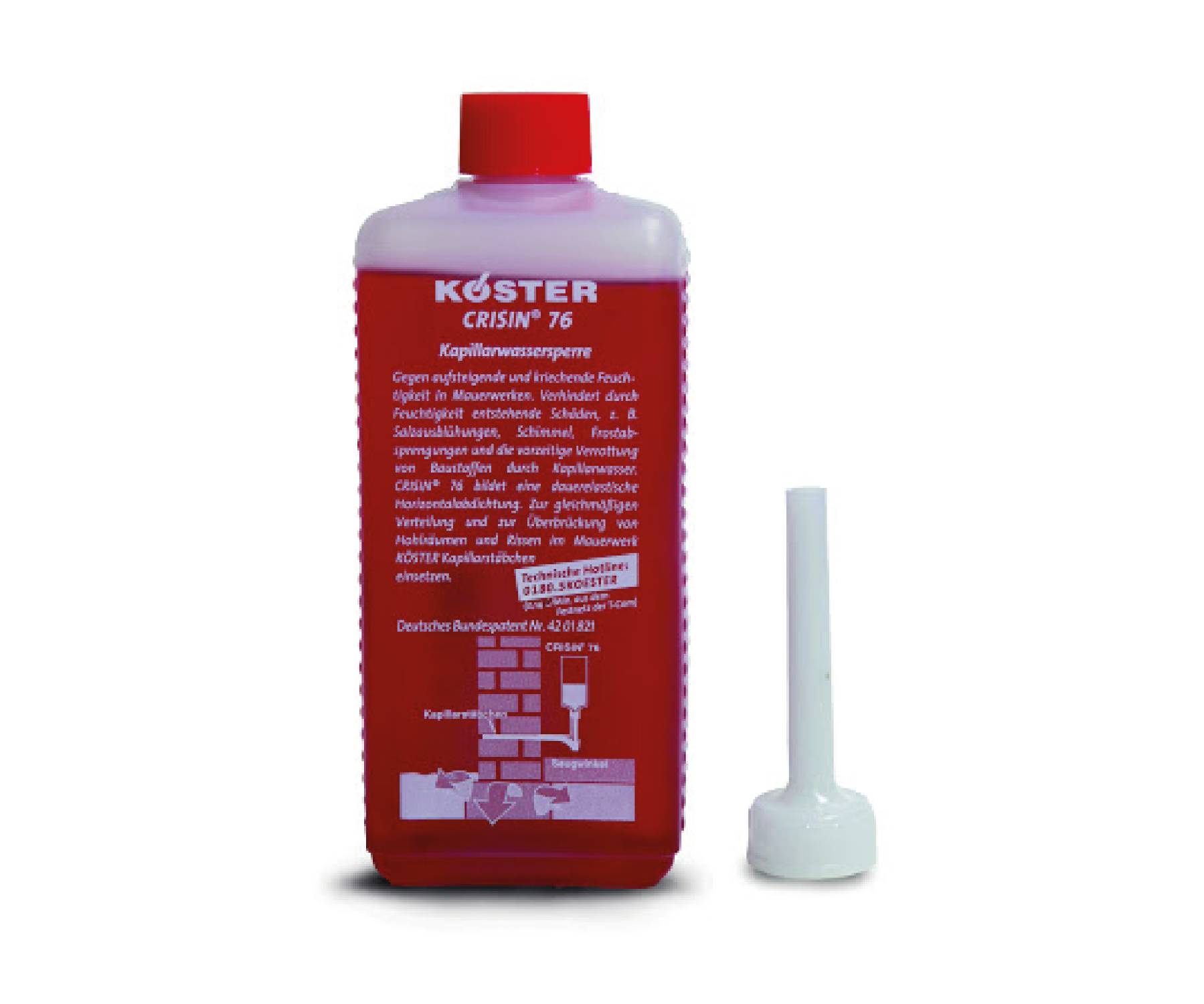

Koster Crisin 76 Concentrate

Verified by manufacturer 4 months ago

Delta Membrane Systems Ltd

Concentrated, solvent-free synthetic resin against capillary rising moisture in walls, independent of moisture content and salt contamination.

Jump to:
+44 (0)1992 523523 Website

Application

For saturation and pressureless injection, for creating subsequent horizontal waterproofing against capillary rising moisture in all mineral building materials. Can be applied from inside and/ or outside. Can be applied in cases of high degrees of moisture penetration and with all degrees of salt contamination.

Description

A very thin, solvent-free, concentrated liquid synthetic resin. It penetrates deeply into even the smallest capillaries and pores in building materials. Due to its very low density and a surface tension lower than that of water, it displaces the water in the capillaries.


Capillaries lined with Köster Crisin 76 Concentrate are lined with resin and are hydrophobic. The curing of the injected product is independent of the drying of the masonry. After full cure, it remains flexible, does not decay or decompose, acts neutrally, does not effloresce and does not affect steel reinforcement. During application and after full cure, it is resistant to all of the usual corrosives in masonry such as acids, alkalis and salts.

General information

Material

Resin

Guidance for specification option:

Synthetic resin.

Warranty description

Ten year

Uniclass

Pr_20_31_53_41 Injection mortar damp-proof coursesPrimary

CAWS

C45/220 Chemical injection dpc system

Specification data - Injection mortar damp-proof courses

Material

Synthetic resin.

Consumption (per layer applied)

0.04 L/m/cm.

Guidance for specification option:

Wall thickness.

Density

0.91 g/cm³.

Effectiveness

-

Manufacturer guidance

Type of effect: Pore restricting/ hydrophobizing.

Viscosity

10–15 mPa·s.

Active ingredient(s)

70%.

Guidance for specification option:

Active ingredients.

Sustainability data

Contains Red List materials

No

Recyclability

No

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %
