Kronobuild® OSB 3 Square Edge
Verified by manufacturer 13 days ago
2397 x 1197 x 11 mm
2397 x 1197 x 11 mm

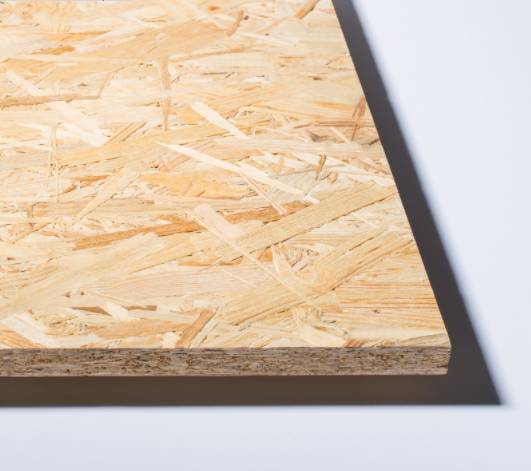

A range of oriented strand boards.
Application
Suitable for use in a wide range of applications, including:
- Structural applications: Walls, floors, roofs, staircases, hoardings.
- Interior: Furniture elements, decorative elements in indoor spaces, framework in upholstered furniture, door panels, claddings and partition walls.
- Packaging: Shipping boxes and containers, pallets.
- Retail and exhibitions.
- Warehouse management (shelving, racking, etc.).
Description
A range of OSB3 oriented strand boards. Developed and manufactured entirely in compliance with the current demand of ecological living focused on organic materials.
Some international regions may offer variations in dimensions and thickness. Consult with manufacturer direct for options and availability.
Features and benefits:
- Increased resistance to humid conditions.
- High load-bearing capacity and stiffness for construction purposes.
- High dimensional accuracy and shape stability.
- High flexibility and impact resistance.
- Easy workability with common woodworking tools.
- Environmentally friendly, recyclable product.
- Emission class E1 (to EN ISO 12460-5).
General information
Color | Other Guidance for specification option: Natural. |
Finish | Unsanded |
Material | Oriented strand board (OSB) |
Shape | Rectangle |
Length | 2397 mm 2440 mm |
Width | 1197 mm 1220 mm |
Height | 18 mm 11 mm 9 mm |
Uniclass | |
CAWS | K11/435 Oriented strand board wall sheathing K11/635 Oriented strand board sarking K11/51 Oriented strand board sarking K11/39 Oriented strand board wall sheathing |
Product range |
Specification data - Oriented strand boards (OSBs)
Standards | To EN 300 and EN 13986. |
Grade | To BS EN 300, type OSB/3. |
Reaction to fire classification | |
Excluding flooring | To BS EN 13501-1, Class D-s1, d0. |
Thickness | 11 mm. |
Edges | Square. |
Dimensions | 2397 x 1197 mm. |
Bond | To EN 319, 0.32 MPa. Guidance for specification option: Thickness: >10-18 mm. |
BendingStrength | To EN 13986, 8.2–16.4 N/mm². Guidance for specification option: Thickness: >10-18 mm (minor/major axis). |
CompressiveStrength | To EN 13986, 12.7–15.4 N/mm². Guidance for specification option: Thickness: >10-18 mm (minor/major axis). |
Modulus of elasticity | To EN 12369-1, 1980–4930 N/mm². |
Sound absorption | To EN 13986, 0.1–0.25 α. Guidance for specification option: Frequency range 250—500 Hz - Frequency range1000—2000 Hz. |
ThermalConductivity | To EN 12664, 0.1 W/mK. |
Moisture resistance | To EN 1087-1, 0.13 MPa. Guidance for specification option: 10-18 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature

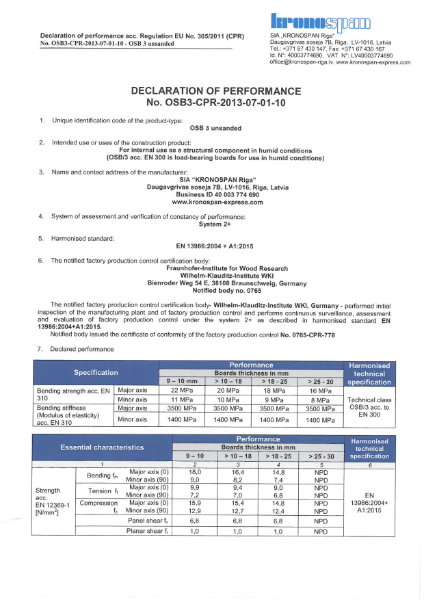

OSB 3 DoP
