Laminate Duct Panels

Verified by manufacturer 5 months ago

Concept Cubicle Systems Third party certifications:
  • Acclaim Accreditation

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

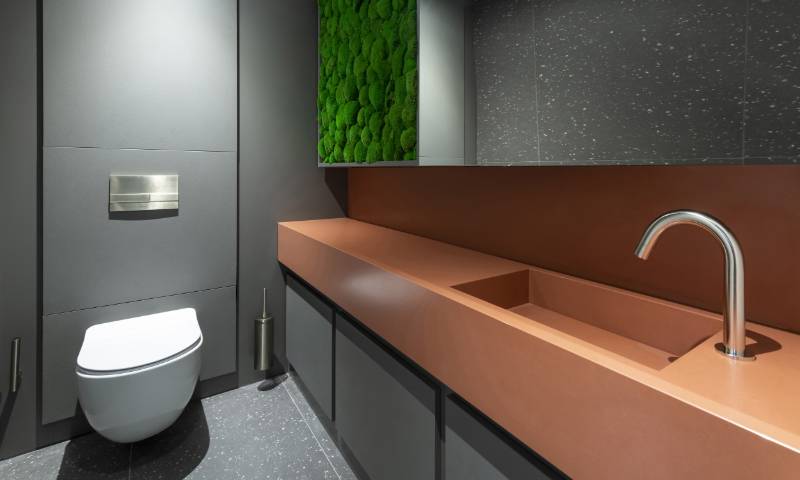

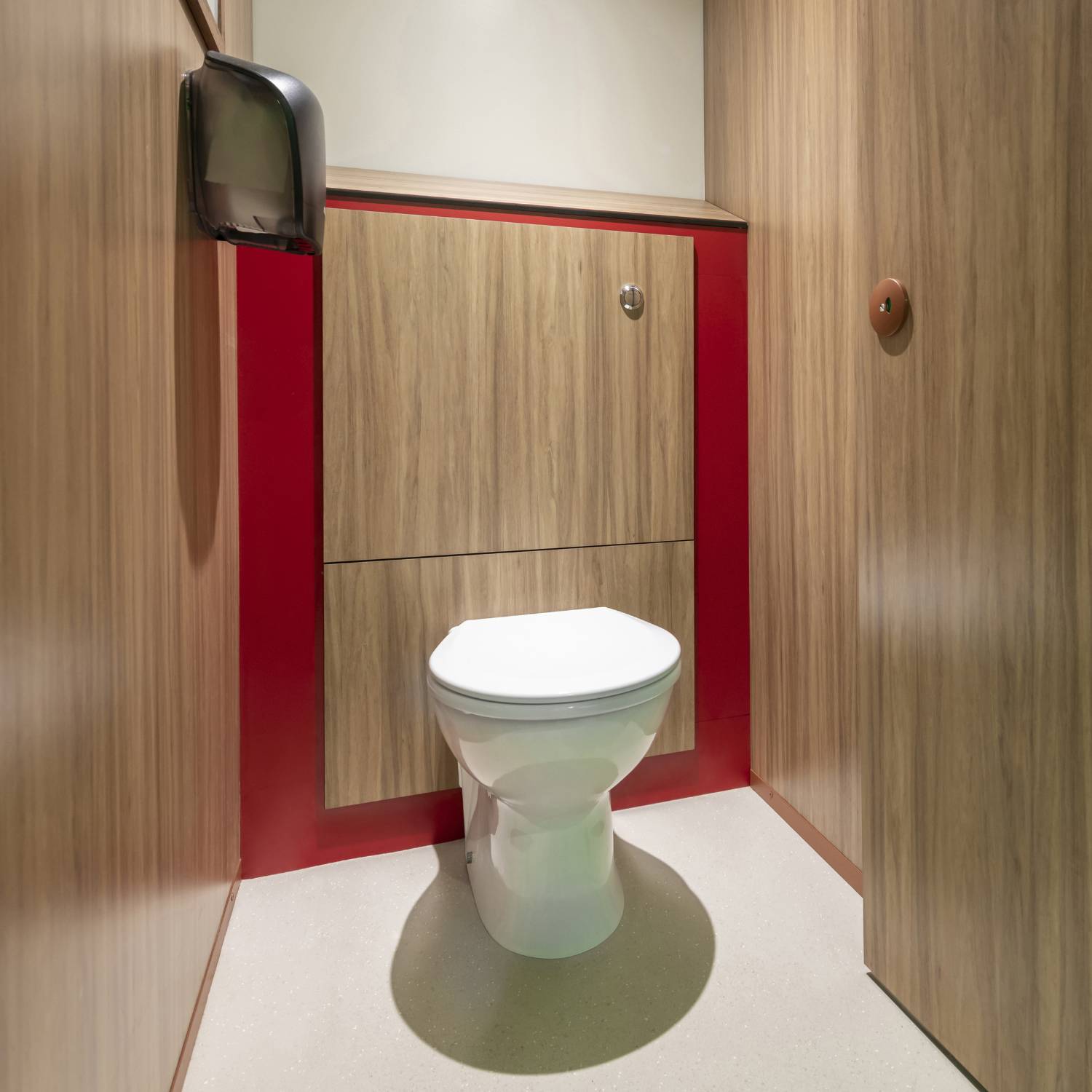

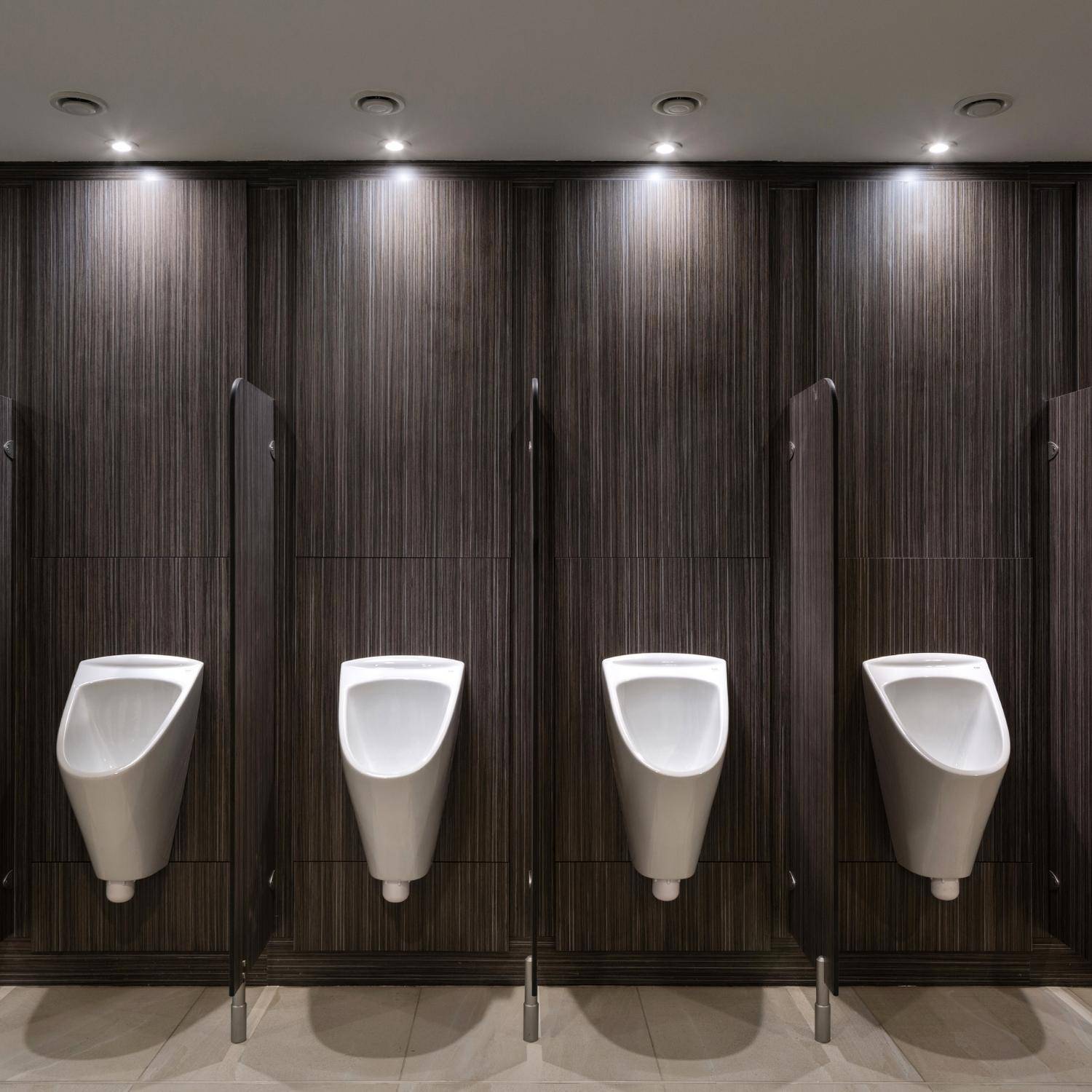

Designed to conceal pipework and cisterns behind urinals and WCs, laminate duct panels provide a stylish, and often cheaper, alternative to tiling.

Jump to:
BOS
+44 (0)161 241 9066 Website

Application

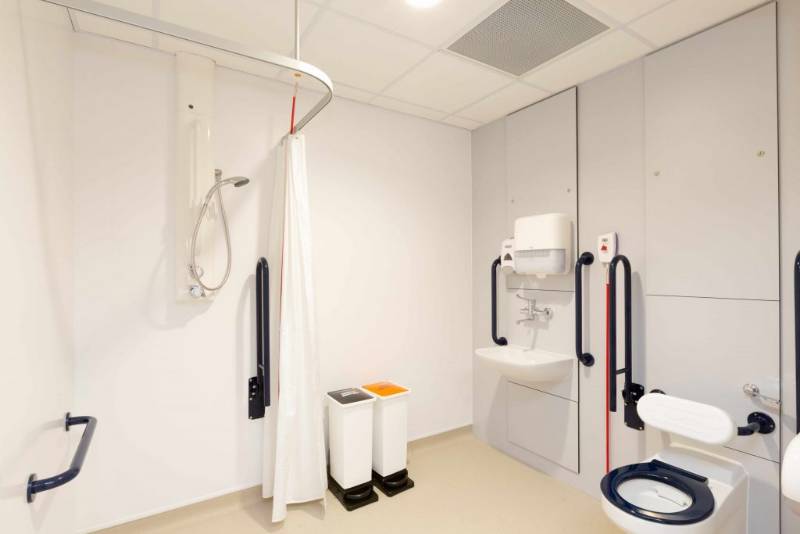

For positioning behind urinals and WCs to conceal pipework. Can also be used as wall panelling within shower areas. Suitable for use within the education, leisure or commercial industry to suit project requirements.

Description

Duct panels designed for concealing pipework and cisterns within washrooms.


Features and benefits:

  • Can be manufactured to match Concept cubicles, lockers and bench seating to create a uniform washroom.
  • Can be specified in a full-height or half-height variant.
  • Available with a choice of compact grade laminate (CGL) or high pressure laminate (HPL) access panel.


General information

Material

High pressure laminate (HPL)

Medium density fibreboard (MDF)

Shape

Rectangle

Uniclass

Ss_25_25_45_25 Duct and wall panel lining systemsPrimary

CAWS

K32/140 Duct/ wall linings – panels only

K32/15 Duct/ wall lining panels

Product range

Leisure Products
Duct Panels
Healthcare Products

Specification data - Duct and wall panel lining systems

Panels

Compact or solid grade high-pressure laminate (HPL) boards.

System accessories

Waste bins.

Towel and soap dispensers.

Hair dryers.

Not required.

Type

FORCE, 12.5 mm CGL access panel, with 13 mm compact grade laminate (CGL) shadow gaps.

Guidance for specification option:

For wet areas.

FORCE, 12.5 mm CGL access panel, with 19 mm moisture-resistant (MR), high pressure laminated (HPL) medium-density fibreboard (MDF) shadow gaps.

Guidance for specification option:

For dry areas.

Height

Full height.

Guidance for specification option:

Consult manufacturer and insert requirements.

Half height.

Guidance for specification option:

Consult manufacturer and insert requirements.

Fixing

Hook on clips.

Guidance for specification option:

Standard.

Push on clips.

Guidance for specification option:

Standard.

Hinged and lockable.

Guidance for specification option:

On request, provides additional security.

Colour/ Design

Guidance for specification option:

Insert requirements to match required washroom design, or consult manufacturer for further details.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

High pressure laminate (HPL)

Medium density fibreboard (MDF)

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1
