Medi-Form PVC IPS - Duct panel system

A prefabricated, modular duct panel system that can be supplied with or without sanitary ware, with a 100% waterproof core that is resistant to chemicals and corrosion.

Encapsulated in 2.5 mm thick anti-microbial PVC, and free from any wood-based materials, the unique composition of the one-piece construction, with returns to the wall, eliminates the risk of water damage - making it highly suitable for clinical areas and where hygiene is the utmost priority.

Available in a number of configurations, Medi-Form features lockable flush access panels to create a seamless, uncluttered look where infection control is required.

Features and benefits:

• Manufactured from robust and durable material.
• A wood-free, PVC construction – perfect for clinical environments.
• Modular units can be configured to specific requirements.
• Customizable size/ position of access doors.
• Customizable cut outs for sinks/ other sanitaryware.
• 100% waterproof core, resistant to chemicals and corrosion.
• Available in a variety of finishes.
• Hinged, lockable access panels.
• Face tested to ISO 22196.
• Hygienic, seamless surface for ease of maintenance.

Standard Wash Hand Basins:

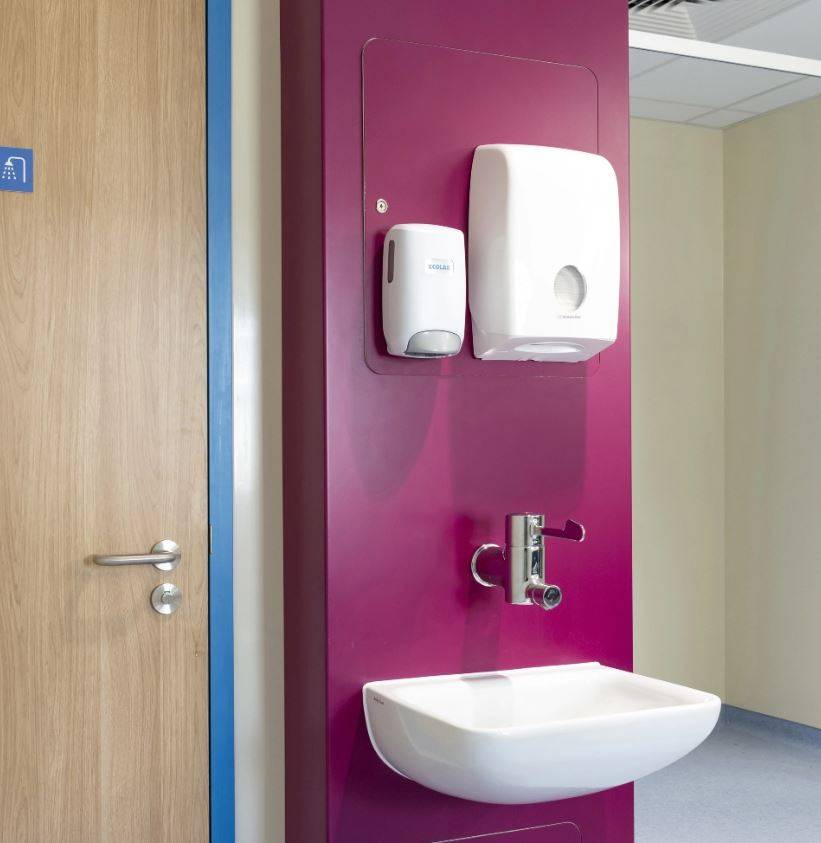

• Standard wash hand basins are fixed onto the Medi-Form unit. Easy access panels are located above and below the unit to conceal pipework and ease of maintenance.
• Clinical Specification: Armitage Contour 21, 500 mm back outlet washbasin (S215401) with concealed hangers, toggle bolts and clips (S911267). Basin supplied with waste outlet adaptor (S875067), plastic strainer (S874667) and resealing bottle trap.
• Non-clinical Specification: Portman 21, 400 or 500 mm with LH or RH tap hole, with concealed hangers and fixings. Basin supplied with waste and resealing bottle trap.

Seamless Access Panel Doors:

• Manufactured with projection gasket hinges and postformed, rounded corners, Medi-Form’s lockable access panel doors provide easy access for staff and contractors.
• The outer face finished in Biomaster Antimicrobial Silver Ion Technology to minimize the presence of bacteria and improve ease of maintenance in clinical areas where hygiene is paramount.

‘Doc M’ Compliant Disabled Washrooms:

• Manufactured to ‘Doc M’ specifications, Medi-Form is available in corner, recess, and straight wall layout configurations, creating a fully compliant washroom area that is suitable for disabled users.
• Depending on size constraints and washroom requirements, Medi-Form can be configured to include shower and washroom accessories and are face-fixed to the wall system.

Floor Height Configuration:

• A fixed back to wall with brackets system is supplied and a coved vinyl floor up to the unit is the preferred method of installation.
• If required the units can also be mounted onto a plinth
