Lead R - Lead Alternative Flashing
Verified by manufacturer 25 days ago

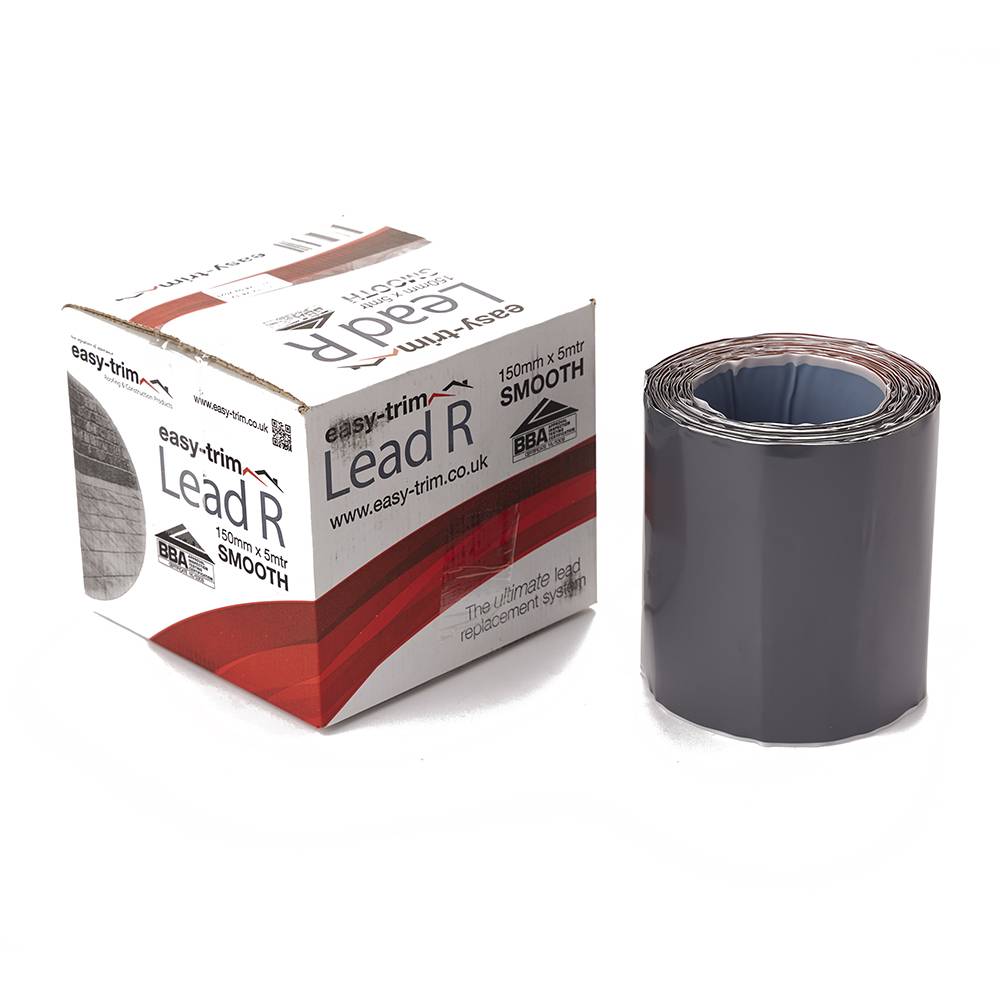

Easy Lead R Smooth EASYLEADR1505SMT
Easy Lead R Smooth EASYLEADR1505SMT
BBA Agrément Certificate
Certificate type
BBA Approved, aliminium alternative to traditional lead flashing, with a protective anti-corrosion coating and an adhesive underside.
Application
- Flat roofs.
- Pitched roofs.
- Abutments.
- Chimneys.
- Dormers.
- Saddles.
- Soakers.
- Stepped.
- Valleys.
- Windows and rooflights.
- Valleys and gutters.
Description
An alternative flashing to traditional lead which is suitable for use in both flat and pitched roof projects. It is easy to mould and shape, and will adapt to various surfaces, providing a permanent bond to brickwork, roof tiles and other popular construction materials.

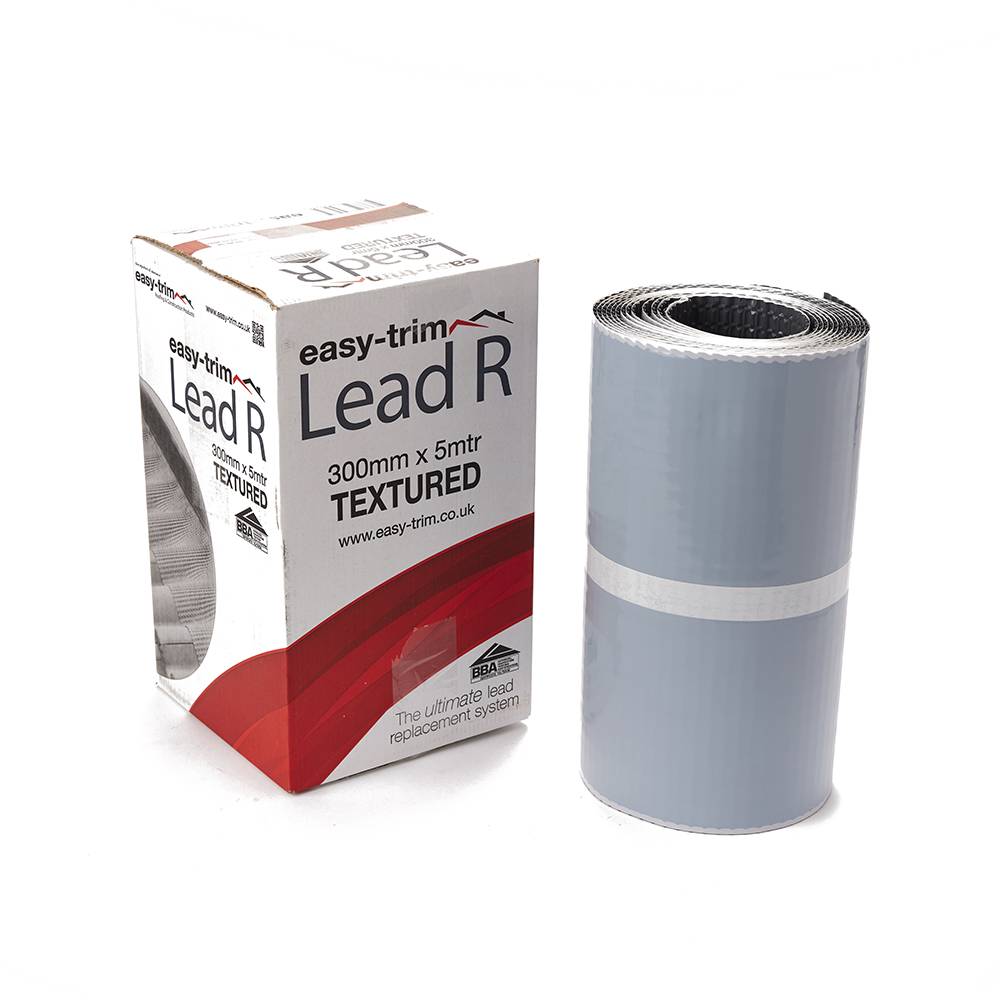

Available in a textured or smooth finish that mimics the appearance of traditional lead.
Features and benefits:
- Available in four widths (150/ 300/ 450/ 600 mm).
- Available in two finishes.
- Zero re-sale value - eliminating theft and vandalism.
- Cost effective alternative to traditional lead.
- Waterproof.
- UV resistant.
- Extremely lightweight.
- Durable.
- Malleable.
- Easy to install.
- Easily cut, no need for special tools.
- Easily repaired.
Quality Standards:
- BBA Approved – BBA 16/5309.
- Conforms to BS 5534 : 2014.
- Conforms to BS 8000-0 : 2014 and BS 8000-6 : 1990.
- Satisfies all NHBC requirements.
General information
Color | Grey |
Finish | Smooth Guidance for specification option: Lead R Smooth Textured Guidance for specification option: Lead R |
Material | Aluminium Butyl |
Shape | Rectangle |
Length | 5000 mm Guidance for specification option: Per roll. |
Width | 150 mm 300 mm 450 mm 600 mm |
Height | 2 mm |
Warranty description | 20 year |
Uniclass | |
CAWS | H72/32 Cover flashings H72/34 Soakers and step flashings H72/36 Step and cover flashings H72/38 Miscellaneous flashings H72/410 Apron flashings H72/420 Cover flashings H72/430 Step flashings H72/440 Soakers and step flashings H72/450 Step and cover flashings H72/460 Change of roof pitch flashings H72/470 Miscellaneous flashings |
Product range |
Specification data - Aluminium flashings
Material | Aluminium/ butyl.Guidance for specification option: Sheet aluminium with a high-performance butyl adhesive on the underside. |
Item | Manufacturer guidanceInsert requirements. |
Form of delivery | Roll for site forming. |
Size | |
Thickness (minimum) | 2 mm. |
Width | 150 mm.Guidance for specification option: Weight (per roll): 1.5 kg. |
Fixing | Manufacturer guidanceInsert requirements. See manufacturer's installation guide for details. |
Finish | Protective anti-corrosion coating. |
Colour | Grey. |
Texture | Smooth. |
Temperature resistance | -40 to +90°C. |
Working temperature | 5°C. Guidance for specification option: Minimum. |
Corrosion resistance | Yes. Guidance for specification option: Resistant against corrosion and UV degradation. |
Life expectancy | 20 years. Guidance for specification option: Minimum. |
Length | 5000 mm. |
Third-party certification | BBA certificate: 16/5309. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Czechia |
Country of product manufacture | Czechia |
Third party certifications
BBA Agrément Certificate
BBA Lead R
Literature
Easy Lead R Installation Guide
Easy-Lead Lead Replacement Systems
Easy-Lead R Smooth & Textured
13/5054 JUTA EASYLEAD FLASHING
