Lichtgitter Forge Welded Grating

Verified by manufacturer 16 days ago

SP 325-21/51-3

Lichtgitter UK Ltd Variant:

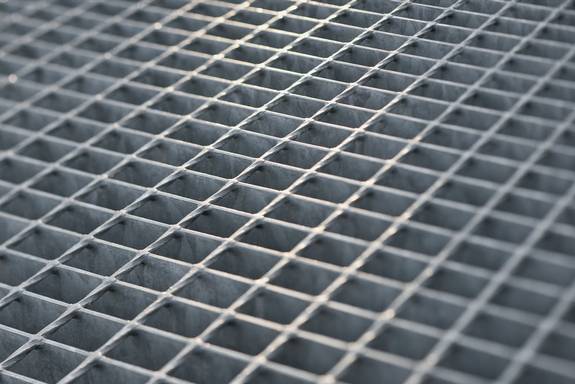

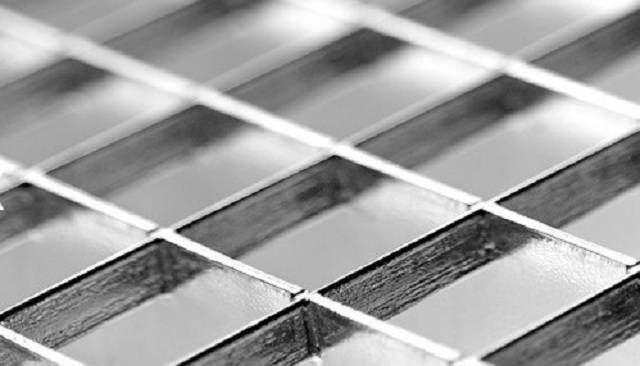

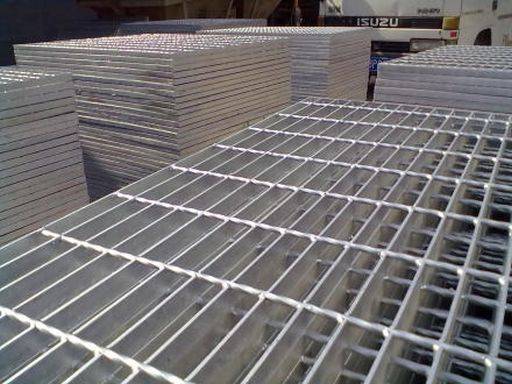

Forge welded stainless steel gratings, available in a wide range of variants.

Jump to:
+44 (0)1922 711611 Website

Application

Suitable for use in a wide range of industrial projects, including platforms, walkways, staircases, racking, fencing and offshore modules.

Description

Forge welded stainless steel gratings, available in a wide range of variants.


Features and benefits:

  • Economical and safe.
  • Tested to EN ISO 14122.
  • Manufactured from grade 1.4301 (304) or 1.4401 (316) stainless steel.
  • Compliant with 15 mm, 20 mm and 35 mm ball proof European Standards.
  • Can cater to specific project requirements - consult manufacturer for details.

General information

Color

Silver

Material

Stainless steel

Guidance for specification option:

Grade 1.4301 (304) and Grade 1.4401 (316).

Shape

Rectangle

Uniclass

Pr_25_30_30_85 Stainless steel open bar metal gratingsPrimary

CAWS

L30/45 Ramps/ walkways

L30/460 Walkways

Q10/312 Footway gratings

Product range

Gratings

Specification data - Stainless steel open bar metal gratings

Standard

To EN ISO 14122.

Finish

Plain.

Serrated.

Guidance for specification option:

For areas which require high slip resistance.

Size

-

Length x width

6000 x 1000 mm.

Manufacturer guidance

Standard stock sizes are 25 x 3 mm in stainless steel grade 1.4401 (316) and 25 x 5 mm in stainless steel grade 1.4301 (304). All other sizes are subject to minimum order quantities, consult manufacturer for details.

Bar thickness

3 mm.

Manufacturer guidance

Bearing bar thickness.

Type

21/50 range.

Span

1067 mm.

Manufacturer guidance

Maximum free span.

Deflection

Deflection (point load): 3.98 mm; Deflection (uniform distributed load): 2.23 mm.

Bearing bar

25 mm.

Manufacturer guidance

Bearing bar height.

Cross bars

50.8 mm.

Manufacturer guidance

Cross bar pitch.

HorizontalBarPitch

21.64 mm.

Manufacturer guidance

Bearing bar pitch.

Binding

Edging bar.

Class

To DIN 51130, R11.

Manufacturer guidance

Serration class.

Static load resistance

To EN ISO 14122, 1.5 kN.

Manufacturer guidance

Point load resistance.

Area

200 x 200 mm.

Manufacturer guidance

Point load area.

Load

To EN ISO 14122, 5 kN/m².

Manufacturer guidance

Uniform distributed load.

BaseMaterial

Stainless steel, grade 1.4301 (304).

Stainless steel, grade 1.4401 (316).

Bar thickness

-

Manufacturer guidance

Cross bar thickness (diagonal): 5–6 mm, specifier to detail.

Sustainability data

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
