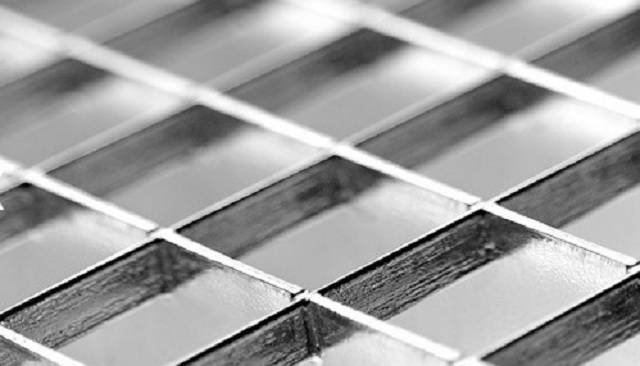

Pressure Locked Grating (Stainless Steel)
Verified by manufacturer 1 month ago
Stainless steel pressure-locked gratings, available in a wide range of variants.
Application
Suitable to use in a wide range of architectural projects.
- Standard for platforms, landings and walkways.
- Anti-slip are used in areas where there is an increased risk of slipping.
- Narrow-pitch for floor coverings, e.g. before doorways, in pedestrian areas or in public areas.
- Heavy-duty are used for vehicle applications and loads according to EN 1991/ DIN 1055-3 or DIN 1072.
Description
Stainless steel pressure-locked gratings, available in a wide range of variants.
Features and benefits:
- Good light and air permeability.
- Suitable for use in a variety of applications.
- Provides a high load capacity and torsional rigidity.
- Also available in stainless steel and aluminium variants.
- Suitable for areas which require an aesthetic appearance.
- Pressure-locked gratings with bearing bars up to 50 x 3 mm are edged with a shaped, twice ribbed banding bar or a flat material as standard. Such gratings can also be edged with a T-profile. Pressure-locked gratings with bearing bars larger than 50 x 4 mm are edged with flat material as standard, other options may be available.
Type:
- Heavy-duty can be manufactured for many applications depending on the clear span.
- Anti-slip are punched up on the upper side. Through a variety of shaping options and combinations, rating groups up to R13 according to BGR 181 confirmed by type approval testing for various types of gratings.
- Narrow-pitch are designed to be anti-slip when installing outdoors. The rating group of R10 according to BGR 181 must be met by additional profiling of the crossbars.
- Treads consists of a specially shaped and perforated nosing, a tread made of pressure-locked gratings and perforated side panels. To facilitate site assembly, the end plates are provided with a plain hole and slotted hole each side. Perforated nosing edges increase the bearing capacity of the stair treads and contribute to a safe footing on a staircase.
- Treads special designs are also available, including shelf gratings and sun protection gratings. Manufactured in accordance with DIN 24531-1. Consult manufacturer for details.
Construction:
- In slotted bearing bars, stable cross bars are inserted.
- The high pressure and the slit formation of the bearing bars ensure a secure connection for a warp-resistant structure.
General information
Color | Silver |
Finish | Pickled |
Material | Stainless steel Guidance for specification option: 1.4301 and 1.4571. Manufacturer guidanceMay not be available in all sizes, consult manufacturer for details. |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L30/20 Stairs L30/250 Metal stairs L30/30 Proprietary stairs L30/310 Proprietary stairs L30/45 Ramps/ walkways L30/460 Walkways L30/470 Ramps Q10/312 Footway gratings |
Product range |
Specification data - Stainless steel open bar metal gratings
Size | |
Length x width | Manufacturer guidance
|
Bar thickness | Manufacturer guidance
|
Binding | Guidance for specification option:
Manufacturer guidanceDependent on type specified. Consult manufacturer for details. |
Fixing | Manufacturer guidanceConsult manufacturer for details. |
Type | Anti-slip. Guidance for specification option:
Heavy-duty. Guidance for specification option: Can be manufactured for many applications depending on the clear span. Narrow-pitch. Guidance for specification option:
Standard. Treads. Guidance for specification option:
|
BaseMaterial | Stainless steel 1.4301. Stainless steel 1.4571. Manufacturer guidanceMay not be available in all sizes, consult manufacturer for details. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
