Lindner Raised Floor Pedestals Type H
Verified by manufacturer 3 months ago
System floor pedestal type H1
System floor pedestal type H1
ISO 14001 Environmental Management Systems
Certificate type
EnMS ISO 50001
Certificate type
ISO 9001 Quality Management
Certificate type

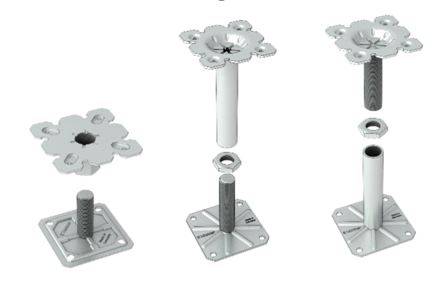

System floor pedestal type H made from galvanized steel.
Application
To be used as a substructure with raised access floor systems.
Description
The system floor pedestal type H is made from galvanized steel in combination with gaskets and optionally stringers type RO, RL and RM.
The system floor pedestals are made by Lindner, from the design to the production including galvanization.
The system floor pedestal type H creates the cavity for taking up installations. The system floor pedestal type H offers flexibility from its high loadability and the high adjustment range. The pedestals are infinitely adjustable on height and can therefore take up irregularities of the subfloor.
Features and benefits:
- High loadability.
- Easy installation.
- High corrosion protection.
- Chrome(VI)-free.
- Zinc-whisker free.
- Can be combined with stringers type RO, RL and RM.
General information
Color | Silver |
Finish | Galvanized |
Material | Zinc Steel |
Shape | Square |
Height | Bespoke Guidance for specification option: 13–1458 mm. |
Warranty description | 25 year |
Uniclass | |
CAWS | K41/130 Raised access floor K41/130 Raised access floor |
Product range |
Specification data - Access floor pedestals
Class | To BS EN 12825, Class 5.Guidance for specification option: Concentrated load: 5 kN. |
Pedestal type | Raised floor pedestal. |
Materials | Zinc-plated steel. |
Model | Adjustable. |
Height | 13–55 mm. |
Reaction to fire | To BS EN 13501, A1. Guidance for specification option: Non-combustible. |
Stringers | Not required. Type RO. Type RL. Type RM. |
Breaking load | To BS EN 12825, ≥20 kN (breaking load centric); ≥10 kN (breaking load eccentric). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Zinc Steel |
Manufacturing plant location | |
Expected Life | 50 year |
