LLumar Dual Reflective Solar Control Window Film

Verified by manufacturer 4 months ago

17% Light Transmission/ 0.28 G-value - DR15 SRCDF

LLumar by EASTMAN Variant:

Solar Control Window Films to improve energy efficiency, reduce overheating, and reduce glare. Dual reflective films are less reflective on the internal facing side, creating a softer appearance.

Jump to:
+44 (0)1279 419191 Website

Application

Dual reflective window film suitable for commercial and domestic glazing applications to provide solar control.

Description

A range of window films designed to improve the solar and thermal properties of existing glazing. Can be used to reduce overheating and alleviate glare issues. Can be used to improve energy efficiency by reducing the load on HVAC systems.


Dual Reflective technology pairs an external reflective appearance with a neutral internal appearance, giving a more subtle internal look.


Features and benefits:

  • Several shades.
  • Reduce overheating.
  • Reduce glare.
  • Dual reflective appearance.
  • Low embodied carbon
  • Energy efficiency.

General information

Color

Blue

Guidance for specification option:

Transparent, with slight blue hue. Reflective External Finish.

Grey

Guidance for specification option:

Transparent, with slight grey hue. Tinted external finish

Manufacturer guidance

Hue, rather than colour!

Finish

Reflective

Guidance for specification option:

External finish is reflective, internal is neutral tint/ hue

Manufacturer guidance

External finish is reflective, internal is neutral tint/ hue

Material

Polyester

Shape

Other

Guidance for specification option:

Roll.

Length

30500 mm

Width

1520 mm

1820 mm

Height

0.04 mm

Warranty description

Ten year

Manufacturer guidance

The Manufacturer’s limited warranty for the Dual Reflective range is 10 years. Certain restrictions apply.

Uniclass

Pr_25_57_51_60 Plastics window filmsPrimary

CAWS

L40/610 Window film

L40/95 Window film

Specification data - Plastics window films

Purpose

Solar control.

Fire performance

To EN 13501-1, B-s1, d0.

Material

Film.

Colour

Warm Grey.

Dimensions

30.5 m x 1520 mm.

30.5 m x 1820 mm.

Solar heat gain coefficient

G-value: 0.28.

SolarReflectance

34%.

SolarTransmittance

15%.

Light transmission

17%.

Solar Control

Total solar energy rejected: 72%.

Glare reduction

81%.

Sustainability data

Country of material origin

United States

Country of product manufacture

United States

Material

Polyester

Manufacturing plant location

Expected Life

15 year

Literature

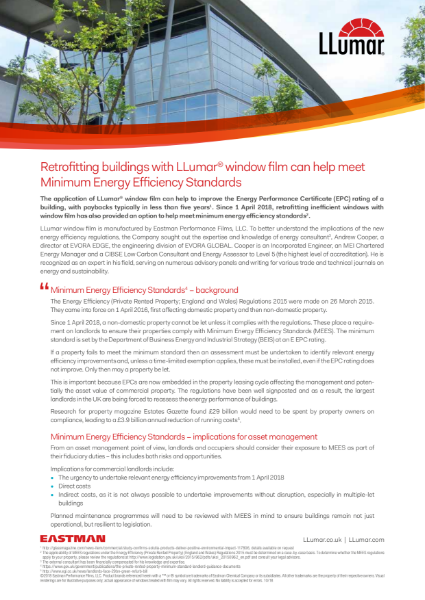

LLumar window films and MEES

LLumar window films and MEES

LLumar window films and ESOS

LLumar window films and ESOS

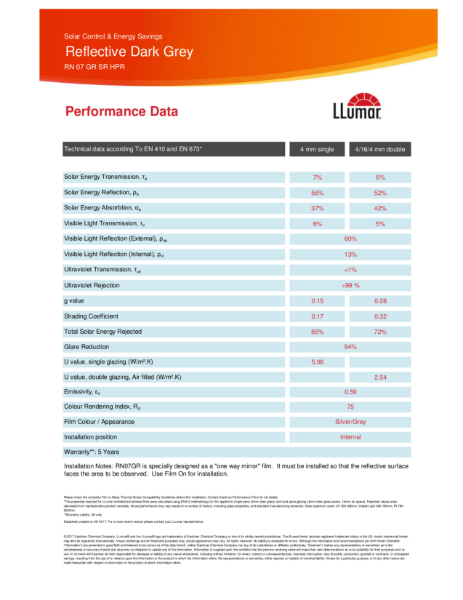

Data Sheet - High Dual Reflective Window Film - LLumar RN07 GR SR HPR

Data Sheet - High Dual Reflective Window Film - LLumar RN07 GR SR HPR

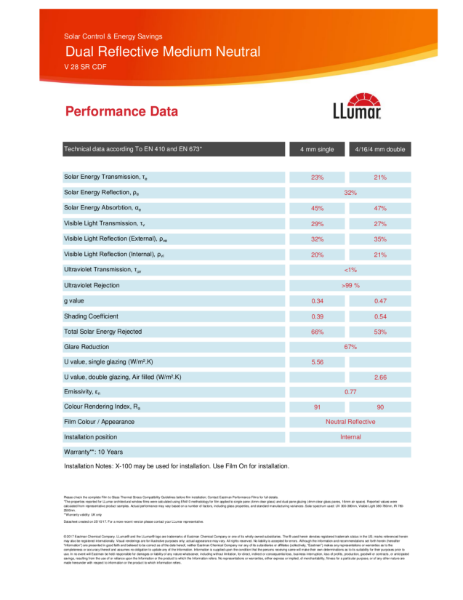

Data Sheet - Medium Dual Reflective Window Film - LLumar V28 SR CDF

Data Sheet - Medium Dual Reflective Window Film - LLumar V28 SR CDF

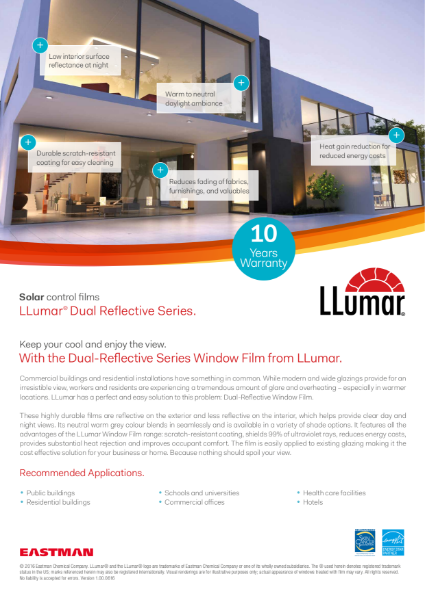

LLumar Dual Reflective Window films - DR Range Overview

LLumar Dual Reflective Window films - DR Range Overview

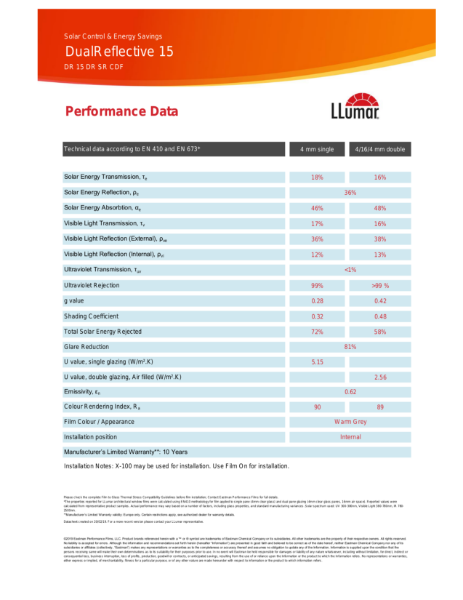

Data Sheet - High Dual Reflective - LLumar DR15 DR SR CDF

Data Sheet - High Dual Reflective - LLumar DR15 DR SR CDF

Data Sheet - Medium Dual Reflective - LLumar DRN25 DR SR CDF

Data Sheet - Medium Dual Reflective - LLumar DRN25 DR SR CDF

Data Sheet - Light Dual Reflective - LLumar DRN35 DR SR CDF

Data Sheet - Light Dual Reflective - LLumar DRN35 DR SR CDF

Data Sheet - High Dual Reflective - LLumar V14 SR CDF

Data Sheet - High Dual Reflective - LLumar V14 SR CDF

Data Sheet - Medium Dual Reflective - LLumar V28 SR CDF

Data Sheet - Medium Dual Reflective - LLumar V28 SR CDF

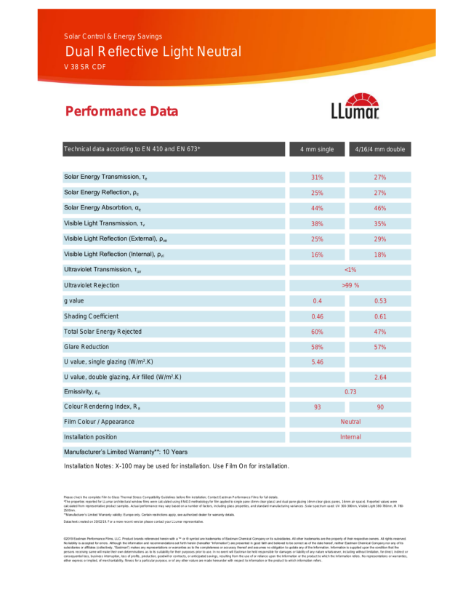

Data Sheet - Light Dual Reflective - LLumar V38 SR CDF

Data Sheet - Light Dual Reflective - LLumar V38 SR CDF

Case Study Booklet

Case Study Booklet
