Loft Eaves Access Door

Verified by manufacturer 5 months ago

Access Building Products Ltd

Zintec steel access door with fire rating of 60 minutes (tested on the face side only, following BS476: Part 22: 1987) and provides sound reduction of 36 dB.

Jump to:
+44 (0)1423 874753 Website

Application

Ceiling mounted loft eaves access door.

Description

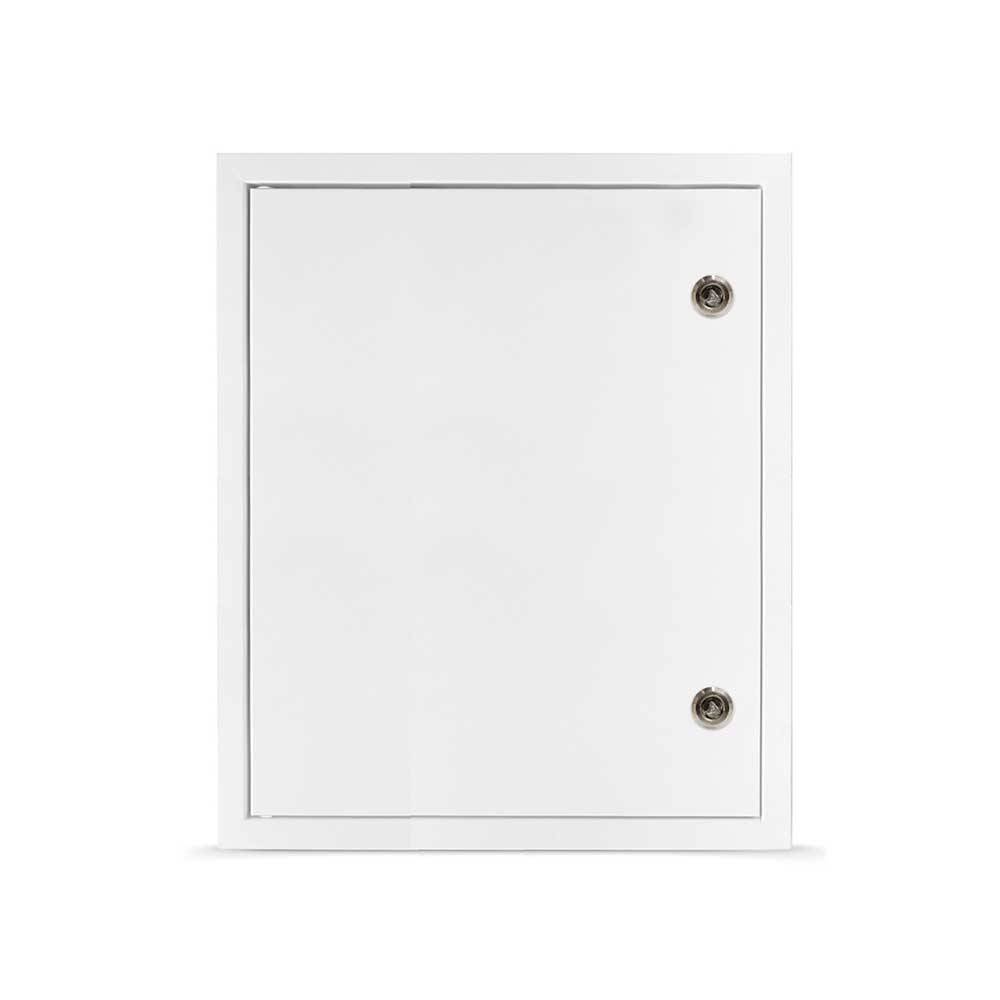

Zintec steel access door which helps to utilize the storage space in loft eaves while maintaining insulation and draft protection.


Eaves access doors offer high insulation and have undergone rigorous air testing with a U-Value of only 0.35 W/(m²·K) (compliant with the current regulations for lofts in accordance with Part L of UK Building Regulations).

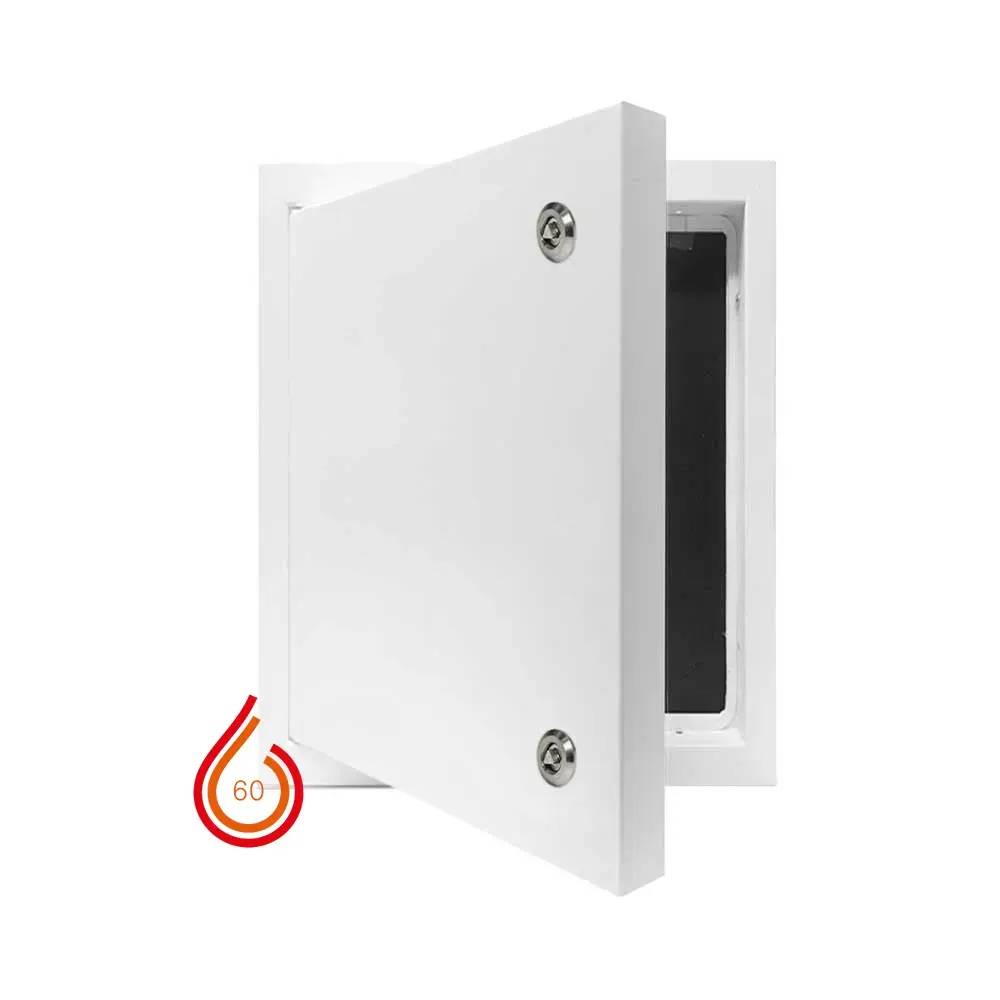

The entire range has a fire rating of 60 minutes (tested on the face side only, following BS476: Part 22: 1987) and provides sound reduction of 36 dB.


Each eaves door is handcrafted in the United Kingdom, delivered pre-finished and ready for installation.


Features and benefits:

  • Fabricated from Zintec steel.
  • Insulated with mineral wool slab and fitted with draught seals between the door and the frame and on the back edge of the frame.
  • Finished in a durable white powder-coat, colour RAL 9016.
  • Fitted with two quarter turn locks with chamfered cam to provide compression between door and seal when operated. Key to suit provided.
  • Four sizes available.
  • 60 minute fire rating according to BS 476: Part 22 :1987.
  • U-Value of 0.35 W/(m²·K).
  • Sound reduction of 36 dB.

General information

Color

White

Finish

Powder-coated

Material

Zintec steel

Mineral wool

Shape

Rectangle

Length

900 mm

Width

400 mm

550 mm

600 mm

750 mm

Height

25 mm

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

L20/60 Doors

L20/630 Hatches

K10/430 Access panels

Specification data - Access panels

Fire performance

-

Fire resistance

60 minutes to BS 476-22.

Position

Ceiling-mounted.

Size

900 x 400 mm.

900 x 550 mm.

900 x 600 mm.

900 x 750 mm.

Manufacturer guidance

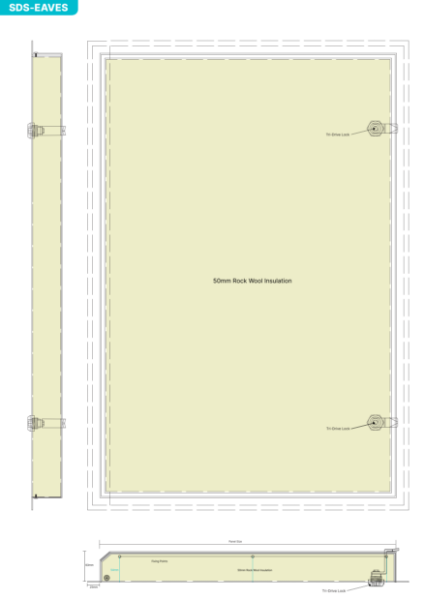

Add +5 mm to this size when creating the structural opening See the manufacturers technical drawing tab for more information.

Frame

Exposed picture frame type.

Panel

-

Material

Steel.

Guidance for specification option:

Zintec.

Integral finish

Powder-coated.

Latch or lock type

Quarter turn lock.

Guidance for specification option:

Fitted with two no. quarter turn lock with chamfered cam to provide compression between door and seal when operated. Key to suit provided.

Operation

Hinges, downward opening.

Guidance for specification option:

Hinged on the 900 mm edge.

Integral accessories

Guidance for specification option:

Consult manufacturer and insert requirements.

Colour

Traffic white, RAL 9016.

Insulation

Mineral wool slab.

Guidance for specification option:

Fitted with draught seals between the door and the frame and on the back edge of the frame.

U-value

0.35 W/(m²·K).

Sound reduction

36 dB.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

40 %
