M70 Residential Door
Verified by manufacturer 2 months ago
BSI Kitemark
Certificate type
PVC-U Residential & French Door System.
Application
Suitable for all building types.
Description
VEKA M70 Residential and French Doors offer a stunning and functional product for any type of building. Integrated with a 70 mm multi-bevelled profile system, with a clean contemporary design; these doors provide the increased thermal efficiency, security, durability associated with PVC-U, with all the choice and versatility of a more traditional solution.
Features and benefits:
- Large assortment of colours and woodgrain options.
- Sculptured or bevelled options available.
- Complies to BS EN 12608-1+A1:2020/ PAS 24:2022.
General information
Color | Beige Black Blue Brown Cream Manufacturer guidanceAvailable in a large assortment of colours and woodgrain options from the Variations range and SPECTRAL. |
Finish | Coated Woodgrain |
Material | PVC-U |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Unplasticized polyvinyl chloride (PVC-U) doorsets
Standard | External non-fire-rated doorset to BS 7412 and BS EN 12608-1. |
Configuration | Double-leaf, single-action.Single-leaf, single-action. |
Doorset size | Manufacturer guidanceConsult manufacturer and insert requirements.
|
Performance | |
Thermal | 1.3 W/m²K.Guidance for specification option: Achieves U-values as low as 1.3 W/m²K using double glazing. 0.98 W/m²K.Guidance for specification option: Achieves U-values as low as 0.98 W/m²K using triple glazing. |
Intruder resistance | |
Minimum requirement | To PAS 24. |
Conformity | Certification by accredited third-party certification body. Type testing not permitted. |
Frame | |
Materials | PVC-U. |
Threshold | Not required.Standard low threshold.Guidance for specification option: Residential doors only (not available on french doors). Part M low threshold.Guidance for specification option: Residential doors only (not available on french doors). |
Perimeter seals or inserts | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Finish and colour | Manufacturer guidanceConsult manufacturer and insert requirements. Available in a large assortment of colours and woodgrain options from the Variations range and SPECTRAL*. * SPECTRAL is only available on bevelled or flat surfaces. |
Installation fasteners | Manufacturer's standard. |
Frame accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Door leaf | |
Thickness | Manufacturer's standard. |
Perimeter seals | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Material | PVC-U. |
Finish | Manufacturer guidanceConsult manufacturer and insert requirements. Available in a large assortment of colours and woodgrain options from the Variations range and SPECTRAL*. * SPECTRAL is only available on bevelled or flat surfaces. |
Glazing | |
Type | Double glazed.Triple glazed. |
Beading | 28 mm bevelled.28 mm sculptured.36 mm bevelled.40 mm bevelled.44 mm bevelled. |
Hardware | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Perimeter seals | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Installation fasteners | Manufacturer's standard. |
Accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. Range of ancillary items available including:
|
Outer frame | 55 mm. 67 mm. 80 mm. |
Mid rails | 115 mm midrail. |
Sash | 115 mm door sash. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | PVC-U |
Manufacturing plant location | |
Recyclability | Through our advanced recycling process, each PVCu frame can achieve a potential lifetime of 350 years. VEKA Recycling Ltd offer a fully circular solution for PVCu waste management. Collected and processed in the UK, for use in the UK. |
Expected Life | 35 year Guidance for specification option: Through our closed loop process, we can recycle windows and doors up to 10 times. This means each frame can achieve a potential lifetime of 350 years. Manufacturer guidanceThrough our closed loop process, we can recycle windows and doors up to 10 times. This means each frame can achieve a potential lifetime of 350 years. |
Third party certifications
BSI Kitemark

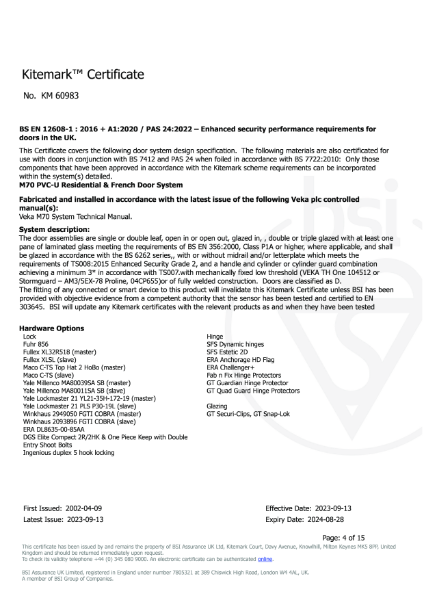

M70 PVC-U Residential Door Kitemark™ Certificate - No. KM 60983
Literature

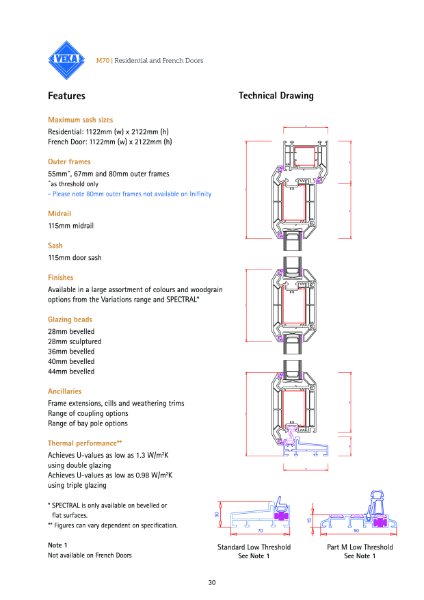

M70 Residential Door Specification
