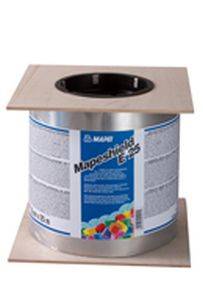

Mapeshield E25

Verified by manufacturer 8 months ago

Mapei (UK) Ltd

Self-adhesive zinc plates for galvanic cathodic protection against corrosion of reinforcement rods.

Jump to:
+44 (0)121 508 6970 Website

Application

  • Beams and columns.
  • Car parks.
  • Floor slabs.
  • Front edges of balconies.
  • Piles and abutments on bridges and viaducts.
  • Pre-fabricated reinforced concrete structures.

Description

Self-adhesive zinc plates applied directly on the surface of structures for galvanic cathodic protection against the corrosion of reinforcement rods in concrete.

It is particularly recommended for protecting reinforcement rods against corrosion in works of art which do not require repair and to reduce or block oxidation in works of art requiring repair.

General information

Color

Grey

Material

Zinc

Uniclass

Pr_35_31_68_99 Zinc platingPrimary

CAWS

C42/315 Protective coating to reinforcement

Specification data - Zinc plating

Product Reference

Mapeshield E25

Width

250 mm.

Length

25 m.

Colour

Metallic grey.

Thickness

Zinc plate: 250 µm.

Adhesive: 800 µm (± 200).

Yield strength

>130 N/mm² (longitudinal), >150 N/mm² (transversal).
