Markilux 6000 Awning

Verified by manufacturer 4 months ago

Roché Systems Ltd

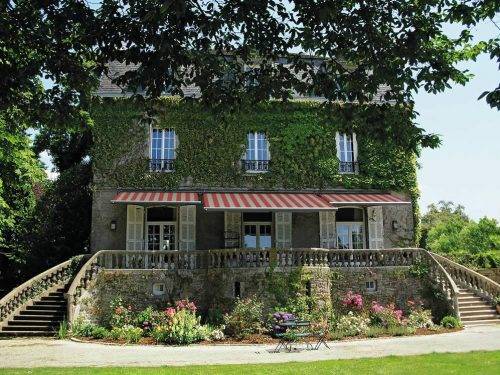

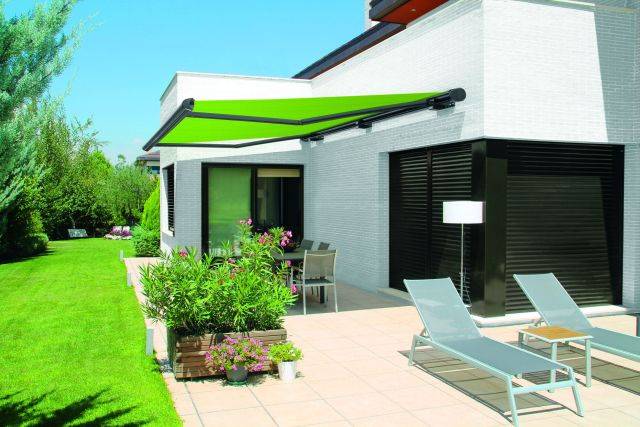

The Markilux 6000 is an award-winning full cassette awning made from forged aluminium. The Markilux 6000 can be up to 13.9 m wide with up to a 3.5 m projection when coupled.

Jump to:
BOS
03330347967 Website

Description

A full cassette awning with an appealing design. Customizable by mixing and matching the colour of the cassette with that of the end cap trim and the end cap insert. The cassette and frame are powder coated; the cover profile is in the same colour as the cassette, this gives the unit a closed appearance even when the awning is extended. Comes with an elegant bracket cowling.


Features and benefits:

  • When closed the folding arms are protected from the weather by the cassette.
  • Unique arm technology with power transference by way of the high tensile strength bionic tendon made of high-tech fibres, achieving at least 50 000 flexions in tests by the Fraunhofer Institute.
  • Front profile with integrated gutter and hidden water drainage spouts.
  • The spring tensioners – which have been matched to the arm length – provide ideal cover tension.
  • Simple pitch adjustment via the bracket without the need to readjust the front profile.

General information

Color

Other

Guidance for specification option:

RAL available for surcharge.

Finish

Powder-coated

Material

Aluminium

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Five year

Uniclass

Pr_30_59_07_05 AwningsPrimary

CAWS

B91/330 Canopy

Product range

Patio Awnings

Specification data - Awnings

Size (width x depth)

Guidance for specification option:

13.9 x 3.5 m (maximum size when coupled), insert requirements.

Manufacturer guidance

  • Awning width: 250, 300, 350, 400, 450, 500, 550, 600, 650 or 700 cm.
  • Awning height: 150, 200, 250, 300, 350 or 400 cm.


  • Cassette in the standard version: depth 255 mm, height 165 mm.
  • Cassette with drop valance: depth 317 mm, height 165 mm (without brackets).
  • Single unit: minimum width 205 cm at the smallest projection of 150 cm, maximum width 700 cm at the largest projection of 400 cm.
  • Also available as a coupled unit.
  • One piece fabric cover or junction roller on coupled units to a certain size.

Frame

-

Material

Aluminium.

Guidance for specification option:

Awning profile and folding arms: extruded aluminium and powder coated (moving parts are drop-forged aluminium). Pivot bolts are stainless steel.

Canopy

-

Material

Sunvas.

Guidance for specification option:

Standard. fabric range no 301.. / 309..–315.

Sunsilk.

Guidance for specification option:

Standard. fabric range no 324.. / 325.. / 328../ 369..

Sunbow.

Perla FR.

Guidance for specification option:

Optional. fabric range no 374.. / 375..

Colour and pattern

-

Manufacturer guidance

Available in non-standard RAL colours; insert requirements.

Valance detail

None.

Valance.

Guidance for specification option:

Drop valance: Height: 150 or 190 cm. Maximum projection: 350 cm.

Headrail

-

Material

Galvanized steel.

Guidance for specification option:

Round roller tube 85 mm diameter with keyway, galvanized steel – excellent stability ensures near perfect cover performance even at the largest widths, the cassette side cap is die-cast aluminium, powder coated.

Colour

Traffic white RAL 9016.

Metallic aluminium RAL 9006.

Grey brown, similar to RAL 8019.

Off-white textured finish, 5233.

Stone grey metallic, 5215.

Anthracite metallic, 5204.

Havana brown textured finish, 5229.

Operation

-

Mode

Hard-wired motor.

Guidance for specification option:

Optional.

Radio-controlled motor io, 868 MHz.

Guidance for specification option:

Optional.

Spring-assisted crank handle.

Guidance for specification option:

Optional.

Radio-controlled motor RTS, 433 MHz.

Guidance for specification option:

Optional.

Crank handle.

Guidance for specification option:

Standard, manual operation only possible up to a 6000 mm width.

Wind resistance

Beaufort 5 - 17–23 mph.

Accessories

None.

Wall sealing profile (effective up to a maximum awning pitch of 15°).

Folding arm technology with bionic tendon.

Guidance for specification option:

io receiver is integrated, RTS receiver is external.

Only 2.5 kW infrared heater io or RTS.

LED spotline – light bar 110 x 70 mm at 1800 mm long with 3 W LED spotlights.

Guidance for specification option:

io receiver is integrated, RTS receiver is external.

LED spotline – light bar 110 x 70 mm at 3000 mm long with 5 W LED spotlight.

Guidance for specification option:

io receiver is integrated, RTS receiver is external.

Automatic controls (light, wind, rain).

Shadeplus.

LED Lines available in the arms.

Fixing

Face fixture bracket 180 mm, 5–35°.

Face fixture bracket 180 mm, 36–70°.

Spreader plate A 430 × 160 × 12 mm.

Spreader plate B 300 × 400 × 12 mm.

Stand-off bracket 80–300 mm.

Show more

Manufacturer guidance

  • Face fixture, top fixture, eaves fixture.
  • Extruded aluminium, powder coated.
  • Brackets with elegant cowling made of plastic, powder coated.
  • Pitch range 5°–35° or 36°–70°, infinitely adjustable.
  • Spacer plates, stand-off brackets and other accessories are available.

Caps

Polished chrome.

Stainless steel insert.

Colour as frame.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Germany

Material

Aluminium
