Markilux 970 Awning

Name: Markilux 970 Awning
Brand: Roché Systems Ltd
SKU: 7XCzpeZXv7PgHABJq9CAhF

Verified by manufacturer 4 months ago

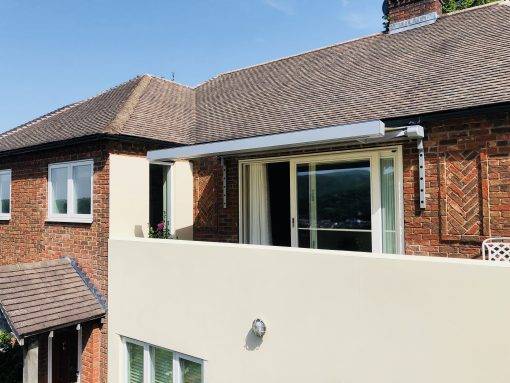

The Markilux 970 is a contemporary full cassette awning made from forged aluminium and optional integrated LED lighting. The Markilux 970 can be up to 6 m wide with up to 3 m projection or 5 x 3.5 m.

Jump to:

BOS

03330347967 Website

Application

Suitable for domestic and commercial settings including hotels, restaurants, cafes, shopfronts, schools, hospitals and pubs.

Description

Angular cassette awning built in an unobtrusive style, with ingenious accessory option and unique fixture technology. Unique arm technology with power transference by way of the high tensile strength bionic tendon made of high-tech fibres, achieving at least 50 000 flexions in tests by the Fraunhofer Institute.

Features and benefits:

Option of a drop valance up to a projection of 300 cm – vertical protection against low-lying sun, wind and inquisitive glances integrated into the front profile, can be operated manually or by motor.
Option of directional LED Line or spotlights fitted to the underside of the cassette – provide an appealing atmosphere in the evening.
Various front panel colours can be combined with the standard awning frame colours.
The special cassette profile surrounds the roller tube even when the awning is extended and lends the awning a harmonious, closed appearance. The straight lines with smooth front panel suit a minimalistic building style.
The design characteristics allow the awning to be fitted into niches and reveals. The virtually invisible face and top fixture brackets mean the awning cassette fits flat against the building.
The tilt device technology with integrated windlock mechanism functioning as arm bearers ensures the awning closes cleanly regardless of the pre-set pitch.

General information

Color	Other Guidance for specification option: RAL available for surcharge.
Finish	Powder-coated
Material	Aluminium
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Five year

Uniclass	Pr_30_59_07_05 AwningsPrimary
CAWS	B91/330 Canopy

Product range	Patio Awnings

Specification data - Awnings

Size (width x depth)	6 x 3 m. 5 x 3.5 m. Manufacturer guidance Cassette in the standard version: depth 266 mm, height 140 mm. Single unit: minimum width 250 cm at the smallest projection of 150 cm maximum width 500 cm at the largest projection of 350 cm or 600 cm at a maximum projection of 300 cm.
Frame	-
Material	Aluminium. Guidance for specification option: Awning profile and folding arms: extruded aluminium and powder coated (moving parts are drop-forged aluminium). Pivot bolts are stainless steel.
Canopy	-
Material	Sunvas. Guidance for specification option: Standard. fabric range no 301.. / 309..–315. Sunsilk. Guidance for specification option: Standard. fabric range no 324.. / 325.. / 328../ 369.. Sunbow. Perla FR. Guidance for specification option: Optional. fabric range no 374.. / 375.. Manufacturer guidance Awning width: 250, 300, 350, 400, 450, 500, 550 or 600 mm. Awning height: 150, 200, 250, 300, 350 mm.
Headrail	-
Material	Galvanized steel. Guidance for specification option: Round roller tube 85 mm diameter with keyway, galvanized steel – excellent stability ensures near perfect cover performance even at the largest widths, the cassette side cap is die-cast aluminium, powder coated.
Colour	Traffic white, RAL 9016. Metallic aluminium, RAL 9006. Grey brown, similar to RAL 8019. Off-white, textured finish, 5233. Stone grey metallic, RAL 5215. Anthracite metallic, RAL 5204. Havana brown, textured finish, RAL 5229.
Operation	-
Mode	Hard-wired motor operation. Radio-controlled motor io, 868 MHz. Spring-assisted crank handle. Radio-controlled motor RTS, 433 MHz. Crank handle. Guidance for specification option: Standard, manual operation only possible up to a 6000 mm width.
Wind resistance	Beaufort 5 - 17–23 mph.
Accessories	None. Only 2.5 kW infrared heater io or RTS. Guidance for specification option: io receiver is integrated, RTS receiver is external. LED spotline – light bar 110 x 70 mm at 1800 mm long with 3 W LED spotlights. Guidance for specification option: With integrated io radio receiver or external RTS receiver. LED spotline – light bar 110 x 70 mm at 3000 mm long with 5 W LED spotlight. Guidance for specification option: With integrated io radio receiver or external RTS receiver. Automatic controls (light, wind, rain). Shadeplus. LED Line or spotlights available on the underside of the awning cassette.

Front panel	Anodised aluminium E6/EV1. Sulphur yellow RAL 1016. Traffic red RAL 3020. Pitch black RAL 9005. Yellow green RAL 6018. Traffic purple RAL 4006. Show more
Fixing	Face fixture bracket 100 mm L. Face fixture bracket 100 mm R. Spreader plate A 430 x 160 x 12 mm. Spreader plate B 300 x 400 x 12 mm. Spreader plate A 310 x 130 x 12 mm. Stand-off bracket 80–300 mm. Top fixture bracket 90 mm L. Top fixture bracket 90 mm R. Eaves fixture bracket 90 mm L, 150 mm plate. Eaves fixture bracket 90 mm R, 150 mm plate. Eaves fixture bracket 90 mm, 270 mm plate. Flat plate and angled bracket for eaves fixture, machine finish aluminium, 500 mm plate. Spreader plate 260 x 60 x 12 mm for eaves fixture bracket 90 mm. Angled profile for eaves fixture 100 x 100 x 12 mm. Show more Manufacturer guidance Extruded aluminium, powder coated. Awning pitch adjustment: 5–30°.

Sustainability data

Contains Red List materials	No
Country of product manufacture	Germany
Material	Aluminium

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1

Literature

Markilux Commercial Projects Brochure

Markilux Awnings For Patio and Balcony
