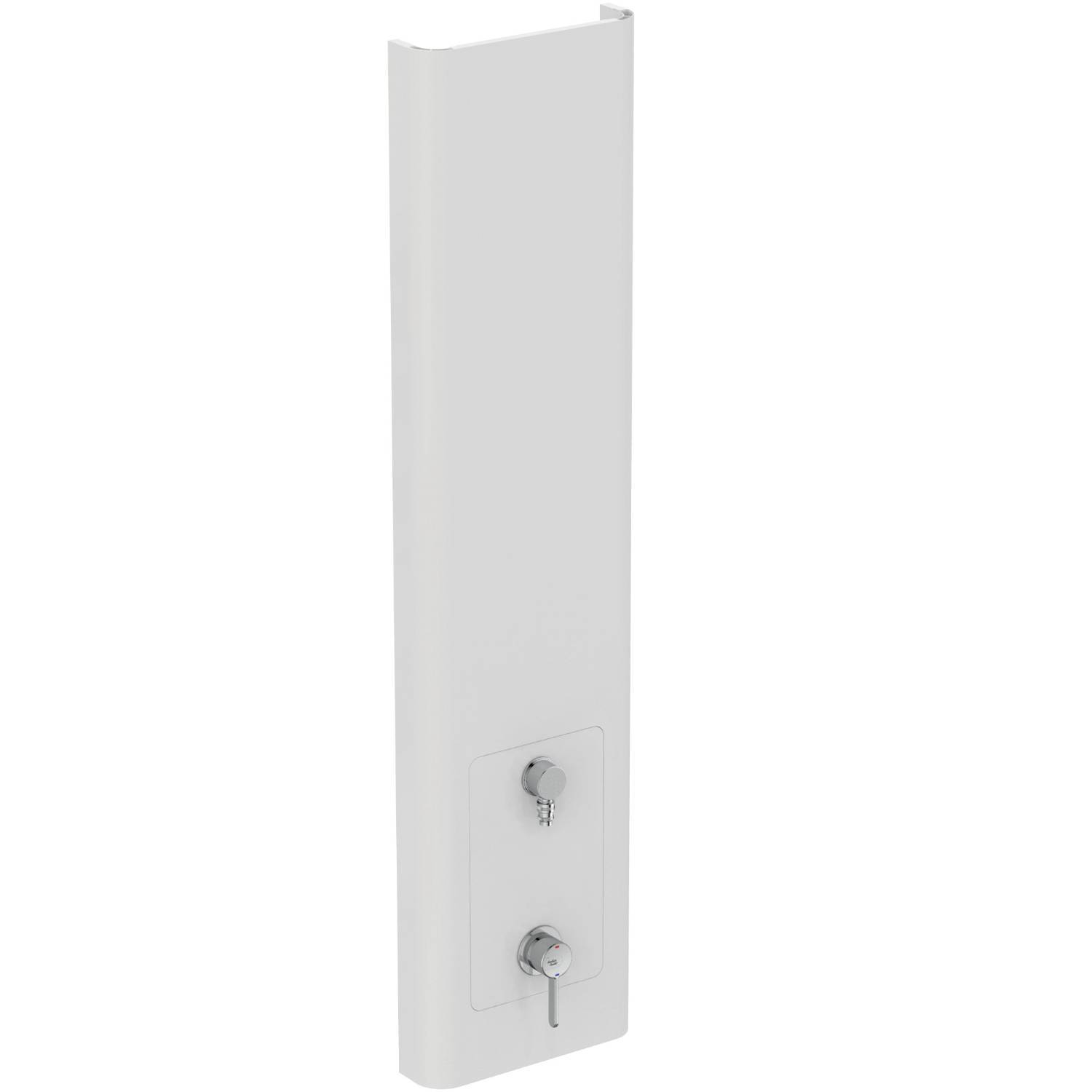

Markwik 21+ Shower Panel With Thermostatic Valve, 1700mm
Verified by manufacturer today
EPD
Certificate type
A pre-plumbed shower panel with asequential thermostatic, lever operated, built-in shower valve, that offers an adjustable maximum blend temperature feature.
Application
Suitable for high pressure systems providing easy, safe and hygienic showering installations into healthcare environments.
Description
A pre-plumbed shower panel with asequential thermostatic, lever operated, built-in shower valve, that offers an adjustable maximum blend temperature feature.
Features and benefits:
- Includes pre-fitted sequential thermostatic shower valve (based on A4129AA).
- Easy clean antimicrobial polyvinyl chloride (PVC) sheet outer shell with removable access panel.
- Easy maintenance of shower valve and isolation valves.
- 1700 mm height for installations with ceiling heights of 2400 mm.
- Concealed 15 mm copper pipes to ceiling with hot recirculating loops.
- Cold recirculation loop possible with additional plumbing.
- Shower kit not supplied, consult manufacturer for more details on options.
- Top inlet installation.
- Cool body technology.
- Water and energy savings.
General information
Color | White Silver |
Finish | Anti-microbial |
Material | Polyvinyl chloride (PVC) Stainless steel |
Shape | Rectangle |
Length | 151 mm |
Width | 400 mm |
Height | 1700 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units N13/42 Shower mixer valves |
SKU Code | A7934AC |
GTIN/EAN | 4015413357173 |
Specification data - Shower fittings package
Classification data | |
Standards | |
Shower mixers | To EN 1717 and EN 200. |
Showerheads | To EN 1717 and EN 200. |
Approvals | Water Regulations Advisory Scheme (WRAS)-approved. TMV3. NSF Reg4 certified. |
Form | Wall-mounted, lever operated, asequential, thermostatic valve. |
Materials | |
Body | Metal. |
Finish and colour | PVC, white. Guidance for specification option: AC - white, RAL (9016). |
PressureRange | 0.2–5 bar. |
Net weight | 23.00 kg. |
Colour (Light reflectance value (LRV) | 84.54%. |
Sustainability data
Material | Polyvinyl chloride (PVC) Stainless steel |
Product certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Product certifications
EPD
EPD - Dual control and thermostatic fittings
Literature
Markwik 21+ Thermostatic SQ Shower Panels Brochure
