Application

Suitable for washdown toilet.

Description

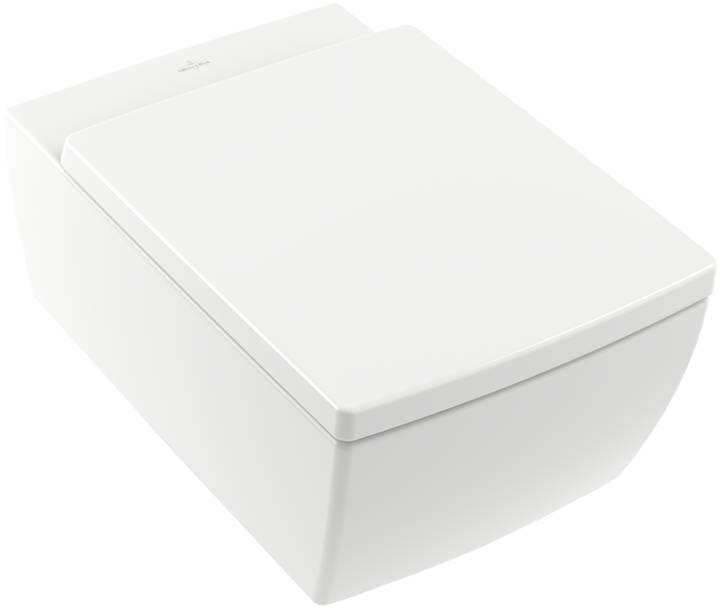

Rimless, washdown toilet.


Features and benefits:

  • DirectFlush, Registered design.
  • Sanitary ceramics.
  • Not suitable for installation with flush valves.
  • Includes fastening set "SupraFix 3.0"
  • LEED 4.
  • European water label 3,375 L.
  • With water-saving AQUAREDUCT® system: flush volume 3/ 4.5 litres.

General information

Color

White

Material

Ceramic

Guidance for specification option:

Sanitary ceramics

Shape

Rectangle

Width

375 mm

Uniclass

Pr_40_20_93_94 WC pansPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC pans

Standard

To BS EN 997.

Form

Wall-mounted, washdown.

Pan height

420 mm.

Materials

-

Body

Ceramic.

Guidance for specification option:

Sanitary ceramics.

Finish and colour

White.

Water supply, outlet and seat holes

-

Water supply

Back inlet.

Outlet

Horizontal.

Integral accessories

Toilet seat and cover (8M24S1).

Weight

24.4 kg.

Width

375 mm.

Depth

560 mm.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

SketchUp
-

1

ARCHICAD
-

1

Revit
-

1

OBJ
-

1

3Ds Max
-

1
