Metal Riser Door (Range 51) - Beaded Frame - 2 Hour Fire Rated From the Face & Rear - Metal Riser Door

Verified by manufacturer 2 months ago

Exitile Access Ltd

Metal riser door, two hour fire rated, beaded frame.

Jump to:
+44 (0) 24 7635 2771 Website

Application

Suitable for use in jointless plasterboard wall systems.

Description

Wall Access Panel, Supplied with the Ezi Fit Hinge System, 2 Hour Fire Rated, Metal Faced Door, 25mm wide Beaded Frame, 3 Point Locking System, Single Door Unit, Powder Coated RAL 9010 30% Gloss, the 1st dimension stated is the hinge side.


Features and benefits:

  • This panel has a Fire Test Certificate from both sides up to 2400x900mm in a Wall application covered by Fire Certificate Number WF429889 tested in accordance with BSEN 1634-1: 2014 and BSEN 1363-1:2012.
  • Manufactured from Zintec steel with a 1.2 mm thick door and a 1.5 mm frame.
  • The panel's door leaf is hinged by a fast fit hinge system which saves time on fitting compared to a full piano hinge.

General information

Color

White

Finish

Powder-coated

Material

Steel

Shape

Square

Rectangle

Length

Bespoke

Width

Bespoke

Guidance for specification option:

Can be made to any bespoke size between 300 x 300 mm (minimum) and 2400 x 0900mm (maximum).

Height

Bespoke

Guidance for specification option:

Can be made to any bespoke size between 300 x 300 mm (minimum) and 2400 x 0900mm (maximum).

Warranty description

Ten year

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

L20/630 Hatches

K10/430 Access panels

Specification data - Access panels

Fire performance

-

Fire resistance

120 minutes integrity to 1634-1:2008 and BS EN 1363-1:1999.

Guidance for specification option:

Up to 2400 x 900 mm.

Position

Wall-mounted.

Size

-

Manufacturer guidance

Insert requirements.

Frame

Bead for taping and jointing or skim coat plastering.

Panel

-

Material

Steel.

Integral finish

Powder-coated.

Latch or lock type

Low Level Security: 3 Way Lock.

Medium Level Security: Key Retaining Lock

High Level Security: 3 Way Euro Profile Cylinder Lock.

Integral accessories

Intumescent sealing strips to frame.

Colour/ Finish

RAL 9010, 30% gloss.

Other.

Guidance for specification option:

Other colours are available on request. Consult manufacturer and insert requirements.

Sustainability data

Country of product manufacture

United Kingdom

Literature

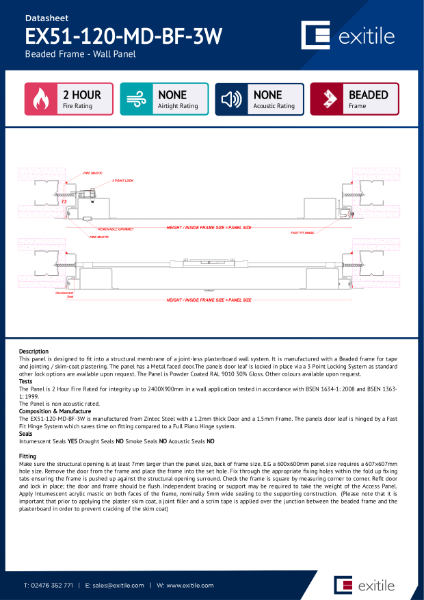

Datasheet - Riser Door (Range 51) - Beaded Frame - 2 Hour Fire Rated

Datasheet - Riser Door (Range 51) - Beaded Frame - 2 Hour Fire Rated

Product Page - EX51 Riser Door Range

Product Page - EX51 Riser Door Range
