Metric Air Bricks – Available with Rytons telescopic airliner or periscope underfloor ventilator. 220mm x 72mm rectangular. Cast Iron, external, or internal ventilation airbrick.

Verified by manufacturer 2 months ago

Air 14F Cast Iron

Britannia Metalwork Services Ltd Variant:

Cast iron air bricks, compatible with all standard plastic vents.

Jump to:
+44(0)1242820582 Website

Application

Suitable for internal and external use.

Description

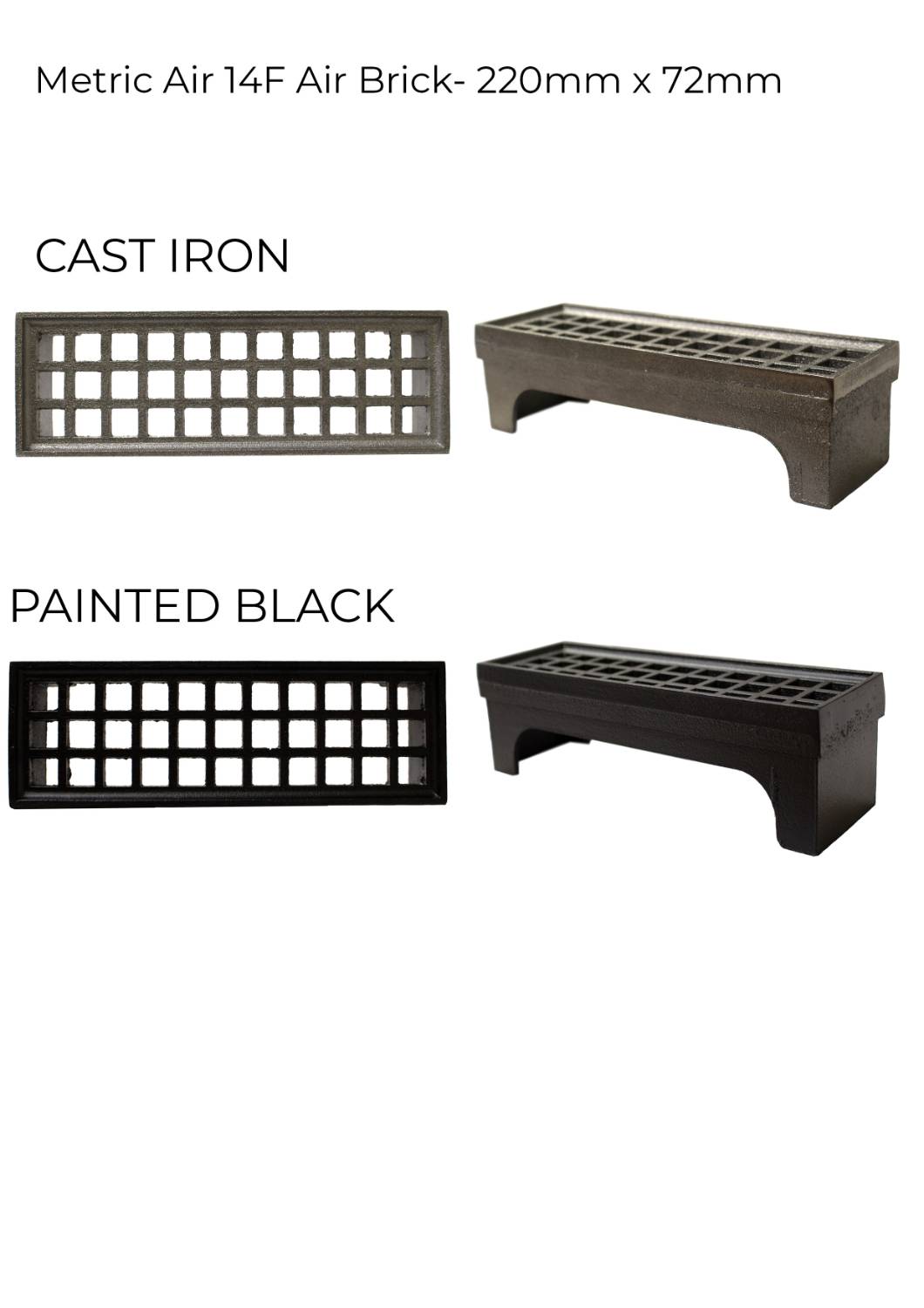

Metric Air 14F Air brick is available in cast iron.


Features and benefits:

  • Available in cast iron with a choice of finishes.
  • Can be painted to a specific RAL colour, subject to an additional fee.

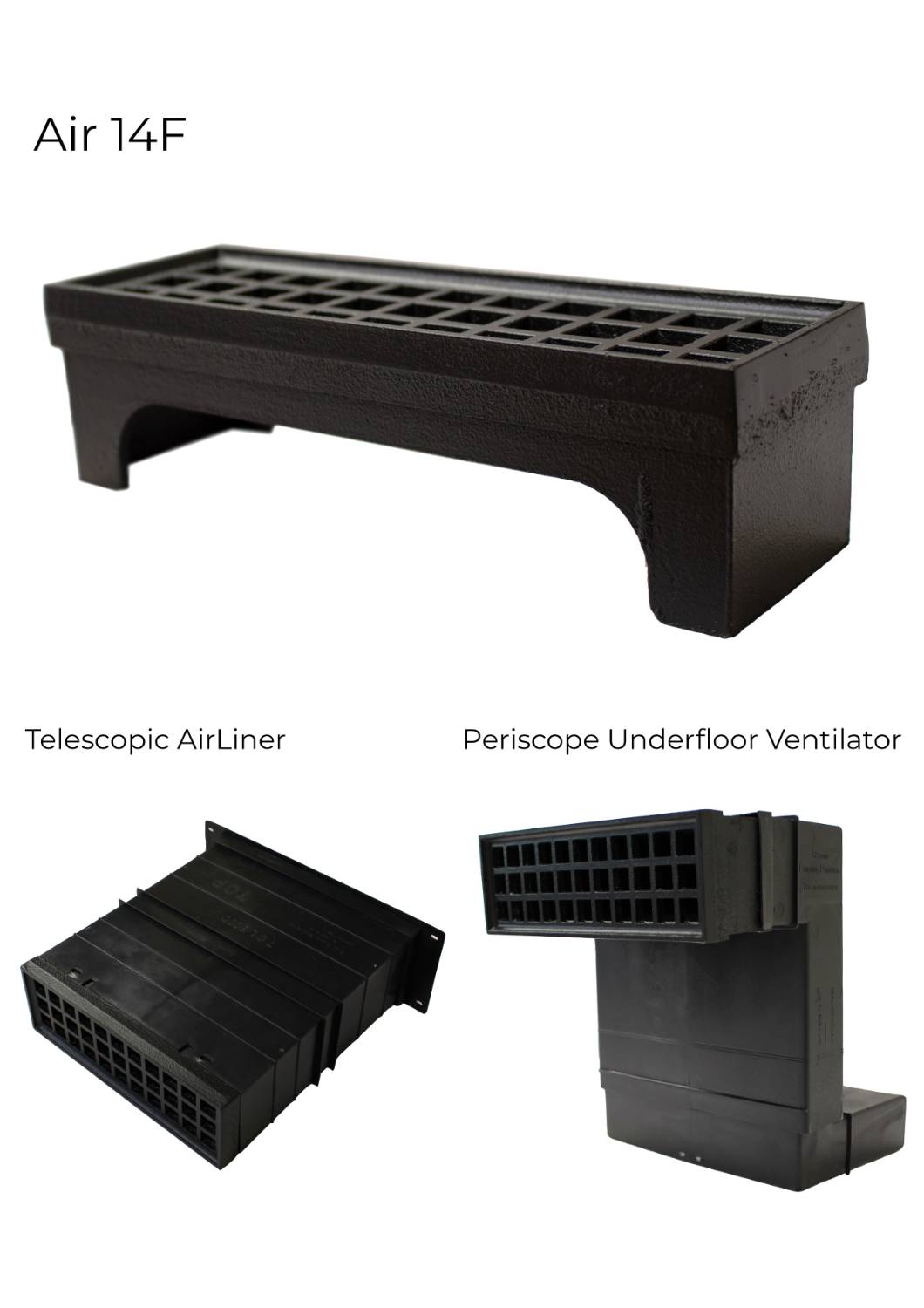

  • Available with Ryton's telescopic airliner or periscope underfloor ventilator.
  • Special colour matches are available and are subject to minimum order levels.


For compliance and specification information of the vents, please refer to the Rytons website:

https://rts.vents.co.uk/blog/product-details/rytons-9x3-telescopic-airliner-tcl8000/

https://rts.vents.co.uk/blog/product-details/rytons-periscope-underfloor-ventilator-pufv/

General information

Color

Black

Other

Finish

Primed

Material

Cast iron

Shape

Rectangle

Length

220 mm

Width

72 mm

Height

60 mm

Uniclass

Pr_35_90_50_03 AirbricksPrimary

CAWS

F30/160 Airbricks in external walling

F30/15 Airbricks in external walling

Specification data - Airbricks

Apertures

Square hole.

Work sizes

220 x 72 mm.

Material

Cast iron.

Colour

Black.

RAL.

Guidance for specification option:

Can be painted to a specific RAL colour, subject to an additional fee. Consult manufacturer and insert requirements.

Match adjoining masonry.

Guidance for specification option:

Special colour matches are available and are subject to minimum order levels. Consult manufacturer and insert requirements.

Depth

60 mm.

Free area

63.78 cm².

Guidance for specification option:

44.28%.

FaceArea

158.40 cm².

Configuration

Air 14F Cast Iron.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Cast iron

Recyclability

96

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Literature

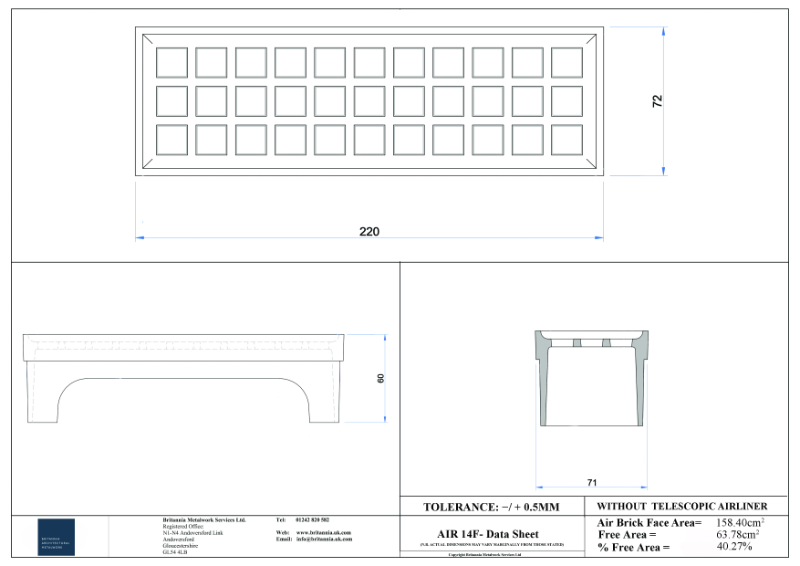

Air 14F Air Brick Datasheet Without Telescopic Airliner

Air 14F Air Brick Datasheet Without Telescopic Airliner

Brochure: CAST IRON AIRBRICK AND INTEGRATED VENTILATORS

Brochure: CAST IRON AIRBRICK AND INTEGRATED VENTILATORS

Air 14F Air Brick Datasheet With Telescopic Airliner

Air 14F Air Brick Datasheet With Telescopic Airliner

Similar products from Britannia Metalwork Services Ltd

Air Bricks - cast iron and aluminium 9" x  3" (225 mm x 75 mm) standard, rectangular. External or internal ventilation airbrick. - Air Brick

Air Bricks - cast iron and aluminium 9" x 3" (225 mm x 75 mm) standard, rectangular. External or internal ventilation airbrick. - Air Brick

Air bricks - cast iron and aluminium 9" x  9" (225 mm x 225 mm) square.  External or internal ventilation airbrick.  - Cast Iron and Aluminium Air Bricks

Air bricks - cast iron and aluminium 9" x 9" (225 mm x 225 mm) square. External or internal ventilation airbrick. - Cast Iron and Aluminium Air Bricks

Air Bricks - cast iron and aluminium 9" x 6" (225 mm x 150 mm) rectangular. External or internal ventilation airbrick. - Cast Iron and Aluminium Air Bricks

Air Bricks - cast iron and aluminium 9" x 6" (225 mm x 150 mm) rectangular. External or internal ventilation airbrick. - Cast Iron and Aluminium Air Bricks

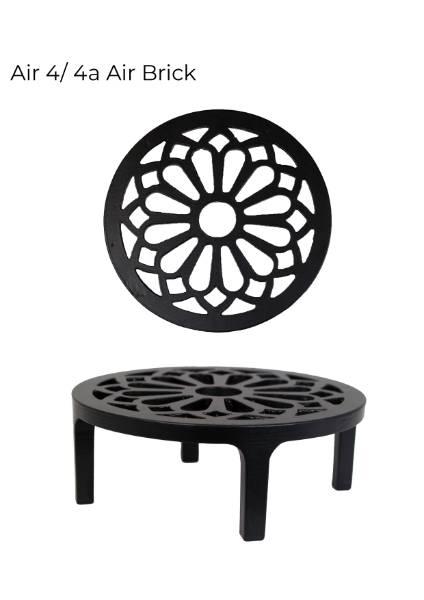

Air Bricks - Circular cast iron and aluminium. External or internal ventilation airbrick. - Cast Iron and Aluminium Air Bricks
