Mini Recessed Spots 1W/2W COB LED IP20, 10103B - Indoor Ceiling Luminaire
Verified by manufacturer 7 months ago

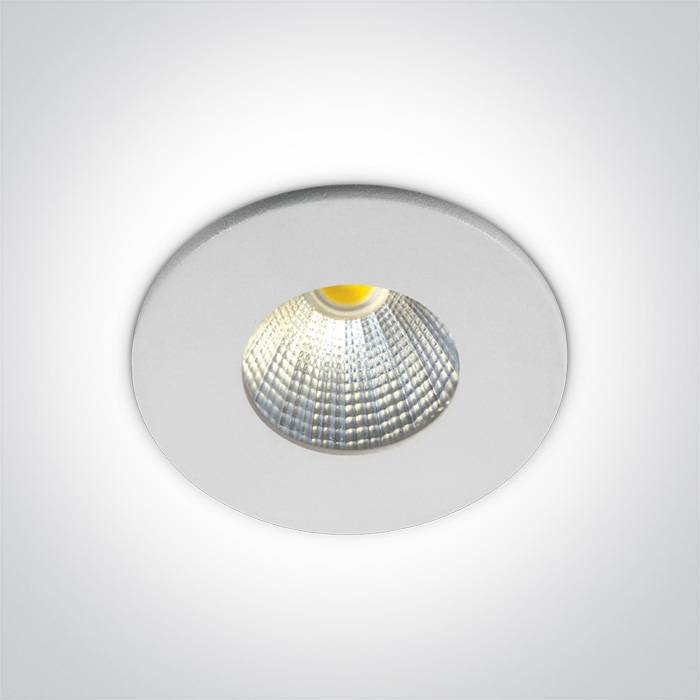

10103B/AL/C Aluminium LED ceiling recessed light, 4000K
10103B/AL/C Aluminium LED ceiling recessed light, 4000K
Certificate of Approval
Certificate type
1 W/ 2W LED IP20 recessed ceiling lights for indoor installation.
Application
Recessed ceiling luminaire suitable for indoor installation.
Description
1 W/ 2W LED recessed ceiling lights for indoor installation.
Features and benefits:
- Complies with EN 60598-1 and any other specific standards.
- Requires 350 or 700 mA driver.
- Dimmable option (driver).
- IP20.
- 3000 or 4000 K.
- Three housing colours.
General information

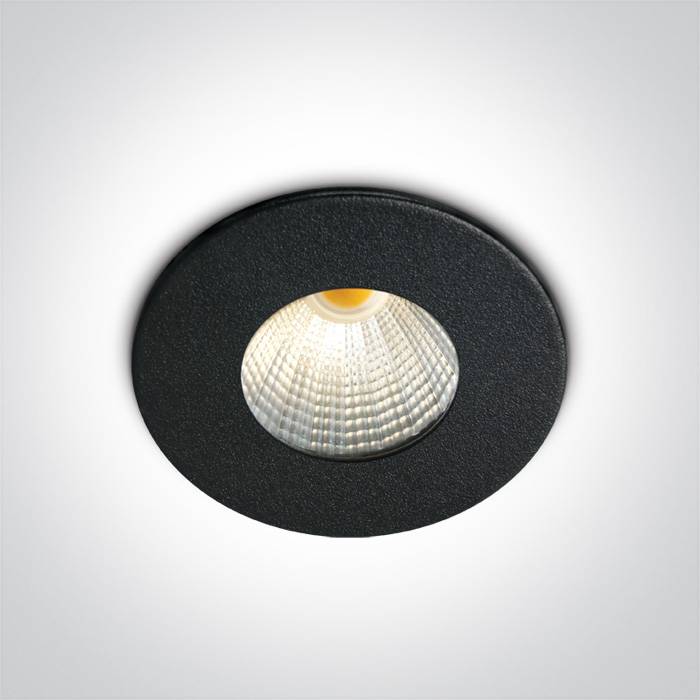

Color | White Silver Guidance for specification option: Aluminium. Black |
Material | Metal Guidance for specification option: Die cast. |
Shape | Circle |
Length | 42 mm Guidance for specification option: Diameter. |
Width | 42 mm Guidance for specification option: Diameter. |
Height | 35 mm |
Warranty description | Five year |
Uniclass | |
CAWS | V90/510 General purpose luminaires V90/510 Luminaires |
Specification data - Recessed luminaires
Standards | To EN 60598-1.Guidance for specification option: And any other specific standards; consult manufacturer for details. |
Luminaire description | Circular recessed LED ceiling light with aluminium housing.Guidance for specification option: Requires 35 mm-diameter cut-out hole, 50 mm deep. Bridgelux COB LED as standard. |
Classification | |
Ingress protection (minimum) | IP20. |
Circumstances of use | Normal.Guidance for specification option: Indoor use. |
Controlgear position | Remote within separate enclosure.Guidance for specification option: See Accessories for options. |
Nominal voltage | 220–240 V a.c.Guidance for specification option: 50/ 60 Hz. |
LED luminaires | |
Safety standard | Class III. |
Initial LED luminaire efficacy (minimum) | 100 lm/W. |
Wattage | 1 W/ 2 W. |
Colour temperature | 4000 K. |
Colour rendering index (Ra) | 90. |
Beam angle | 40°.Guidance for specification option: Fixed. |
Dimming protocol | Manufacturer's standard.Guidance for specification option: Dependent on driver specified; see Accessories. |
Accessories | 89004 350 mA constant current LED driver.Guidance for specification option: Power: 1–4 W. 89004A 700 mA constant current LED driver.Guidance for specification option: Power: 2–4 W. 89004AT 700 mA Triac dimmable LED driver.Guidance for specification option: Power: 2–4 W. 89004T 350 mA Triac dimmable LED driver.Guidance for specification option: Power: 1–4 W. Manufacturer guidanceIP66. 50/ 60 Hz. Consult manufacturer's literature for further details. |
Output | 200 lm. Guidance for specification option: At 700 mA. |
Third party certifications
Certificate of Approval
DECLARATION OF CONFORMITY 10103B
