MINI - Mini Mini Hangers
Verified by manufacturer 11 days ago
MINI/38
MINI/38
Support of short span joists, trap hatches and in-fill timbers in roof space. Designed for fast and economical light duty applications.
Application
- Support of short span joists, trap hatches and in-fill timbers in roof space.
- Designed for fast and economical light duty applications.
- Suitable for trimming around ceiling hatches and other similar light duty applications. Suitable for timber depth up to 100 mm.
Description
Support of short span joists, trap hatches and in-fill timbers in roof space.
Features and benefits:
- Designed for fast and economical light duty applications.
- Suitable for trimming around ceiling hatches and other similar light duty applications.
- Suitable for timber depth up to 100 mm.
- Produced from galvanized steel to BS EN 10346 S250 + G275 as standard, or stainless steel available to order.
- Fix using either Type A or Type B fixings in all pre-punched holes:
- Type A, 30 x 3.75 mm Sheradised Square Twist Nails usually supplied loose for manual fixing.
- Type B, 35 x 3.75 mm Sheradised Square Twist Nails usually collated for nail gun fixing.
General information
Color | Silver |
Finish | Galvanized Stainless steel |
Material | Steel Stainless steel |
Shape | Other |
Length | 40 mm |
Width | 38 mm Guidance for specification option: MINI/38 44 mm Guidance for specification option: MINI/44 47 mm Guidance for specification option: MINI/47 50 mm Guidance for specification option: MINI/50 |
Height | 71 mm 68 mm 67 mm 65 mm |
Uniclass | |
CAWS | G20/65 Joist hangers G20/791 Proprietary joist hangers |
SKU Code | MINI/38, MINI/44, MINI/47, MINI/50 |
Specification data - Joist hangers
Third-party certification | CE Marked. UKCA Marked. |
Format | Joint fixing. Face fixing. |
Material | Galvanized steel to BS EN 10346 S250 + G275. Guidance for specification option: Standard. Stainless steel. Guidance for specification option: To order, consult manufacturer for details. |
Finish | As Material. |
Sizes | 38 x 71 x 40 mm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Steel Stainless steel |
Recyclability | Yes |
Literature
Literature type
BPC Declaration of Performance - CE
BPC Declaration of Performance - UKCA

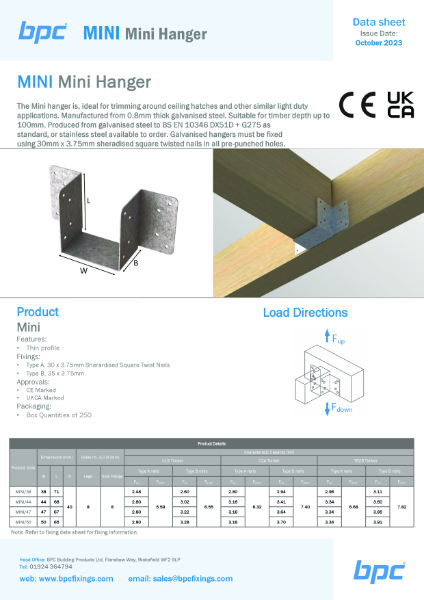

MINI-Mini-Hanger Data Sheet
