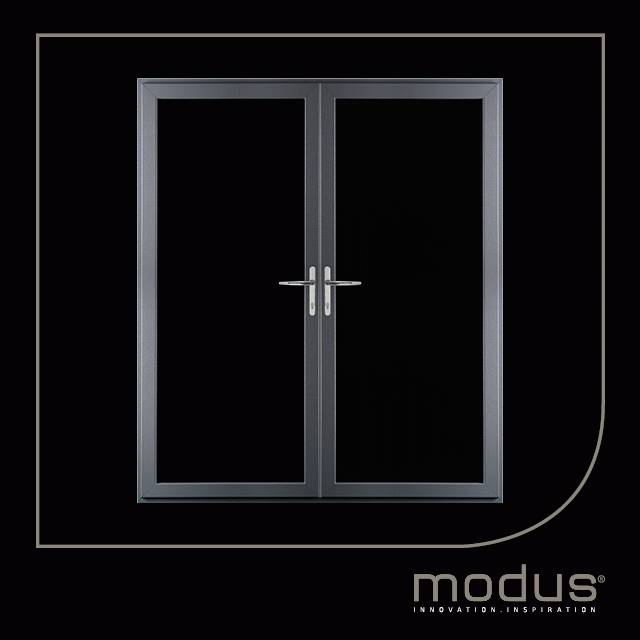

Modus French Doors
Verified by manufacturer 10 days ago
BBA Agrément Certificate
Certificate type
75 mm profile French doors.
Application
Access door for patios, balconies or juliet balcony
Description
Modus is a fully integrated PVC-U window and door system, capable of producing eight different product types from a single system.
Features and benefits:
- It is an innovative 75 mm front to back dimension six-chamber design, utilizing dual material extrusion technology (DMET).
- DMET precisely directs 50% virgin and 50% post-consumer recycled PVC-U into the profile simultaneously, with post-consumer material used only in the core of the profile, so finish quality and colour fastness is uncompromised.
- Modus French doors can be fabricated in a range of styles to suit the building architecture and are available with a PVC-U low threshold to prevent cold bridging.
- Includes 12 year profiles guarantee.
General information
Color | Grey Black Cream |
Finish | Glazed |
Material | PVC-U |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 12 year |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Product range |
Specification data - Unplasticized polyvinyl chloride (PVC-U) doorsets
Third party accreditation | To PAS24:2016. |
Standard | To BS EN 12608, BS EN ISO 9001; BS EN ISO 14001. |
Configuration | Single leaf, open in.Single leaf, open out. |
Performance | |
Intruder resistance | |
Minimum requirement | To PAS 24. |
Application | Both sides. |
Frame | |
Materials | PVC-U. |
Threshold | Standard PVC-U frame threshold.PVC-U low threshold.Guidance for specification option: Can be Part M compliant with the addition of aluminium ramps. |
Perimeter seals or inserts | Manufacturer guidanceSeals and gaskets: Main profiles supplied with integral PVC-U gasket delivering exceptional thermal, weathering and air tightness performance. |
Finish and colour | Black Ash/White.Guidance for specification option: Standard. Anthracite Grey/White.Guidance for specification option: Standard. Slate Grey/White.Guidance for specification option: Standard. Moondust/White.Guidance for specification option: Standard. Anteak/White.Guidance for specification option: Standard. Rosewood/White.Guidance for specification option: Standard. Irish Oak/White.Guidance for specification option: Standard. Cream White/White.Guidance for specification option: Standard. White Ash/White Ash.Guidance for specification option: Standard. White/White.Guidance for specification option: Standard. Quartz Platinum.Guidance for specification option: Architectural. (Metallic finish). Asphalt.Guidance for specification option: Architectural. (Metallic finish). Crown Platin.Guidance for specification option: Architectural. (Metallic finish). Agate Grey.Guidance for specification option: Architectural. (Metallic finish). |
Frame accessories | None.Cavalok cavity closers.Integral fixing lugs.Guidance for specification option: Can be achieved through the frame with fixing lugs or into Cavalok cavity closers. Methods also available for timber framing, flush or check reveals. |
Door leaf | |
Thickness | 75 mm. |
Material | PVC-U. |
Architraves | |
Material | PVC-U. |
Finish | As frame. |
Glazing | |
Type | Double.Guidance for specification option: 28 mm double-glazed insulating unit, glazed internally. U-value: 1.4 W/m²K. Triple.Guidance for specification option: 44 mm triple-glazed insulating unit, glazed internally. U-value: 0.8 W/m²K. |
Hardware | Locking handles.Guidance for specification option: Locking handles are available in a variety of finishes to complement exterior colours. Manufacturer guidanceAccepts hardware from most leading manufacturers, full depth Eurogroove, secure location of hardware. |
Accessories | None.Bay window corner posts.Guidance for specification option: Available in angles of 90–180°. Cavalok cavity closer, 100–300 mm.Cavalok head vent.Extensions.Guidance for specification option: Available in 10, 25 and 50 mm. 50 mm accommodates proprietary trickle ventilators. Slimline coupler. |
Sill | 85 mm. 125 mm. 150 mm. 180 mm. 225 mm. |
Ventilation | Controllable ventiltors. Permanent ventilators. Night ventilators. Overhead ventilators. Manufacturer guidanceControllable or permanent ventilators fitted within the head profile or dedicated overhead ventilators are available as an optional extra. Night vents are also available. Proprietary ventilation systems can be fitted to doors in compliance with Building Regulations (E&W). |
Weathering trims | Head drip. Weather bar. |
Reinforcement | Steel. Manufacturer guidanceGalvanized steel reinforcements in door sashes, optimized for strength with secure hardware fixing. |
Fixing | Fixing lugs. Cavalok cavity closers. Manufacturer guidanceCan be achieved through the frame with fixing lugs or into Cavalok cavity closers. Methods also available for timber framing, flush or check reveals. |
Height | 1800–2300 mm. Guidance for specification option: Insert requirement or type 'As schedule'. |
Width | 1200–2000 mm. Guidance for specification option: Insert requirement or type 'As schedule'. |
FrameType | Fanlight frame. Sidelight frame. Standard frame. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Yes - recommend via Eurocell Closed-Loop Recycling |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Third party certifications
BBA Agrément Certificate
Logik PVC-U Door BBA Certificate 14/5150
