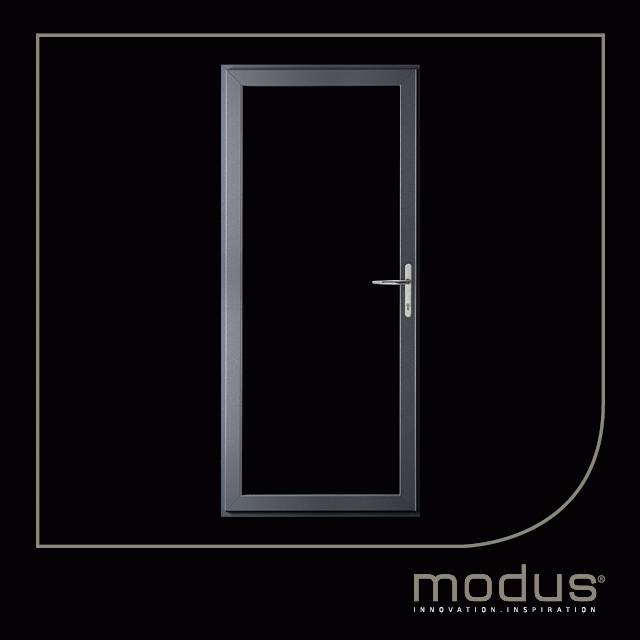

Modus Residential Doors

Verified by manufacturer 6 months ago

Eurocell plc

75 mm profile residential doors.

Jump to:
+44 (0)1773 842100 Website

Application

Residential doors.

Description

Modus is a fully integrated PVC-U window and door system, capable of producing eight different product types from a single system.


Features an benefits:

  • It is an innovative 75 mm front to back dimension six-chamber design, utilizing dual material extrusion technology (DMET).
  • DMET precisely directs 50% virgin and 50% post-consumer recycled PVC-U into the profile simultaneously, with post-consumer material used only in the core of the profile, so finish quality and colour fastness is uncompromised.
  • Modus residential doors can be fabricated in a range of styles to suit the building architecture.
  • Doors are available with a PVC-U low threshold to prevent cold bridging, which is Building Regulations (E&W) Approved Document Part M compliant with the addition of aluminium ramps (available separately).
  • Includes 12 year profiles guarantee.

General information

Color

Black

Cream

White

Grey

Other

Finish

Foil

Material

PVC-U

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

12 year

Uniclass

Pr_30_59_24_92 Unplasticized polyvinyl chloride (PVC-U) doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Product range

Doors

Specification data - Unplasticized polyvinyl chloride (PVC-U) doorsets

Third party accreditation

To PAS24:2016, KM500319, BBA Approved Cert 14/5150.

Standard

To BS EN 12608-1:2016.

Configuration

Single leaf, open in.

Single leaf, open out.

Performance

-

Intruder resistance

-

Minimum requirement

PAS24: 2012.

Guidance for specification option:

Internally glazed as standard, Modus will accept enhanced security glazing specifications. Single doors and coupled sidelights have been assessed to PAS24: 2012. All hardware meets the requirements of BS 7412.

Frame

-

Materials

PVC-U.

Threshold

Standard PVC-U frame threshold.

PVC-U low threshold.

Guidance for specification option:

Can be Part M compliant with the addition of aluminium ramps.

Finish and colour

Black Ash/White.

Guidance for specification option:

Standard.

Anthracite Grey/White.

Guidance for specification option:

Standard.

Slate Grey/White.

Guidance for specification option:

Standard.

Moondust/White.

Guidance for specification option:

Standard.

Anteak/White.

Guidance for specification option:

Standard.

Rosewood/White.

Guidance for specification option:

Standard.

Irish Oak/White.

Guidance for specification option:

Standard.

Cream White/White.

Guidance for specification option:

Standard.

White Ash/White Ash.

Guidance for specification option:

Standard.

White/White.

Guidance for specification option:

Standard.

Quartz Platinum (Metallic finish).

Guidance for specification option:

Architectural.

Asphalt (Metallic finish).

Guidance for specification option:

Architectural.

Crown Platin (Metallic finish).

Guidance for specification option:

Architectural.

Agate Grey.

Guidance for specification option:

Architectural.

Door leaf

-

Thickness

75 mm.

Material

PVC-U.

Architraves

-

Material

PVC-U.

Finish

As frame.

Glazing

-

Type

Double.

Guidance for specification option:

28 mm double-glazed insulating unit, glazed internally. U-value: 1.3 W/m²K.

Triple.

Guidance for specification option:

44 mm triple-glazed insulating unit, glazed internally. U-value: 0.8 W/m²K.

Beading

Internal.

Guidance for specification option:

Internally glazed as standard.

Hardware

Locking handles.

Manufacturer guidance

Accepts hardware from most leading manufacturers, full depth Eurogroove, secure location of hardware.


Locking handles are available in a variety of finishes to complement exterior colours.

Perimeter seals

-

Manufacturer guidance

Seals and gaskets: Main profiles supplied with integral PVC-U gasket delivering exceptional thermal, weathering and air tightness performance.

Accessories

None.

Bay window corner posts.

Guidance for specification option:

Available in angles of 90–180°.

Cavalok cavity closer, 100–300 mm.

Cavalok head vent.

Extensions.

Guidance for specification option:

Available in 10, 25 and 50 mm. 50 mm accommodates proprietary trickle ventilators.

Slimline coupler.

Ventilation

Controllable ventilators.

Permanent ventilators.

Overhead ventilators.

Night ventilators.

Manufacturer guidance

Controllable or permanent ventilators fitted within the head profile or dedicated overhead ventilators are available as an optional extra. Night vents are also available. Proprietary ventilation systems can be fitted to doors in compliance with Building Regulations (E&W).

Weathering trims

Head drip.

Weather bar.

Fixing

Fixing lugs.

Cavalok cavity closers.

Manufacturer guidance

Can be achieved through the frame with fixing lugs or into Cavalok cavity closers. Methods also available for timber framing, flush or check reveals.

Glazing options

Not required.

Georgian bars.

Leaded glass.

Patterned glass.

Sill

85 mm.

125 mm.

150 mm.

180 mm.

225 mm.

Reinforcement

Galvanized steel.

Guidance for specification option:

Galvanized steel reinforcements in door sashes, optimized for strength with secure hardware fixing.

Height

1800–2300 mm.

Guidance for specification option:

Insert requirement or type 'As schedule'.

Door width

800–1050 mm.

Guidance for specification option:

Insert requirement or type 'As schedule'.

FrameType

Standard.

Fanlight.

Sidelight.

Mullion/ transom depth

70 mm.

85 mm.

Ironmongery

Flag or butt hinges.

Locking handles

Shootbolts.

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

Yes - recommend via Eurocell Closed-Loop Recycling

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

50 %
