Moralt FERRO Firesafe 68 mm - Door Blank
Verified by manufacturer 1 month ago
FireSafe Akustik
FireSafe Akustik
Fire resistant door blanks.
Application
Suitable for external doors.
Description
68 mm thick, FERRO FireSafe house door blanks for fire resistant external doors.
Features and benefits:
- CE marked.
- Five-ply faces.
- Patented flat steel stabilizer – thermally separated and sound insulated – to absorb tractive and shearing forces. Stabilizers are glued and friction-locked with the framework.
- Laminated core.
- Certified single leaf.
- FD30 fire rating in accordance with BS 476-22.
General information
Color | Brown |
Finish | Sanded |
Material | Timber Medium density fibreboard (MDF) |
Shape | Rectangle |
Width | 1230 mm |
Height | 2110 mm 2240 mm 2370 mm 2470 mm |
Uniclass | |
CAWS | L20/230 Wood flush doors L20/20 Wood flush doors |
Specification data - Wood flush door leaves
Standard | To EN 14351-1. |
Format | Single-leaf, single-action. |
Thickness | 68 mm. |
Door leaf size | 1370 x 1230 mm.2110 x 1230 mm.2240 x 1230 mm.2470 x 1230 mm. |
Performance | |
Fire resistance | |
Insulation | To BS 476-22, 30 minutes. |
Acoustic performance | To EN ISO 717-1, 42–47 Rwᵖ(dB). |
Thermal | To EN ISO 10077-2:2012-06, 1.2–0.9 W/m²K. |

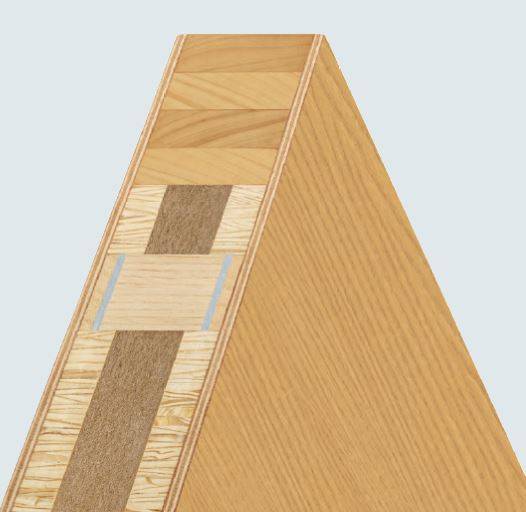

Door structure | Sandwich construction of laminated core (spruce) and ecological wood fibre insulation. |
Facings | Mahogany.Okoumé/ Gabun.Meranti.Oak.Knotty oak.Cross-grain knotty oak 3.5 mm.Rustic knotty oak.Pine.Spurce.Larch.Knotty larch.White fir.Paint-grade.MDF exterior.CPL. |
Hardware | Flat steel stabilizer.Guidance for specification option: Thermally separated and sound insulated – to absorb tractive and shearing forces. Stabilizers are glued and friction-locked with the framework. |
Finish | Sanded. |
Colour | |
External | Manufacturer guidanceConsult manufacturer and insert requirements. |
Internal | Manufacturer guidanceConsult manufacturer and insert requirements. |
Accessories | Not required.Glass apertures.Guidance for specification option: Minimum distance for glass apertures on all four sides: 180 mm. Contact manufacturer for details. |
Weight | 88–121 kg. |
Framing | Finger-jointed and laminated timber framing. |
Bonding | AW bonding according to DIN 68705 -2. Guidance for specification option:
Manufacturer guidanceFull surface bonding with the overall construction, free of formaldehyde. |
Frame width | 127 mm. Guidance for specification option:
Manufacturer guidanceThe frame width corresponds to the shortening dimension. When trimmed by a maximum (75 mm) at the bottom side, a single rebate (max. 18 mm) or fitting of drop down seal is possible. |
Burglar resistance | To DIN EN 1627, RC2. To DIN EN 1627, RC3. |
ConstructionToleranceClass | To DIN EN 12219, class 3. |
