MOY HARDROCK® Multi-Fix (DD) - Mineral Wool Insulation

Verified by manufacturer 1 month ago

MOY

High density, non-combustible thermal insulation board.

Jump to:
+44 (0)1245 707 449 Website

Application

  • Lightweight flat roof systems.
  • Compatible with a wide range of MOY adhered and mechanically fixed waterproofing systems - including bitumen, single-ply and liquid membranes, as well as green roof systems.

Description

MOY HARDROCK® Multi-Fix (DD) is a high density, non-combustible thermal insulation board which has also been tested for acoustic applications and fire resistance. It has been proven to improve the ability of lightweight flat roof systems to control both noise ingress and egress through the building envelope. Also available as a tapered insulation system, to create the fall in the roof (MOY HARDROCK® Multi-Fix (DD) Tapered).


Features and benefits:

  • Stone wool insulation board faced with a mineral-coated white fleece.
  • Compatible with most MOY roofing systems.
  • Presents no smoke hazard, and will not contribute to fire growth in any stages of a fire (including the fully developed stage of a fire).
  • Deemed to be non-combustible in accordance with UK building regulations.
  • LPCB approved to highest classification, LPS1181: Part 1 EXT – A rated constructions.
  • Excellent acoustic reduction, absorption and impact (rain noise) performance.
  • Solutions to meet all BB93 (Education) and HTM08- 01 (Healthcare) acoustic requirements.
  • Acoustic solutions provide opportunity for additional BREEAM points.
  • Dimensionally stable.
  • Consistent thermal performance with no blowing agents.
  • Zero ODP and GWP.
  • Can be recycled and reprocessed, reducing landfill and costs.
  • Also available as a tapered insulation system, to create the falls in the roof (MOY HARDROCK® Multi-Fix (DD) Tapered).
  • BBA certified, FM approved, CE and UKCA marked.

General information

Color

Beige

Finish

Coated

Guidance for specification option:

Mineral-coated white fleece.

Material

Stone wool

Mineral wool

Shape

Rectangle

Length

1200 mm

Width

1000 mm

Height

Manufacturer guidance

HARDROCK® Multi-Fix (DD) thicnkesses.

Warranty description

-

Manufacturer guidance

For the duration of the MOY System Warranty.

Uniclass

Pr_25_57_06_56 Mineral wool slab insulationPrimary

CAWS

H31/271 Mineral wool thermal insulation

H31/50 Mineral wool thermal insulation

J31/23 Mineral wool insulation

J31/334 Mineral wool insulation

Specification data - Mineral wool slab insulation

Standard

To BS EN 13162.

Thickness

60 mm.

85 mm.

105 mm.

115 mm.

150 mm.

Guidance for specification option:

HARDROCK® Multi-Fix (DD) and HARDROCK® Underlay Slab for multi-layer systems (DD).

185 mm.

Facing

Mineral-coated white fleece.

Edges

Square.

Density

-

Manufacturer guidance

3.5 kg/m² at a thickness of 100 mm.

Thermal conductivity (maximum)

0.039 W/mK.

Compressive strength (minimum)

Typically exceeds 70 kPa at 10% compression.

Fire performance

Class A2-s1, d0.

Guidance for specification option:

  • Euroclass rating: A2-s1, d0 (HARDROCK® Multi-Fix (DD)).
  • Euroclass rating: A1 (HARDROCK® Multi-Fix (DD) Underlay Slab).

Board size (l x w)

1200 x 1000 mm.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

Can be recycled and reprocessed

Literature

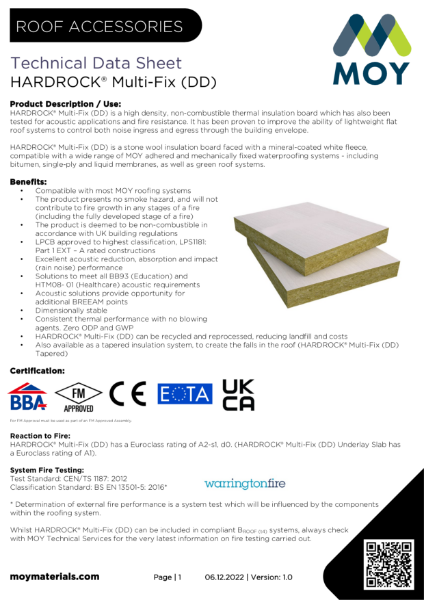

MOY HARDROCK® Multi-Fix (DD)
