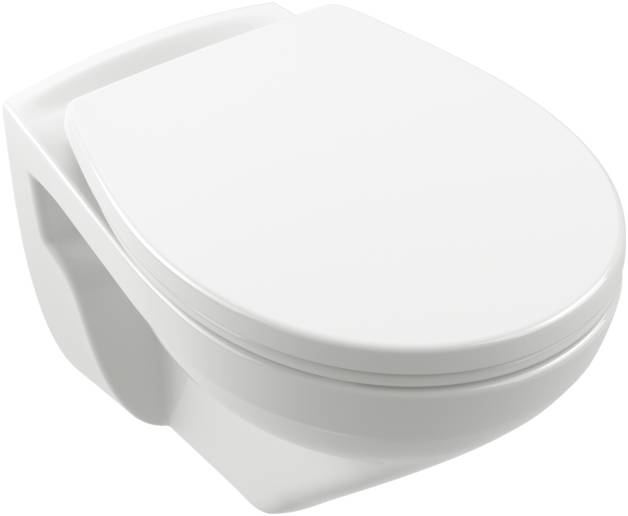

Newo Washdown WC Wall-Mounted 4693R0
Verified by manufacturer 9 months ago
Rimless, washdown toilet.
Application
Suitable for washdown toilet.
Description
Rimless, washdown toilet.
Features and benefits:
- Washdown flush.
- Sanitary ceramics.
- Not suitable for installation with flush valves.
- EAN number: 4062373895115.
- LEED 4.
- Please order toilet seat separately.
General information
Color | White |
Finish | Sheen |
Material | Ceramic Guidance for specification option: Sanitary ceramics |
Shape | Other |
Length | 540 mm |
Width | 360 mm |
Height | 350 mm |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Specification data - WC pans
Form | Wall-mounted, washdown. |
Pan height | 350 mm. |
Materials | |
Body | Ceramic.Guidance for specification option: Sanitary ceramics. |
Finish and colour | White alpine, shiny. |
Water supply, outlet and seat holes | |
Water supply | Back inlet. |
Outlet | Horizontal. |
Weight | 16 kg. |
Width | 360 mm. |
Depth | 540 mm. |
Outlet | Horizontal. |
Accessories | Not required. 8M59S101 - Newo toilet seat. 8M596101 - Newo toilet seat. |
Flush volume | 3/ 4.5 L. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
 ARCHICAD | - | 1 |
 OBJ | - | 1 |
 SketchUp | - | 1 |
 3Ds Max | - | 1 |
