NVELOPE® Rainscreen Sub Frame System - NH3 - Rainscreen Cladding System
Verified by manufacturer 9 days ago
NH3
NH3
BBA Agrément Certificate
Certificate type
EPD
Certificate type

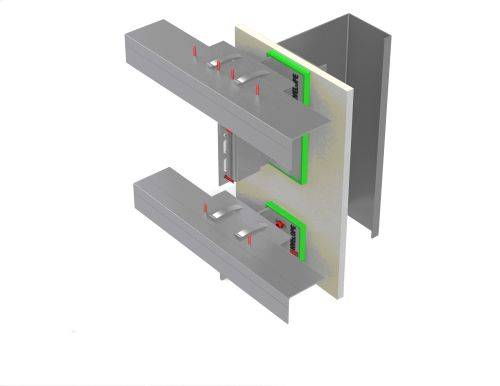

Aluminium secondary support carrier system utilizing helping hand brackets, horizontal ‘L’ profiles and NVELOPE® ‘back frame’.
Application
Can be used to support short width cladding panel vertical elements, therefore giving the opportunity to design varied architectural facades where previously design and dimensional restrictions applied. Suitable for face-fixed and adhesive-fixed applications.
Description
Horizontal aluminium sub frame system for rainscreen applications with helping hand system.
Features and benefits:
- NH3 is the NVELOPE® ready to install out of the box back frame for horizontal cladding applications, suitable for when the cladding panel is of short width.
- The NVELOPE® NH3 with nine bracket sizes has an improved load capacity, and includes the NVELOPE® helping hand slot, which allows adjustment of the horizontal 'L' profile.
- The NVELOPE® aluminium 6005 horizontal extruded ‘L’ profile is secured into the NH3 bracket through fixed or sliding points.
- NVELOPE® helping hand brackets absorb wind loading and allow for expansion, contraction, and the linear effect of thermal movement.
- Fixed-point brackets absorb dead loads when used with specified SFS fixings.
General information
Finish | Anodized Mill Powder-coated |
Material | Aluminium |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year Guidance for specification option: Up to 25 years - consult manufacturer. |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specification data - Aluminium carrier rails
Standards | EN 1090-3:2008; Eurocode 9 Pt 1-4. |
Factory finish | Mill. |
Thermal break | Isolator only. |
Material/ Finish | Aluminium alloy 6005 T6; mill aluminium standard finish. Guidance for specification option: Anodized and powder coating option, consult manufacturer. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 9.59 kg CO₂ eq/kg |
Recyclability | 6005 aluminium fully recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
