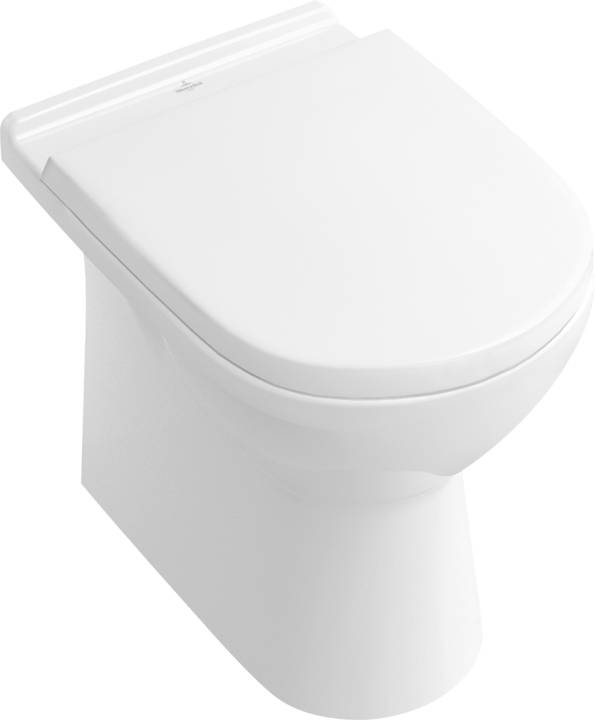

O.novo Washdown WC, Horizontal Outlet 565710

Verified by manufacturer 8 months ago

Villeroy & Boch AG

Floor mounted, back to wall WC pan.

Jump to:
BOS
+49 (0) 6864 81 1500 Website

Application

Suitable for floor mounted, back to wall WC pan.

Description

Floor mounted, back to wall WC pan.


Features and benefits:

  • Sanitary ceramics.
  • with fastening set for concealed fastening.
  • * P1 is only available for WC-Seat ViCare.
  • Complies with EN 997.
  • LEED 4.
  • European water label 3,375 L.
  • With water-saving AQUAREDUCT® system: flush volume 3/ 4.5 litres.
  • Horizontal outlet.
  • Vertical outlet possible with Vario drainbend.
  • Please order toilet seat separately.

General information

Color

White

Material

Ceramic

Guidance for specification option:

Sanitary ceramics

Shape

Oval

Width

360 mm

Uniclass

Pr_40_20_93_94 WC pansPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC pans

Standard

To BS EN 997.

Form

Floor-mounted, back to wall.

Pan height

400 mm.

Materials

-

Body

Ceramics.

Guidance for specification option:

Sanitary ceramics.

Finish and colour

White.

Water supply, outlet and seat holes

-

Outlet

Horizontal.

Integral accessories

Toilet seat and cover (9M38Si).

Toilet seat and cover (9M3961).

Toilet seat and cover ViCare (9M67S1).

Seat (9M7161).

Weight

21.8 kg.

Width

360 mm.

Depth

560 mm.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
SketchUp
-

1

IFC
-

1

3Ds Max
-

1

Revit
-

1

OBJ
-

1

ARCHICAD
-

1
