Open State Cavity Barrier (OSCB) - Ventilated cavity barrier

Name: Open State Cavity Barrier (OSCB) - Ventilated cavity barrier
Brand: ARC Building Solutions Limited
SKU: h6ka3EsWzDu5iiJ8dChQDe

Verified by manufacturer 13 days ago

OSCB44

ARC Building Solutions Limited

Third party certifications:

IFCC
Certificate type

Open state cavity barrier for ventilated cavities.

Jump to:

BOS

+44 (0)113 2529428 Website

Application

Suitable for installation horizontally.
The cavity barrier must run continuously and uninterrupted apart from where it abuts the vertical cavity barrier. It must not be penetrated by other elements including mechanical or electrical services.

Description

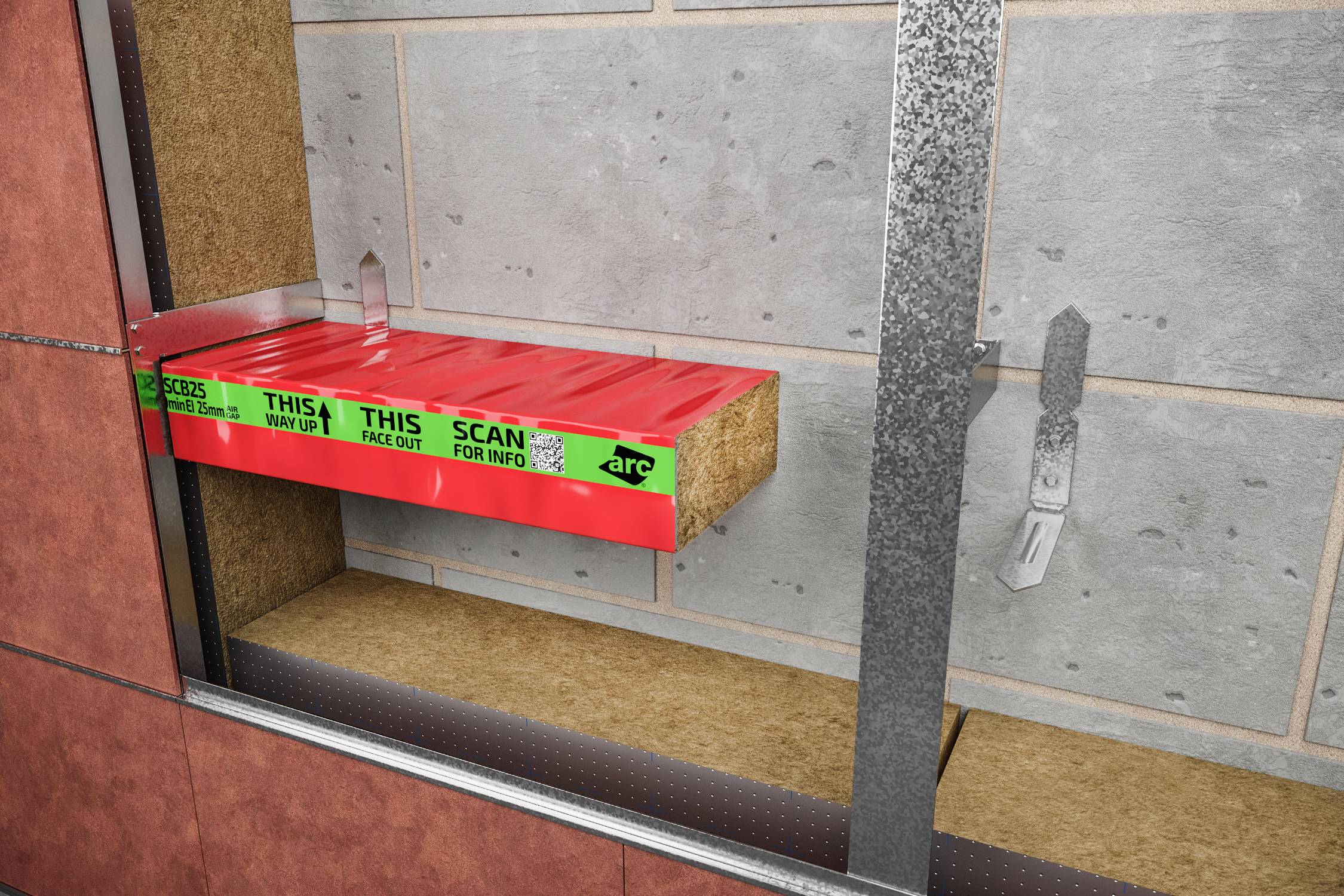

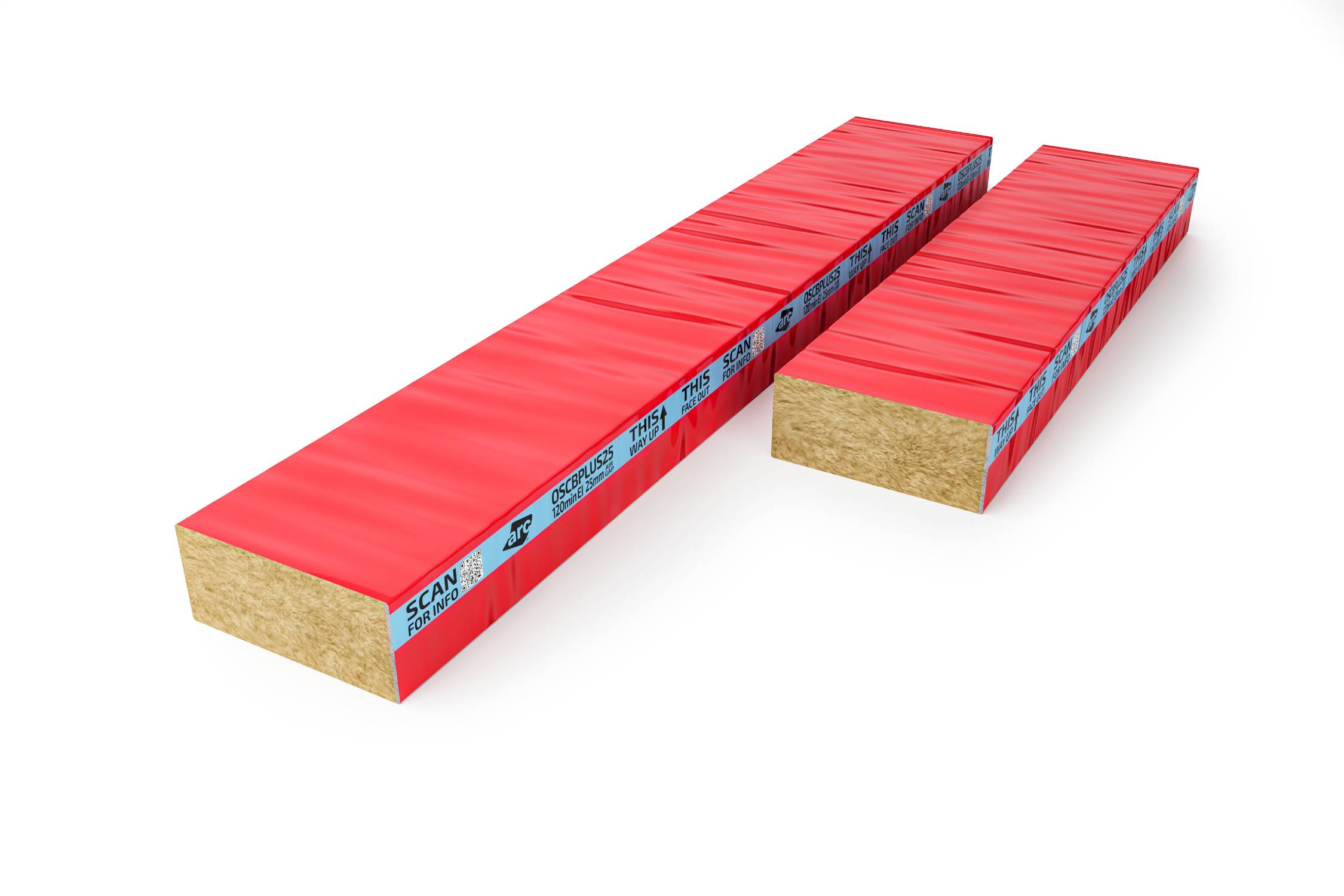

Cavity barriers designed for installation within cavities where ventilation is required in service use. Manufactured from non-combustible rockfibre mineral wool with a reactive intumescent layer, the cavity barrier can provide an air gap of up to either 25 or 44 mm. The intumescent layer will rapidly expand when exposed to heat in a fire event, closing off the air gap and preventing vertical fire spread within the external wall cavity.

Features and benefits:

Reactive intumescent element.
Either 60 minutes or 120 minutes fire integrity.
25 mm or 44 mm air gap for ventilated cavity.

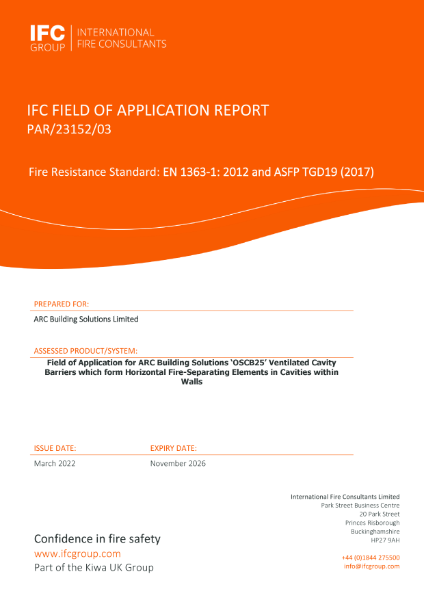

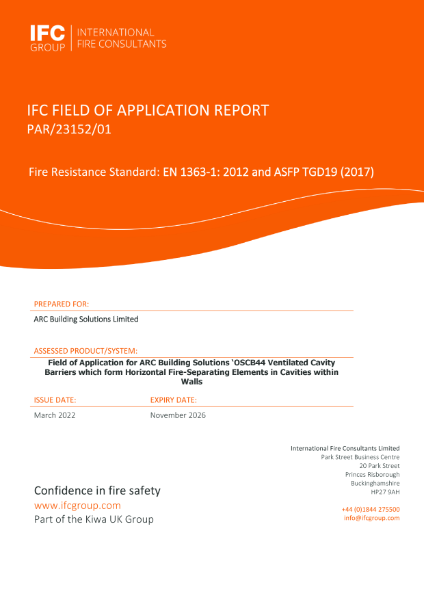

Tested for ASFP TGD19 standards.
Fixing brackets included as standard.

ARC OSCB open state cavity barriers should be partnered with ARC Fire Stop Slab installed vertically for a complete cavity barrier solution.

General information

Color	Red Guidance for specification option: With: Green strip. Blue strip. Yellow strip.
Finish	Film
Material	Mineral wool Guidance for specification option: Rock fibre mineral wool.
Shape	Rectangle
Length	1200 mm
Width	Bespoke Guidance for specification option: 100–450 mm.
Height	82 mm

Uniclass	Pr_25_80_81_51 Mineral wool fire-stoppingPrimary
CAWS	P12/360 Mineral wool rigid batts P12/40 Mineral wool rigid batts

Specification data - Mineral wool fire-stopping

Fire performance	60 minutes integrity and insulation.

Widths	Guidance for specification option: Insert requirements. Manufacturer guidance Cavity widths.
Colours	Red with yellow strip.
Gap	44 mm maximum air gap.
Length	1200 mm.
Thickness	82 mm.
Cavity width	- Manufacturer guidance 100–300 mm. Insert requirements.
Fixing method	ARC OSCB fixing bracket only.

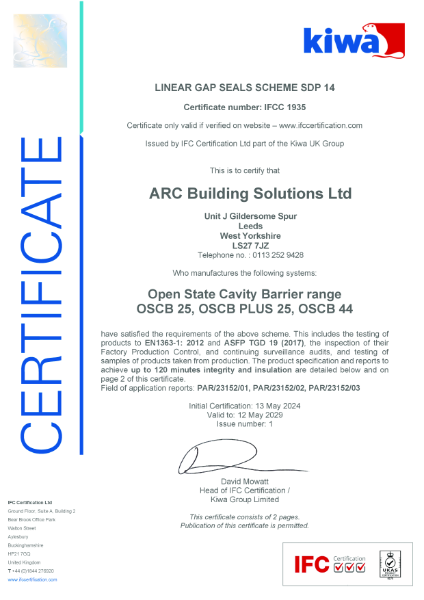

Third-party certification	ISOQAR and UKAS.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Mineral wool Guidance for specification option: Rock fibre mineral wool.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
