Fire Stop Strip - Fire-rated void filler for masonry

Name: Fire Stop Strip - Fire-rated void filler for masonry
Brand: ARC Building Solutions Limited
SKU: nZt1nb7VEr7SambAX9MDNC

Verified by manufacturer 13 days ago

ARC Building Solutions Limited

Third party certifications:

IFCC
Certificate type

Fire-rated void filler for masonry construction

Jump to:

+44 (0)113 2529428 Website

Application

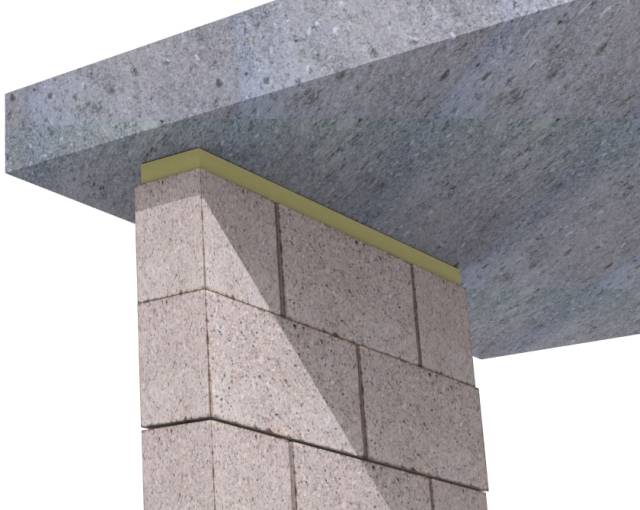

For filling in voids and expansion joints in masonry construction. Designed to prevent the passage of smoke and flames through narrow voids in the construction, offering up to four hours fire integrity when installed between masonry or concrete. Possible applications include: top of masonry walls under the soffit, above partitions, expansion joints, and between ceilings and walls.

Description

Fire-rated void filler designed to prevent the passage of smoke and flames through narrow voids in the construction, offering up to four hours' fire integrity when installed between masonry or concrete. Possible applications include: top of masonry walls under the soffit, above partitions, expansion joints, and between ceilings and walls.

It is easily installed, simply push-fitting into the void to create a friction fit. No adhesive or mastic is required.

Features and benefits:

Up to four hours fire integrity.
Ideal for closing voids at the top of masonry walls.
Suitable for both vertical and horizontal applications.
Excellent acoustic properties.
Robust detail compliant.
Third-party certificated by IFC.

General information

Material	Rock fibre mineral wool
Length	1200 mm
Width	100 mm 140 mm
Height	10 mm 15 mm 20 mm 25 mm 30 mm 40 mm 50 mm Show more

Uniclass	Pr_25_80_81_51 Mineral wool fire-stoppingPrimary
CAWS	F30/18 Cavity closers F30/180 Cavity closers

Specification data - Mineral wool fire-stopping

Material	-
Type	FSS100/10 – 10 x 100 x 1200 mm. FSS100/15 – 15 x 100 x 1200 mm. FSS100/20 – 20 x 100 x 1200 mm. FSS100/25 – 25 x 100 x 1200 mm. FSS100/30 – 30 x 100 x 1200 mm. FSS100/40 – 40 x 100 x 1200 mm. FSS100/50 – 50 x 100 x 1200 mm. FSS140/10 – 10 x 140 x 1200 mm. FSS140/15 – 15 x 140 x 1200 mm. FSS140/20 – 20 x 140 x 1200 mm FSS140/25 – 25 x 140 x 1200 mm. FSS140/30 – 30 x 140 x 1200 mm. FSS140/40 – 40 x 140 x 1200 mm. FSS140/50 – 50 x 140 x 1200 mm.
Fire performance	To BS 13501-1, Euroclass A1.
