Over Fascia Vent - Eaves Ventilator Strip

Verified by manufacturer 2 months ago

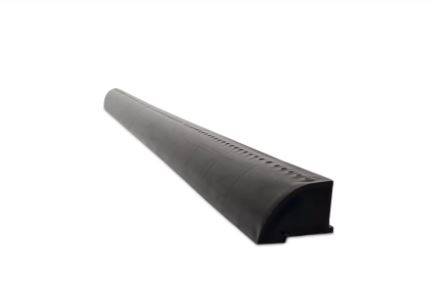

HD 12000M - Over Fascia Vent

Hambleside Danelaw Ltd Variant:

Over fascia vent, with 10 000mm² or 10 000 and 25 000 mm² airflow.

Jump to:
+44 (0)1327 701900 Website

Application

Provides discreet roofspace ventilation at the lowest level of the roofline. For both new build and refurbishment projects.

Description

Over fascia vent, which provides a through-flow of ventilating air over the fascia board for both new build and roof refurbishment requirements.


Features and benefits:

  • Complies with BS 5250 airflow area requirements.
  • Conforms to standard grille regulation requirements, preventing the ingress of birds and large insects.
  • Rounded front sections prevent the blocking of airflow from overlapping underlay.
  • Unique two-stepped fixing position on HD 12000U allows for use on roofs above and below 15° pitch or warm roof applications.

General information

Color

Black

Material

Polypropylene

Shape

Other

Length

1000 mm

Width

33 mm

48 mm

Height

19 mm

36 mm

Warranty description

20 year

Uniclass

Pr_30_59_94_26 Eaves fascia grillesPrimary

CAWS

H61/47 Eaves

H62/47 Eaves

H65/47 Eaves

H60/365 Detailing at eaves

H62/345 Ventilated eaves with integrated grilles tray

H61/345 Ventilated eaves with integrated grilles/ trays

H60/345 Ventilated eaves with integrated grilles/ trays

H65/345 Ventilated eaves – integrated grilles/ trays

Specification data - Eaves fascia grilles

Style

Fixed to top of fascia.

Ventilation opening

10 000 mm²/ m.

Colour

Black.

Size:

1000 x 33 x 10 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

50 %

Guidance for specification option:

Contains up to 50% recycled PPC.

Literature

Eaves and Soffit Vents Datasheet

Eaves and Soffit Vents Datasheet
