Panelling | Frameduct - 100 mm Base Rail with Locks - Duct Panelling System
Verified by manufacturer 2 months ago
ColourCoat
ColourCoat

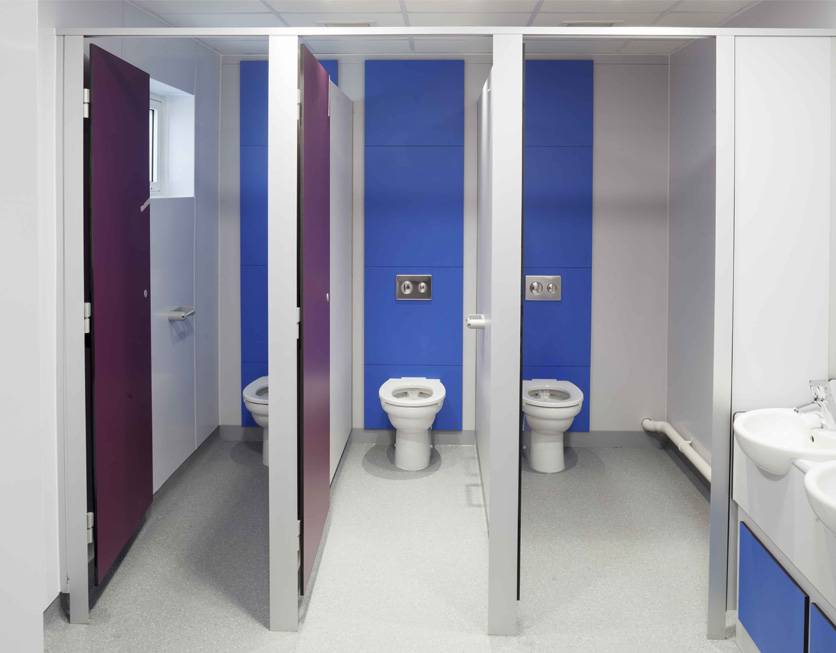

Ready-to-install, metal-framed, non-plumbed washroom panelling system, with locks.
Application
Suitable for all washroom environments.
Description
Non-plumbed, framed wall panelling system, giving you the flexibility to choose and install your sanitaryware.
Features and benefits:
- Hinged access panel using riveted linear-bearing hinges in zinc-plated steel and nylon with riveted panel ratchets in zinc-plated steel allowing 10 different opening heights.
- Subframe tie-back system using M8 zinc-plated steel tie-back rods and supporting bracketry in zinc-plated steel.
- Riveted slider brackets in nylon allow the top panel to rise and fall where a mid-mounted panel is hinged.
- Riveted push-pull clips where applicable to allow bottom panels to be removed.
- Micro panel lock in polished stainless steel to provide a tamper-proof security fixing to the duct panels.
- Integrated factory-fitted WC carrier in 26 mm SGL for wall hung WCs.
This product is not to be used as Urinal ducting when specified in ColourCoat, High Gloss or Veneer.
General information
Color | Black Blue Cream Green Grey |
Finish | Primed Gloss Veneered Lacquered Galvanized |
Material | MFC Solid grade laminate (SGL) Aluminium Nylon Medium density fibreboard (MDF) |
Length | 13 mm 18 mm |
Uniclass | |
CAWS | K32/15 Duct/ wall lining panels K32/150 Duct/ wall linings – panels and proprietary frames K32/160 Duct linings – preplumbed panels and proprietary frames |
Product range |
Specification data - Pre-plumbed installation frames
Materials | Aluminium, nylon, steel, MDF. |
Panel | High performance medium density 720 kg/m³ grade fibreboard (MDF). Guidance for specification option: Panel sections fitted to subframe with zinc plated steel clips with butt joints fitted with zinc plated steel dowel clips and mating nylon dowel-docks. |
Thickness | 18 mm nominal. |
Edge treatment | One coat of primer, finished with pigmented polyurethane lacquer. |
Flashgaps | High performance melamine faced chipboard selected from the standard Venesta colour range. ColourCoat finished high performance medium density 720 kg/m³ grade fibreboard (MDF) with polyurethane lacquer from the standard Venesta ColourCoat range. ColourCoat finished high performance medium density 720 kg/m³ grade fibreboard (MDF) with polyurethane lacquer in any RAL colour. Manufacturer guidanceInsert flashgap options. |
Framing | Extruded aluminium base and headrail sections and rolled galvanized ultra steel wall channels. |
Base rails | 100 mm high powder coated two part aluminium baserail to secure subframe units. |
Sub frame | Rolled galvanized ultra steel subframe with riveted aluminium bracing bars, fitted to site frame with nylon click-fix locator brackets. |
Colour/ Finish | Purple (RAL4006). Red (RAL3000). Orange (RAL2008). Yellow (RAL1023). Green (Pantone 382). |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | MFC Solid grade laminate (SGL) Aluminium Nylon Medium density fibreboard (MDF) |
