Panelling | Frameduct HPL Square Edged - Duct panelling system
Verified by manufacturer 1 month ago

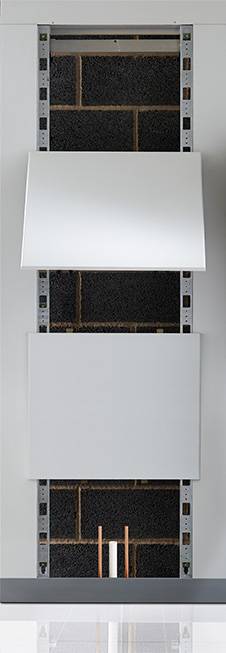

Frameduct HPL Square Edge with locks
Frameduct HPL Square Edge with locks
Square-edged HPL faced non-plumbed washroom panelling system.
Application
Suitable for any dry washroom environment.
Description
Square-edged HPL faced non-plumbed washroom panelling system.
Features and benefits:
- Hinged access panel using riveted linear-bearing hinges in zinc plated steel and nylon with riveted panel ratchets in zinc plated steel allowing 10 different opening heights.
- Subframe tie-back system using M8 zinc plated steel tie-back rods and supporting bracketry in zinc plated steel.
- Riveted slider brackets in nylon to allow the top panel to rise and fall where a mid-mounted panel is hinged.
- Riveted push-pull clips where applicable to allow bottom panels to be removed.
General information
Color | Black Blue Cream Green Grey |
Finish | Laminated |
Material | High pressure laminate (HPL) Aluminium Steel Nylon Zinc |
Length | 18 mm |
Uniclass | |
CAWS | K32/15 Duct/ wall lining panels K32/150 Duct/ wall linings – panels and proprietary frames K32/160 Duct linings – preplumbed panels and proprietary frames |
Product range |
Specification data - Pre-plumbed installation frames
Materials | High pressure laminate, extruded aluminium, galvanized steel, moisture resistant chipboard, zinc plated steel, nylon. |
Panel | 660 kg/m³ grade moisture resistant chipboard faced each side with high pressure laminate (HPL). Guidance for specification option: Panel sections fitted to subframe with zinc plated steel clips with butt joints fitted with zinc plated steel dowel clips and mating nylon dowel-docks. |
Thickness | 18 mm nominal. |
Edge treatment | 1 mm nominal matching ABS. 1 mm nominal contrasting ABS. |
Flashgaps | Melamine faced 660 kg/m³ grade moisture resistant chipboard (MFC). |
Framing | Extruded aluminium base and headrail sections and rolled galvanized ultra steel wall channels. |
Base rails | 100 mm high powder coated two part aluminium baserail to secure subframe units. |
Sub frame | Rolled galvanized ultra steel subframe with riveted aluminium bracing bars, fitted to site frame with nylon click-fix locator brackets. |
Colour/ Finish | Rouge (VEN324 | LRV 17). Papaya (VEN370 | LRV 35). Golden (VEN366 | LRV 52). Canary (VEN365 | LRV 65). Lime (VEN354 | LRV 54). |
Locks | With locks. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | High pressure laminate (HPL) Aluminium Steel Nylon Zinc |
