Panic Bar (PBE001)

Verified by manufacturer 10 months ago

Abloy UK

Exit door panic bar for solid or narrow profile panic exit doors.

Jump to:
+44 (0)1902 364500 Website

Application

Suitable for solid or narrow profile panic exit doors.

Description

Exit door panic bar for mechanical and electromechanical lock cases, tested and certified to EN 1125.


Features and benefits:

  • Panic bar available in satin chrome finish.
  • Standard length of the bar is 900 mm.
  • Several alternative finishes available for the fittings.

General information

Color

Silver

Finish

Chrome

Satin

Guidance for specification option:

Chrome.

Brushed

Guidance for specification option:

Nickel.

Antimicrobial

Guidance for specification option:

Coating - ACTIVE Val/ Mus/ Har/ Gra.

Material

Steel

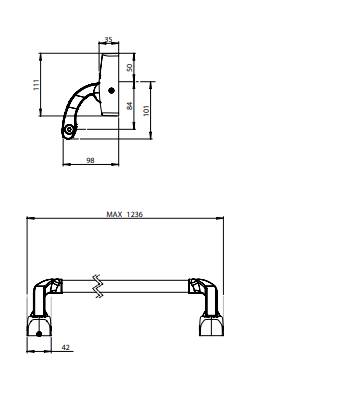

Size

Guidance for specification option:

Standard length of bar.

Length

98 mm

Width

900 mm

Height

111 mm

Uniclass

Pr_30_36_08_63 Panic exit devicesPrimary

CAWS

P21/32 Panic exit devices

P21/577 Panic exit devices

Specification data - Panic exit devices

Standard

To BS EN 1125.

Classification grades (minimum)

-

Suitability for use on fire and smoke doors

To BS EN 1125, grade 1.

Material and finish

Chrome plated steel.

Satin chrome plated steel.

Brushed nickel plated steel.

Antimicrobial coating, steel.

Guidance for specification option:

ACTIVE - Val/ Mus/ Har/ Gra.

Colour

Self-coloured.

Execution

Fasteners for hardware.

Product Reference

Panic Bar (PBE001)
